F100BET – section 12 GENERATOR parts diagram

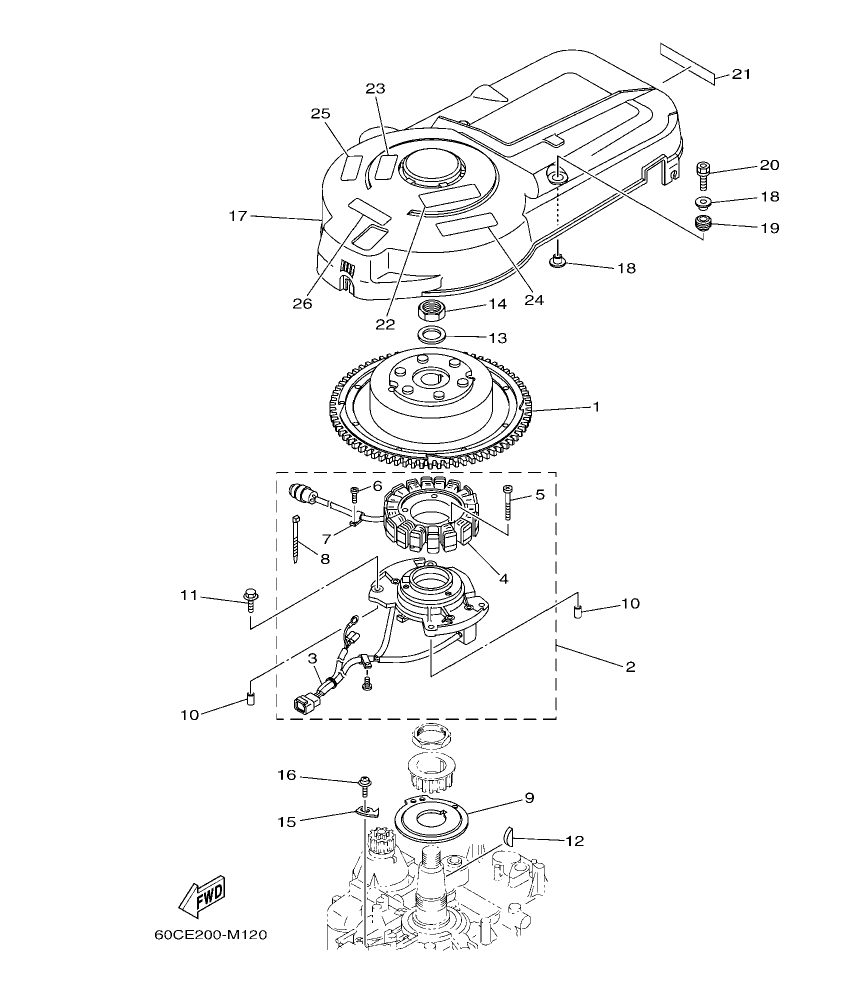

Diagram for section 12: GENERATOR.

Ref Part No. Qty Buy
1
67F–85550–00
ROTOR ASSY
 1 Ask on WhatsApp
2
67F–85560–01
BASE ASSY
 1 Ask on WhatsApp
3
67F–85580–00
.COIL, PULSER
 1 Ask on WhatsApp
4
67F–85510–01
.STATOR ASSY
 1 Ask on WhatsApp
5
63D–81345–20
.SCREW, WITH WASHER (M6X30)
 3 Ask on WhatsApp
6
97607–04110
.SCREW, WITH WASHER
 1 Ask on WhatsApp
7
445–81328–20
.CLAMP
 1 Ask on WhatsApp
8
66T–81328–00
.CLAMP
 1 Ask on WhatsApp
9
67F–81673–10
ROTOR
 1 Ask on WhatsApp
10
99530–08012
PIN, DOWEL
 2 Ask on WhatsApp
11
97595–06630
BOLT, WITH WASHER
 4 Ask on WhatsApp
12
90280–05015
KEY, WOODRUFF
 1 Ask on WhatsApp
13
90201–24014
WASHER, PLATE
 1 Ask on WhatsApp
14
90179–24002
NUT
 1 Ask on WhatsApp
15
6D8–81332–00
PLATE, TIMING
 1 Ask on WhatsApp
16
97985–06210
SCREW, WITH WASHER
 1 Ask on WhatsApp
17
67F–81337–01
COVER, FLYWHEEL
 1 Ask on WhatsApp
18
90387–06M71
COLLAR
 4 Ask on WhatsApp
19
90480–15M31
GROMMET
 2 Ask on WhatsApp
20
90119–06M92
BOLT, WITH WASHER
 2 Ask on WhatsApp
21
68V–13437–62
MARK, CAUTION
 1 Ask on WhatsApp
22
6EE–81995–40
LABEL, WARNING
 1 Ask on WhatsApp
23
6EE–81995–50
LABEL, WARNING
 1 Ask on WhatsApp
24
6EE–81994–40
LABEL, SAFETY
 1 Ask on WhatsApp
25
6EE–81994–50
LABEL, SAFETY
 1 Ask on WhatsApp
26
6AG–81996–00
MARK
 1 Ask on WhatsApp
