F100BET

Section 27: STEERING GUIDE (v2)

Engine sections in this catalog

SCHEDULED SERVICE PARTS FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 STARTING MOTOR BOTTOM COWLING CONTROL BRACKET 1 TOP COWLING BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE REMOTE CONTROL BOX REMOTE CONTROL ASSY CYLINDER & CRANKCASE 1 METER OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 REPAIR KIT 2 REPAIR KIT 3 CRANKSHAFT & PISTON CYLINDER & CRANKCASE 2 VALVE INTAKE CARBURETOR 1 CARBURETOR 2

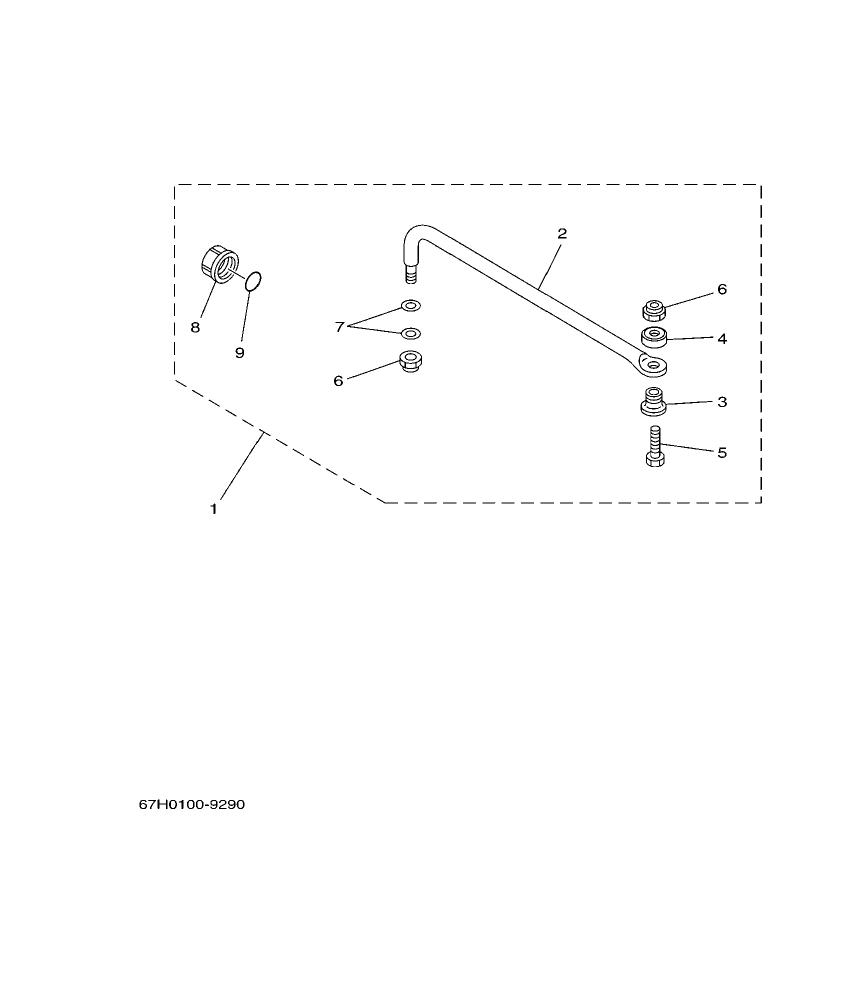

F100BET – section 27 STEERING GUIDE parts diagram

Diagram for section 27: STEERING GUIDE.

Ref	Part No.	Description	Qty	Buy
1	6E5–61350–02 STEERING GUIDE ATTACHMENT KIT	STEERING GUIDE ATTACHMENT KIT	1	Ask on WhatsApp
2	6E5–61351–01 .ROD, STEERING LINK	.ROD, STEERING LINK	1	Ask on WhatsApp
3	90387–10M61 .COLLAR	.COLLAR	1	Ask on WhatsApp
4	90560–12M01 .SPACER	.SPACER	1	Ask on WhatsApp
5	6E5–61355–00 .BOLT	.BOLT	1	Ask on WhatsApp
6	90185–09M01 .NUT, SELF-LOCKING	.NUT, SELF-LOCKING	2	Ask on WhatsApp
7	90201–10M20 .WASHER, PLATE	.WASHER, PLATE	2	Ask on WhatsApp
8	6E5–43145–01 .CAP, CLAMP BRACKET	.CAP, CLAMP BRACKET	1	Ask on WhatsApp
9	93210–16275 .O-RING	.O-RING	1	Ask on WhatsApp
