E8DMH’03

Choose a section to open the exploded parts diagram with live pricing. (v2)

Engine sections in this model
TOP COWLING CONTROL REMOTE CONTROL ATTACHMENT BRACKET UPPER CASING LOWER CASING. DRIVE 1 LOWER CASING. DRIVE 2 FUEL TANK OPTIONAL PARTS REPAIR KIT 1 REPAIR KIT 2 CYLINDER. CRANKCASE CRANKSHAFT. PISTON INTAKE CARBURETOR FUEL STARTER GENERATOR ELECTRICAL

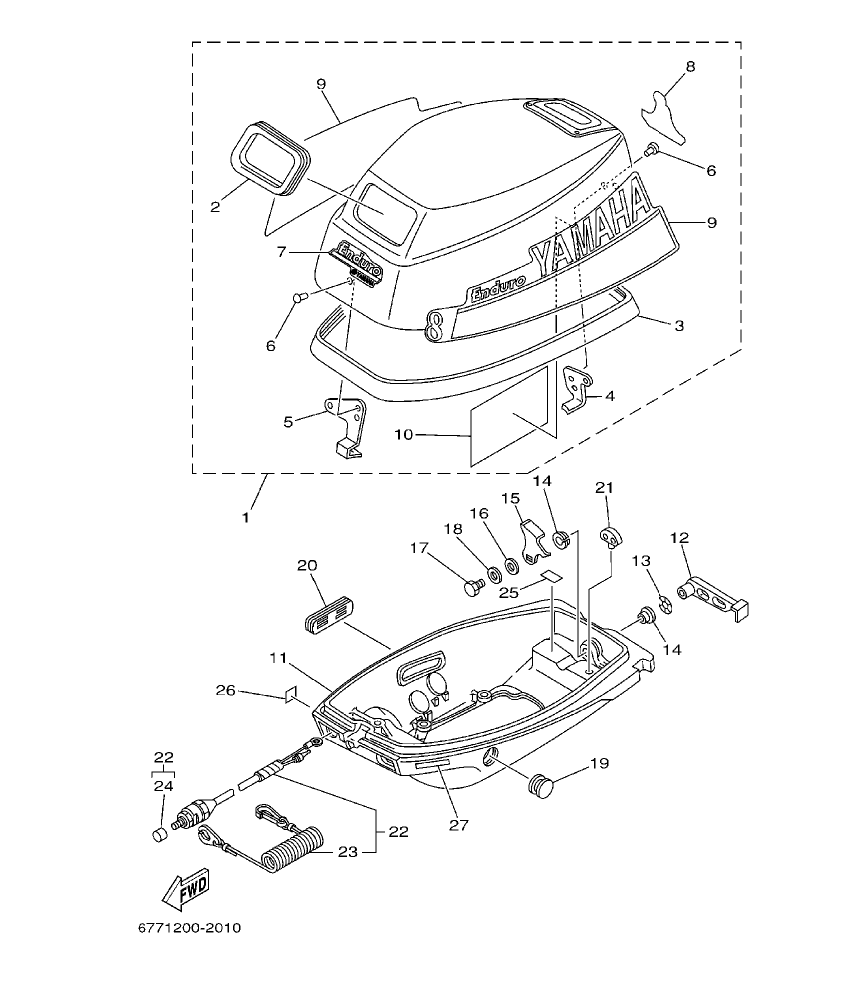

Fig. 1 – TOP COWLING
Fig. 1 – TOP COWLING

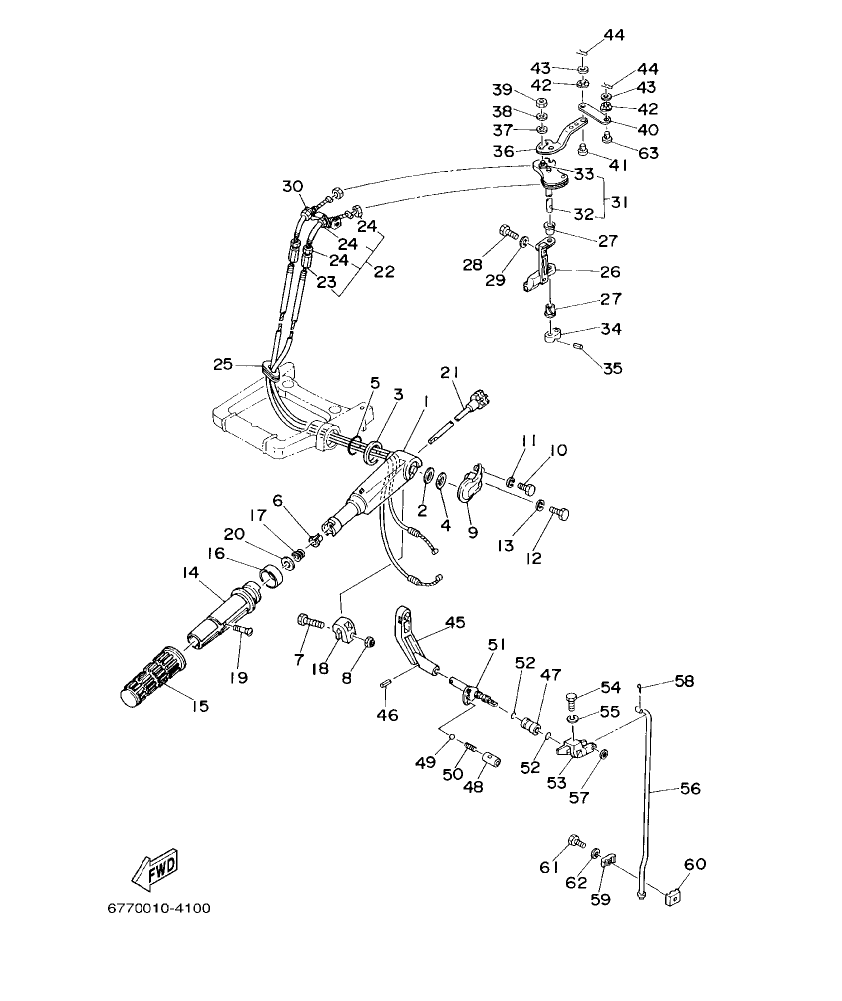

Fig. 10 – CONTROL
Fig. 10 – CONTROL

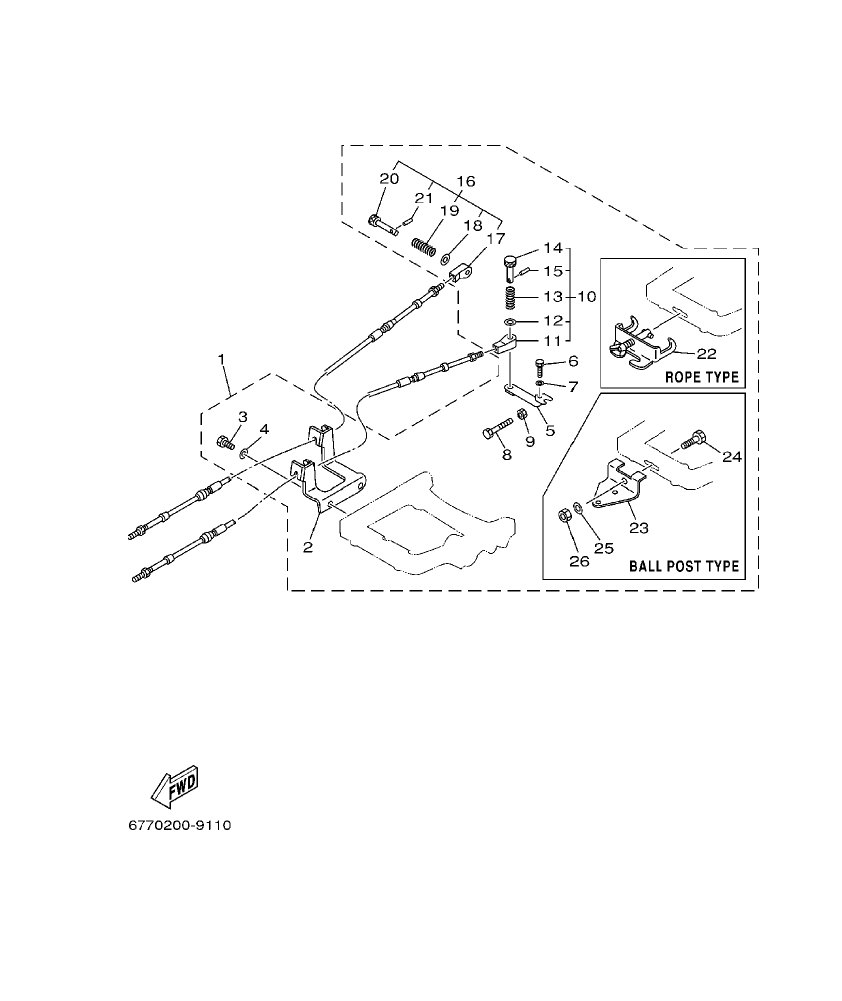

Fig. 11 – REMOTE CONTROL ATTACHMENT
Fig. 11 – REMOTE CONTROL ATTACHMENT

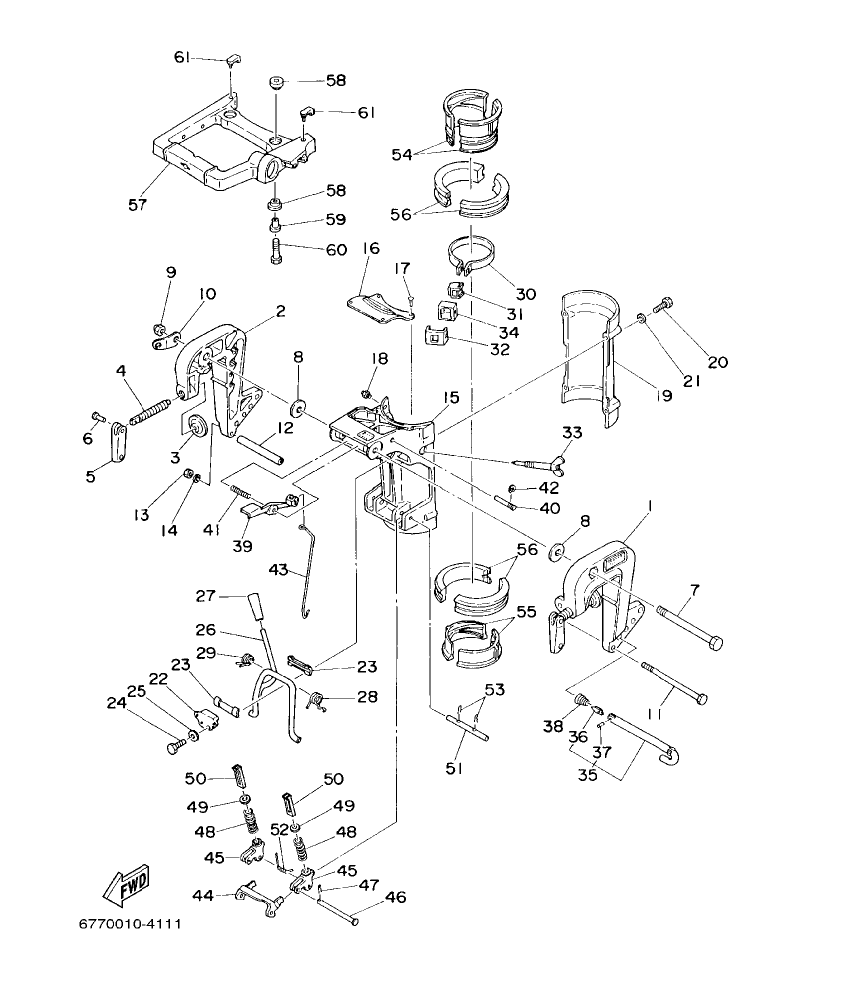

Fig. 12 – BRACKET
Fig. 12 – BRACKET

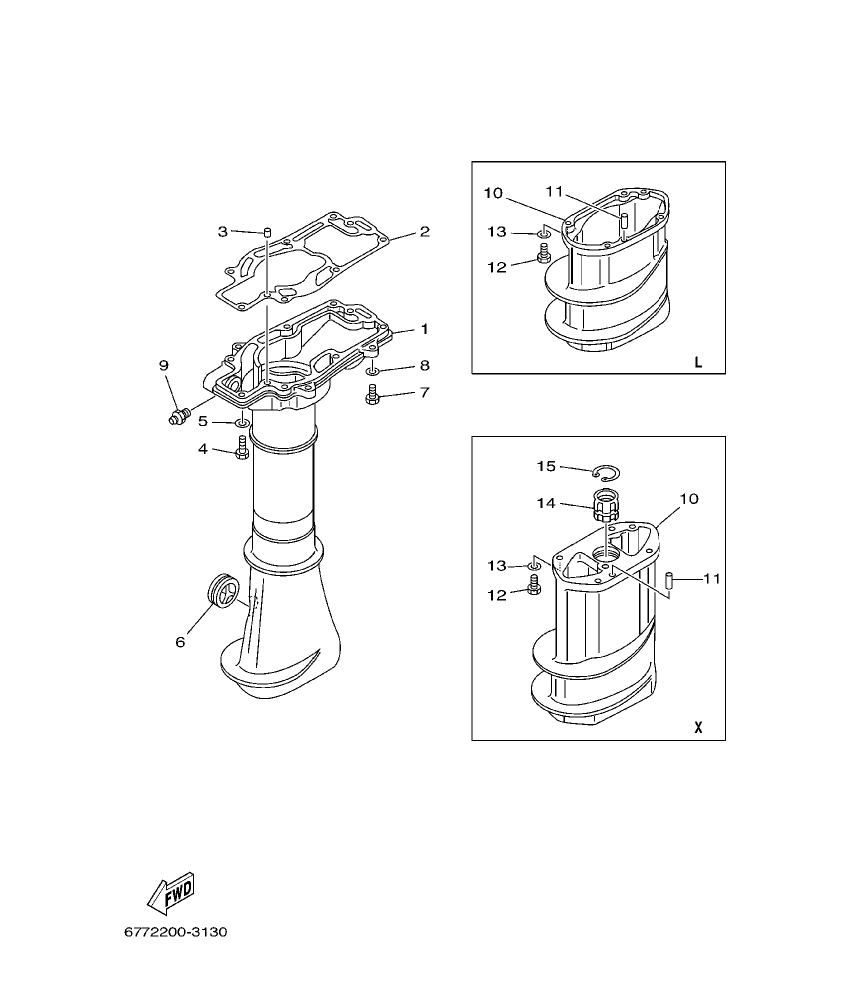

Fig. 13 – UPPER CASING
Fig. 13 – UPPER CASING
Fig. 14 – LOWER CASING. DRIVE 1
Fig. 14 – LOWER CASING. DRIVE 1

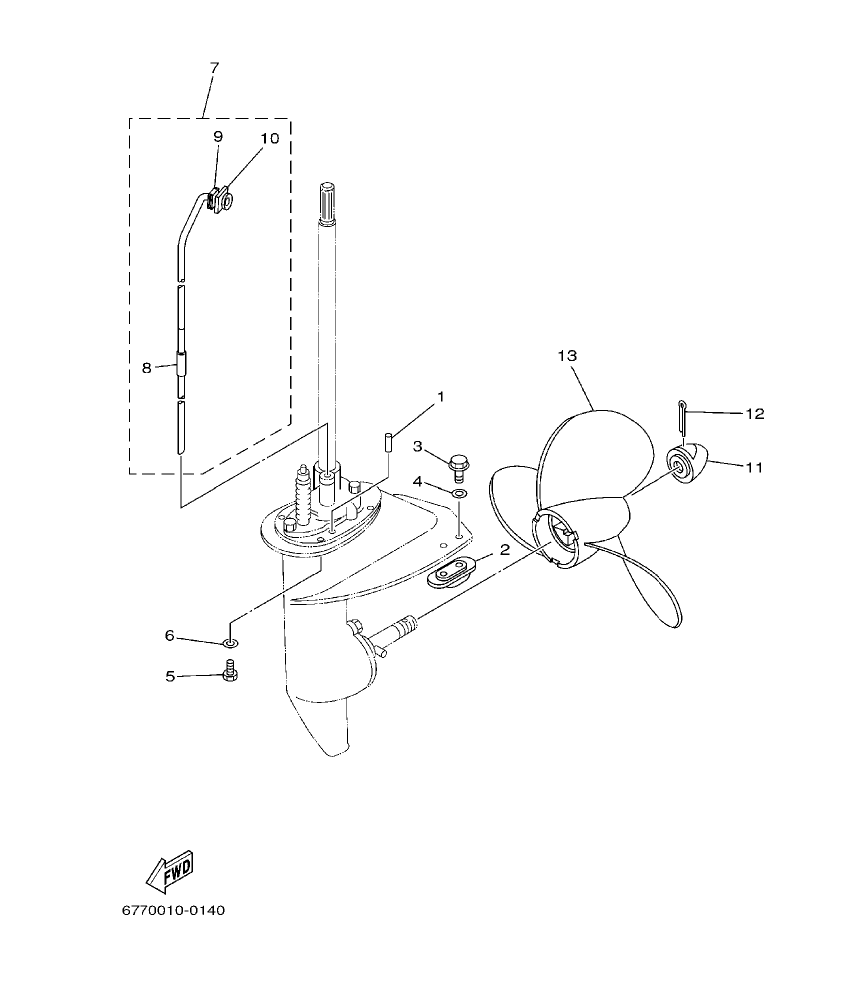

Fig. 15 – LOWER CASING. DRIVE 2
Fig. 15 – LOWER CASING. DRIVE 2

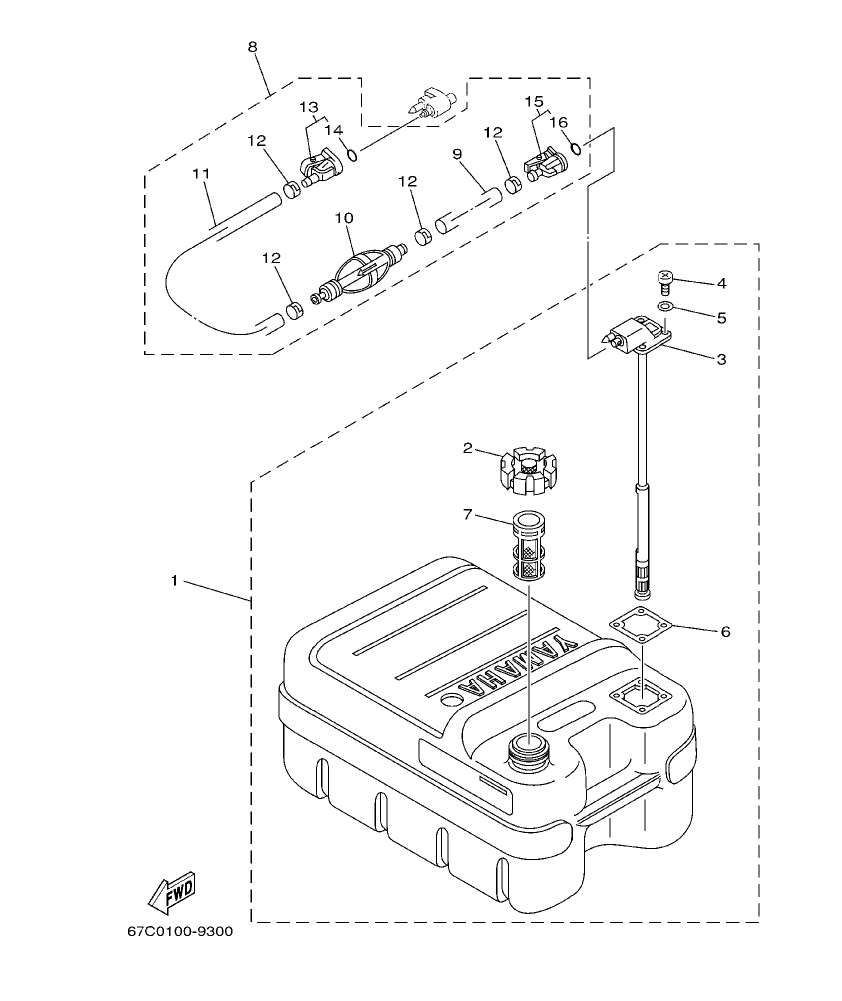

Fig. 16 – FUEL TANK
Fig. 16 – FUEL TANK
Fig. 17 – OPTIONAL PARTS
Fig. 17 – OPTIONAL PARTS
Fig. 18 – REPAIR KIT 1
Fig. 18 – REPAIR KIT 1
Fig. 19 – REPAIR KIT 2
Fig. 19 – REPAIR KIT 2

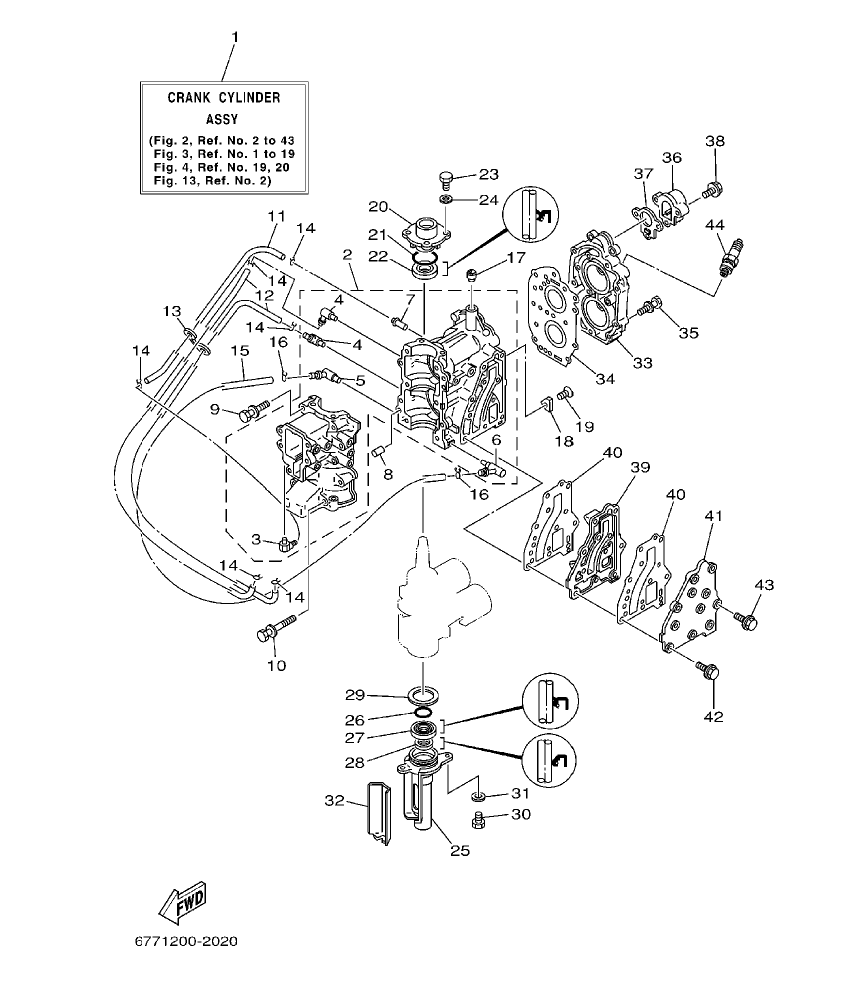

Fig. 2 – CYLINDER. CRANKCASE
Fig. 2 – CYLINDER. CRANKCASE

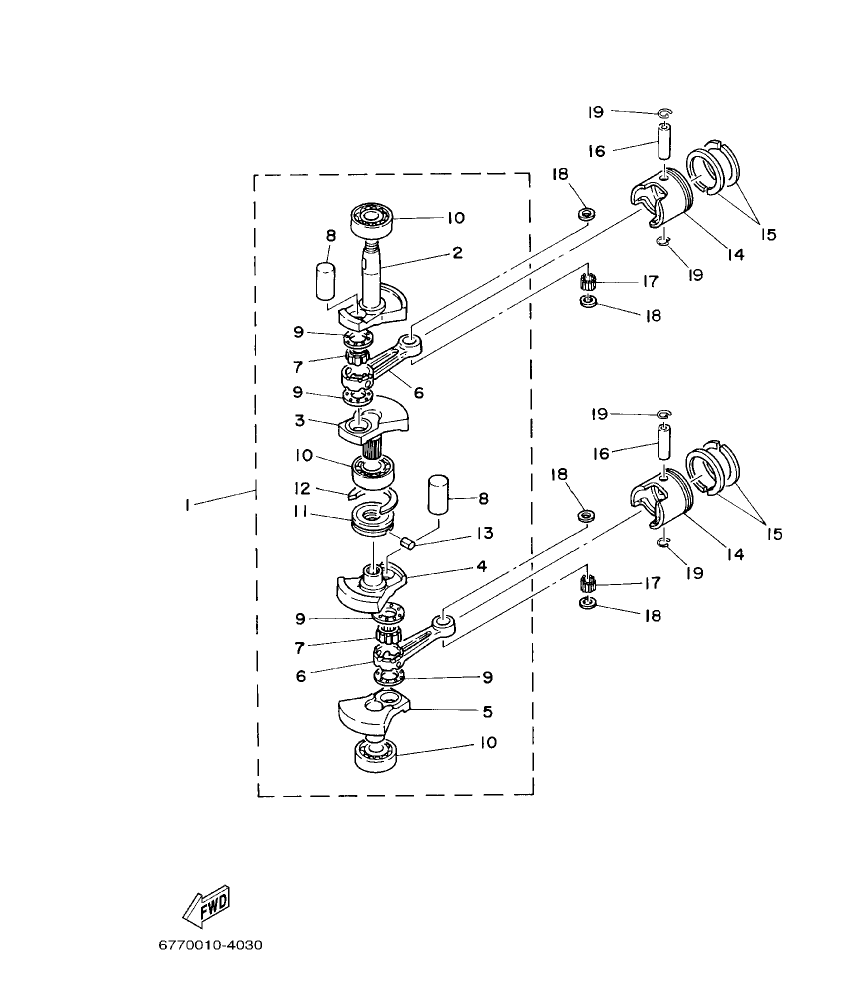

Fig. 3 – CRANKSHAFT. PISTON
Fig. 3 – CRANKSHAFT. PISTON

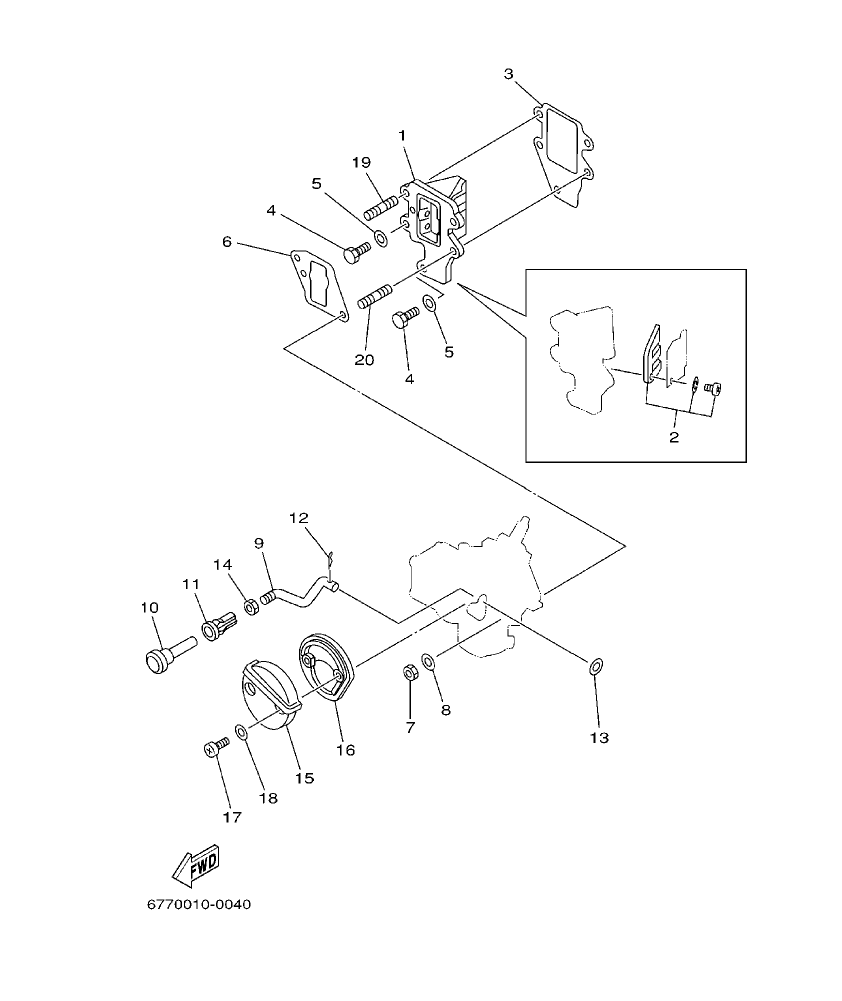

Fig. 4 – INTAKE
Fig. 4 – INTAKE

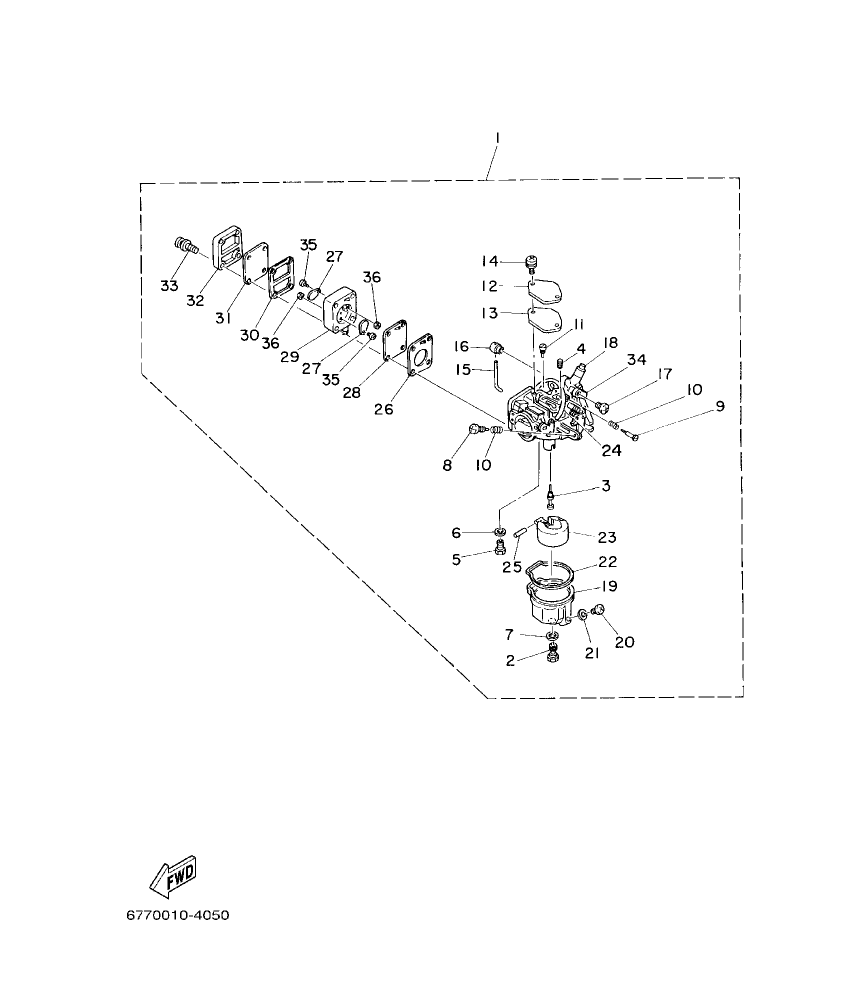

Fig. 5 – CARBURETOR
Fig. 5 – CARBURETOR
Fig. 6 – FUEL
Fig. 6 – FUEL

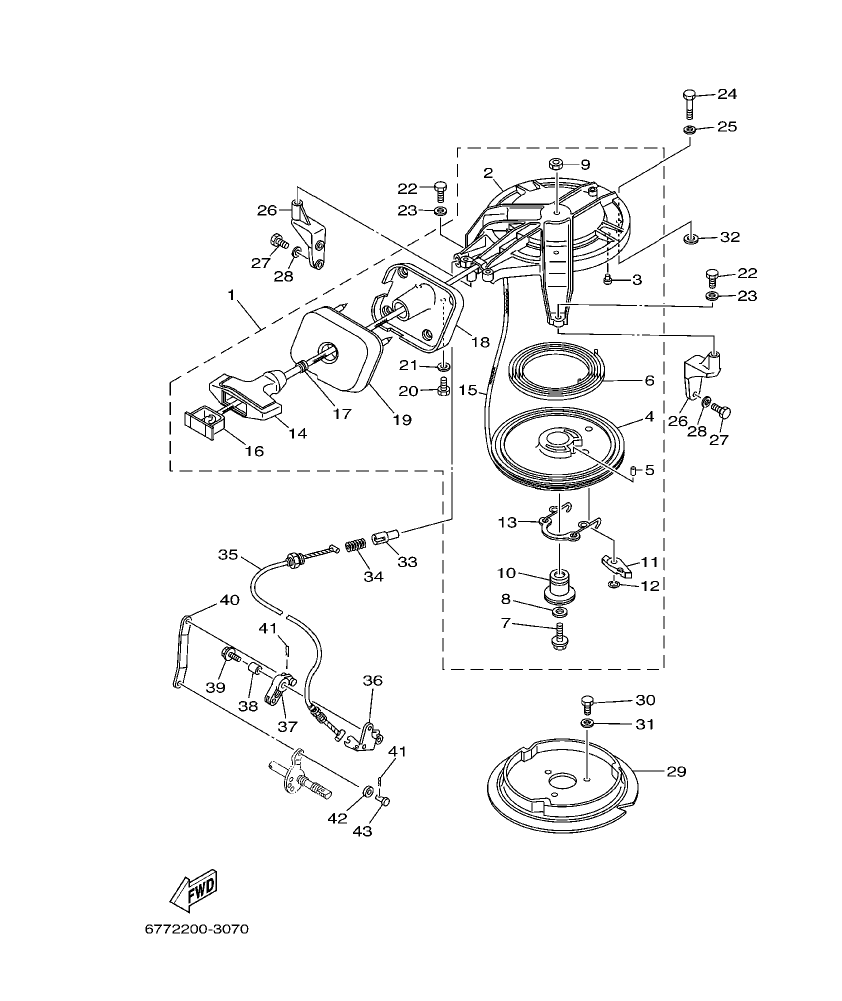

Fig. 7 – STARTER
Fig. 7 – STARTER
Fig. 8 – GENERATOR
Fig. 8 – GENERATOR
Fig. 9 – ELECTRICAL
Fig. 9 – ELECTRICAL
