E8DMH’03

Section 14: LOWER CASING. DRIVE 1 (v2)

Engine sections in this catalog
TOP COWLING CONTROL REMOTE CONTROL ATTACHMENT BRACKET UPPER CASING LOWER CASING. DRIVE 1 LOWER CASING. DRIVE 2 FUEL TANK OPTIONAL PARTS REPAIR KIT 1 REPAIR KIT 2 CYLINDER. CRANKCASE CRANKSHAFT. PISTON INTAKE CARBURETOR FUEL STARTER GENERATOR ELECTRICAL

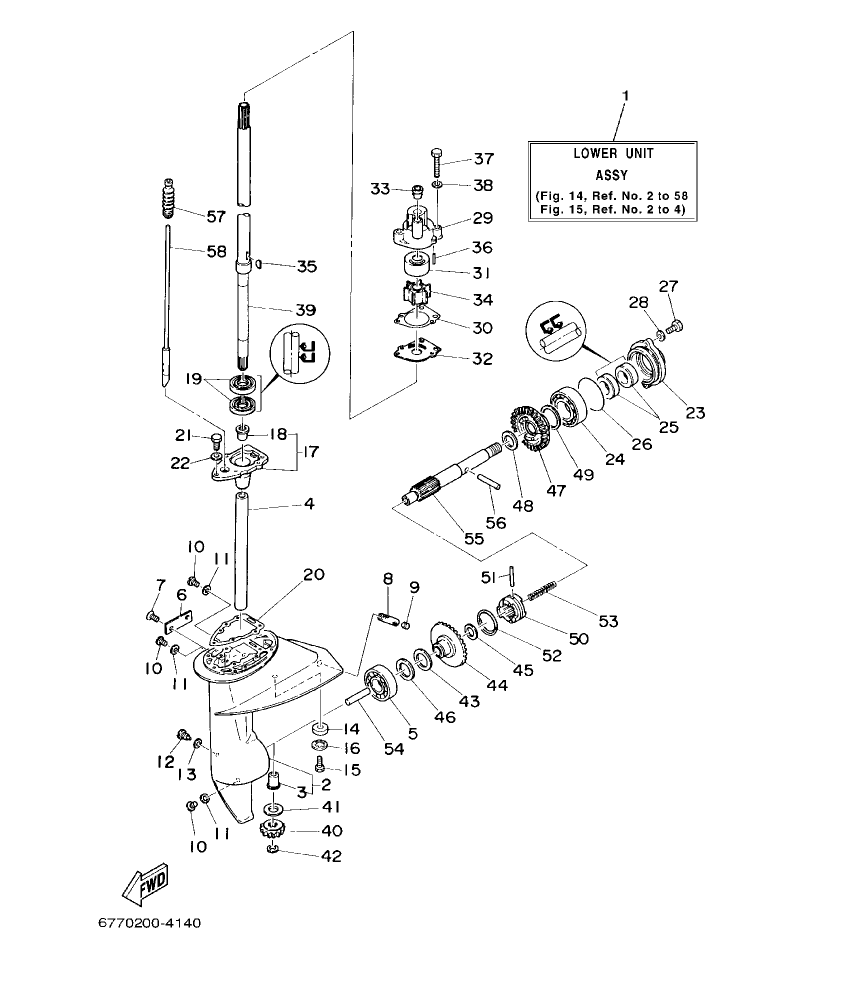

E8DMH’03 – section 14 LOWER CASING. DRIVE 1 parts diagram

Diagram for section 14: LOWER CASING. DRIVE 1.

Ref Part No. Qty Buy
1
677-45300-01-4D
LOWER UNIT ASSY
 1 Ask on WhatsApp
2
655-45310-02-4D
LOWER CASING ASSY
 1 Ask on WhatsApp
3
647-45316-09
.BUSHING, DRIVE SHAFT
 1
Price: 31.28 AED
In stock (185 pcs)
4
90387-14108
COLLAR
 1 Ask on WhatsApp
5
93306-004U0
BEARING
 1 Ask on WhatsApp
6
655-45214-02-4D
COVER, WATER INLET
 1 Ask on WhatsApp
7
90152-05M02
SCREW, COUNTERSUNK
 2 Ask on WhatsApp
8
626-45215-00
COVER, WATER INLET
 1 Ask on WhatsApp
9
90334-10008
PLUG, STRAIGHT
 1 Ask on WhatsApp
10
90340-08002
PLUG, STRAIGHT SCREW
 3
Price: 25.33 AED
In stock (299 pcs)
11
90430-08020
GASKET
 3 Ask on WhatsApp
12
90149-06003
SCREW
 1 Ask on WhatsApp
13
90430-06M03
GASKET
 1 Ask on WhatsApp
14
677-45251-00
ANODE
 1 Ask on WhatsApp
15
95895-06012
BOLT, FLANGE
 1
Price: 2.98 AED
In stock (1 pcs)
16
92990-06300
WASHER, INTERNAL TOOTH
 1 Ask on WhatsApp
17
647-45331-00-94
HOUSING, BEARING
 1
Price: 123.65 AED
In stock (5 pcs)
18
647-45316-09
.BUSHING, DRIVE SHAFT
 1
Price: 31.28 AED
In stock (185 pcs)
19
93101-18050
OIL SEAL
 2
Price: 20.86 AED
In stock (4 pcs)
20
677-45315-A1
PACKING, LOWER CASING
 1 Ask on WhatsApp
21
97095-06020
BOLT
 2 Ask on WhatsApp
22
92995-06600
WASHER
 2 Ask on WhatsApp
23
655-45361-02-4D
CAP, LOWER CASING
 1 Ask on WhatsApp
24
93306-00501
BEARING (B6005)
 1 Ask on WhatsApp
25
93101-15074
OIL SEAL
 2
Price: 16.39 AED
In stock (32 pcs)
26
93210-58144
1 Ask on WhatsApp
27
97095-06020
2 Ask on WhatsApp
28
92995-06600
2 Ask on WhatsApp
29
655-44311-03
1
Price: 70.76 AED
In stock (1 pcs)
30
655-44315-A1
1 Ask on WhatsApp
31
650-44322-01
1
Price: 20.86 AED
In stock (1 pcs)
32
655-44323-01
1
Price: 9.68 AED
In stock (1 pcs)
33
647-44366-00
1 Ask on WhatsApp
34
662-44352-01
1
Price: 49.91 AED
In stock (20 pcs)
35
90280-03024
1
Price: 11.92 AED
In stock (153 pcs)
36
93604-18080
2 Ask on WhatsApp
37
97095-06040
3
Price: 3.72 AED
In stock (1 pcs)
38
92995-06600
3 Ask on WhatsApp
39
655-45501-00
1 Ask on WhatsApp
40
647-45551-00
1 Ask on WhatsApp
41
647-45533-00-08
1 Ask on WhatsApp
42
99001-07600
1 Ask on WhatsApp
43
624-45567-00-03
1 Ask on WhatsApp
44
647-45560-00
1 Ask on WhatsApp
45
90201-13198
WASHER, PLATE
 1 Ask on WhatsApp
46
647-45567-00
SHIM (T:0.10MM)
 1 Ask on WhatsApp
47
647-45570-01
GEAR
 1 Ask on WhatsApp
48
90201-15229
WASHER, PLATE
 1 Ask on WhatsApp
49
626-45577-00-01
SHIM (T:0.10MM)
 1 Ask on WhatsApp
50
655-45631-00
CLUTCH, DOG
 1 Ask on WhatsApp
51
93605-29098
PIN, DOWEL
 1 Ask on WhatsApp
52
93440-30040
CIRCLIP
 1 Ask on WhatsApp
53
90501-12M61
SPRING, COMPRESSION
 1 Ask on WhatsApp
54
654-45635-00
PLUNGER, SHIFT
 1 Ask on WhatsApp
55
677-45611-01
SHAFT, PROPELLER
 1 Ask on WhatsApp
56
90250-05036
PIN, STRAIGHT
 1
Price: 4.47 AED
In stock (4 pcs)
57
655-44147-00
BOOT, SHIFT ROD
 1 Ask on WhatsApp
58
655-44150-00
SHIFT CAM ASSY
 1 Ask on WhatsApp
624
624-45567-00-05
1 Ask on WhatsApp
626
626-45577-00-03
SHIM (T:0.30MM)
 1 Ask on WhatsApp
626
626-45577-00-05
SHIM (T:0.50MM)
 1 Ask on WhatsApp
647
647-45533-00-10
1 Ask on WhatsApp
647
647-45533-00-12
1 Ask on WhatsApp
647
647-45533-00-14
1 Ask on WhatsApp
655
655-44150-10
SHIFT CAM ASSY
 1 Ask on WhatsApp
655
655-44150-20
SHIFT CAM ASSY
 1 Ask on WhatsApp
655
655-44322-41
1 Ask on WhatsApp
655
655-44323-41
1 Ask on WhatsApp
655
655-45501-10
1 Ask on WhatsApp
655
655-45501-20
1 Ask on WhatsApp
677
677-45300-11-4D
LOWER UNIT ASSY
 1 Ask on WhatsApp
677
677-45300-21-4D
LOWER UNIT ASSY
 1 Ask on WhatsApp
