E8DMH’03
Section 18: REPAIR KIT 1 (v2)
Engine sections in this catalog

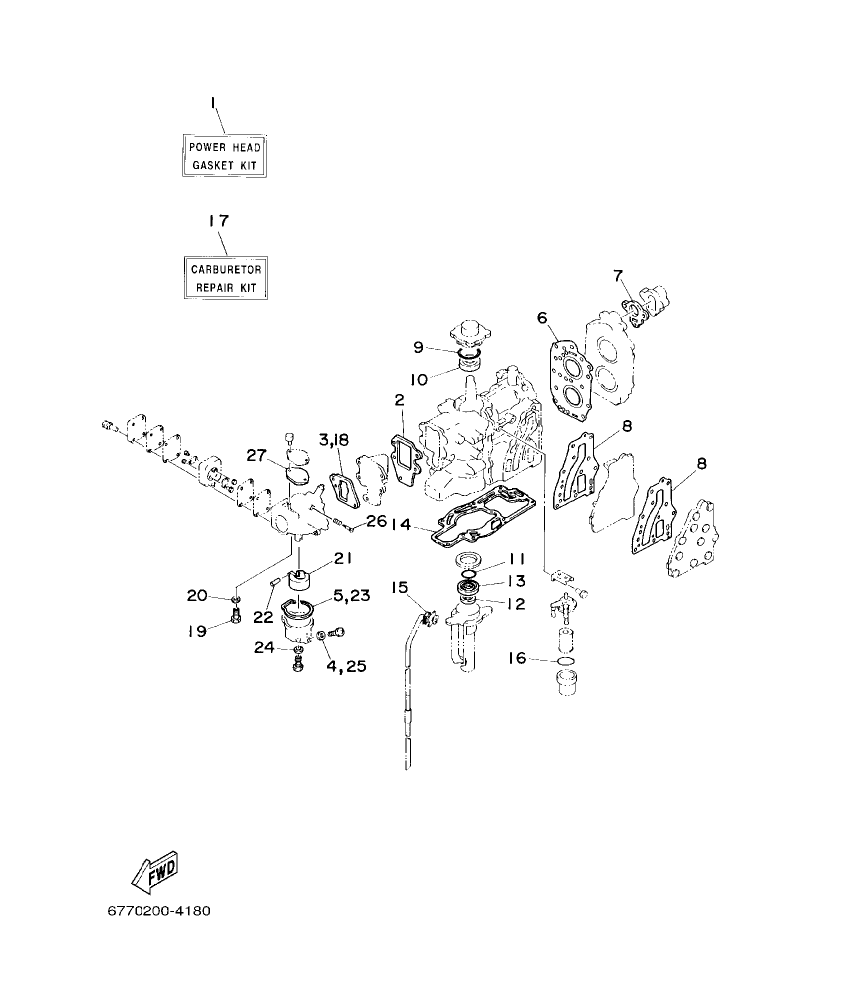

Diagram for section 18: REPAIR KIT 1.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
677-W0001-A2
POWER HEAD GASKET KIT
|
1 | Ask on WhatsApp |
| 2 |
677-13621-A1
.GASKET, VALVE SEAT
|
1 | Ask on WhatsApp |
| 3 |
677-14198-A1
.GASKET
|
1 | Ask on WhatsApp |
| 4 |
655-14398-00
.GASKET
|
1 | Ask on WhatsApp |
| 5 |
677-14384-01
.GASKET, FLOAT CHAMBER
|
1 | Ask on WhatsApp |
| 6 |
677-11181-A1
.GASKET, CYLINDER HEAD 1
|
1 | Ask on WhatsApp |
| 7 |
677-12414-A1
.GASKET, COVER
|
1 | Ask on WhatsApp |
| 8 |
677-41112-A1
.GASKET, EXHAUST INNER COVER
|
2 | Ask on WhatsApp |
| 9 |
93210-42159
.O-RING
|
1 |
Price:
5.21 AED
In stock
(1 pcs)
|
| 10 |
93102-20M25
.OIL SEAL
|
1 | Ask on WhatsApp |
| 11 |
93210-42M70
.O-RING
|
1 | Ask on WhatsApp |
| 12 |
93101-14M01
.OIL SEAL
|
1 | Ask on WhatsApp |
| 13 |
93101-20M29
.OIL SEAL
|
1 | Ask on WhatsApp |
| 14 |
677-45113-A1
.GASKET, UPPER CASING
|
1 | Ask on WhatsApp |
| 15 |
655-44365-00
.DAMPER, WATER SEAL
|
1 | Ask on WhatsApp |
| 16 |
93210-32738
.O-RING
|
1 |
Price:
2.98 AED
In stock
(75 pcs)
|
| 17 |
677-W0093-06
CARBURETOR REPAIR KIT
|
1 | Ask on WhatsApp |
| 18 |
677-14198-A1
.GASKET
|
1 | Ask on WhatsApp |
| 19 |
6E8-14390-12
.NEEDLE VALVE ASSY
|
1 | Ask on WhatsApp |
| 20 |
367-14195-00
.GASKET
|
1 |
Price:
2.98 AED
In stock
(1 pcs)
|
| 21 |
6E7-14385-00
.FLOAT
|
1 | Ask on WhatsApp |
| 22 |
647-14386-10
.PIN, FLOAT
|
1 | Ask on WhatsApp |
| 23 |
677-14384-01
.GASKET, FLOAT CHAMBER
|
1 | Ask on WhatsApp |
| 24 |
1J2-14398-00
.GASKET
|
1 | Ask on WhatsApp |
| 25 |
655-14398-00
.GASKET
|
1 | Ask on WhatsApp |
| 26 |
648-14323-00
.SCREW, AIR ADJUSTING
|
1 | Ask on WhatsApp |
| 27 |
677-14227-01
.GASKET
|
1 | Ask on WhatsApp |
