F225XCA

Section 28: BRACKET 1 (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS INTAKE 2 THROTTLE BODY ASSY 1 THROTTLE BODY ASSY 2 FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 TOP COWLING ELECTRICAL 3 ELECTRICAL 4 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 BOTTOM COWLING 3 CONTROL BRACKET 1 BRACKET 2 CYLINDER & CRANKCASE 1 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 OPTIONAL PARTS 3 CRANKSHAFT & PISTON REPAIR KIT 1 REPAIR KIT 2 CYLINDER & CRANKCASE 2 CYLINDER & CRANKCASE 3 CYLINDER & CRANKCASE 4 VALVE INTAKE 1

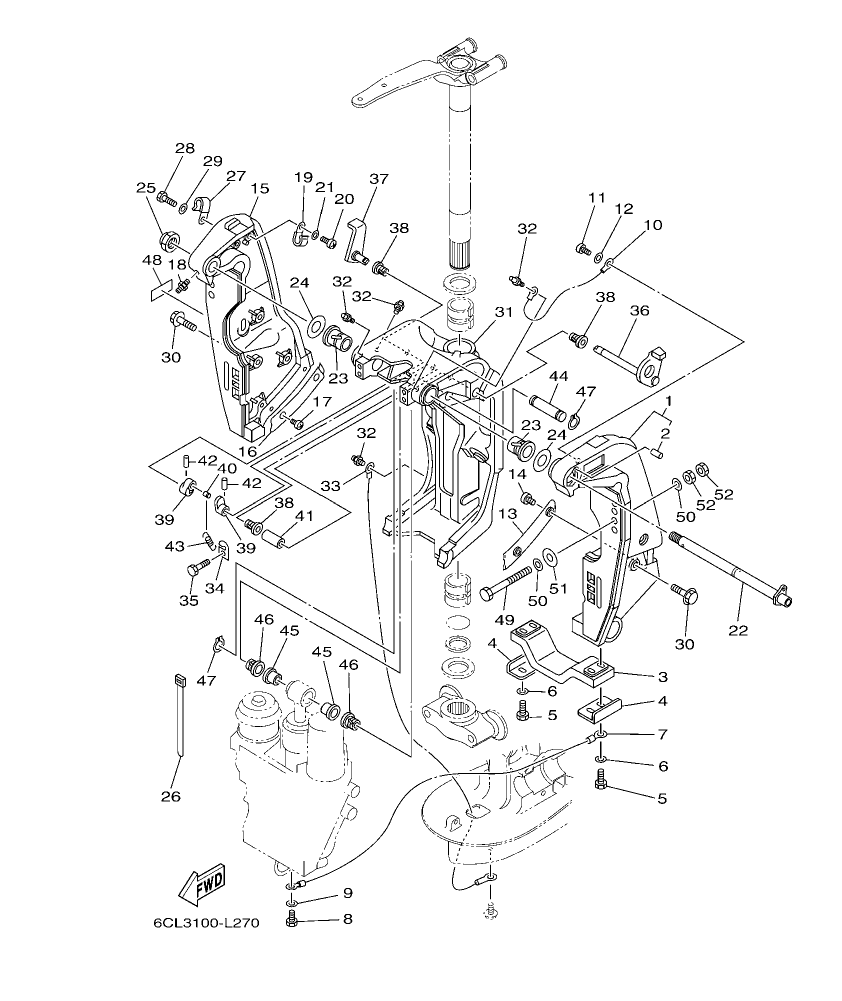

F225XCA – section 28 BRACKET 1 parts diagram

Diagram for section 28: BRACKET 1.

Ref Part No. Qty Buy
2
69J-43111-10-8D
BRACKET, CLAMP 1
 1 Ask on WhatsApp
3
93606-19002
.PIN, DOWEL
 1 Ask on WhatsApp
4
6G5-45251-02
ANODE
 1 Ask on WhatsApp
5
6G5-44526-00
PLATE
 2 Ask on WhatsApp
6
97095-06025
BOLT
 4 Ask on WhatsApp
7
92995-06600
WASHER
 4 Ask on WhatsApp
8
6H1-82148-00
WIRE, LEAD 4
 1 Ask on WhatsApp
9
97095-06010
BOLT
 1 Ask on WhatsApp
10
92995-06600
WASHER
 1 Ask on WhatsApp
11
6E5-82148-00
WIRE, LEAD 4
 1 Ask on WhatsApp
12
97885-06012
SCREW, PAN HEAD
 1 Ask on WhatsApp
13
92995-06600
WASHER
 1 Ask on WhatsApp
14
61A-43132-00
WASHER, FRICTION
 1 Ask on WhatsApp
15
97885-06010
SCREW, PAN HEAD
 2 Ask on WhatsApp
16
69J-43112-01-8D
BRACKET, CLAMP 2
 1 Ask on WhatsApp
17
61A-43133-00
WASHER,FRICTION
 1 Ask on WhatsApp
18
97885-06010
SCREW, PAN HEAD
 2 Ask on WhatsApp
19
93700-06M03
NIPPLE, GREASE
 1 Ask on WhatsApp
20
90465-08M83
CLAMP
 1 Ask on WhatsApp
21
97885-06012
SCREW, PAN HEAD
 1 Ask on WhatsApp
22
92995-06600
WASHER
 1 Ask on WhatsApp
23
6R3-43131-30
BOLT, CLAMP BRACKET
 1 Ask on WhatsApp
24
90386-25M31
BUSH
 2 Ask on WhatsApp
25
90201-26M59
WASHER, PLATE
 2 Ask on WhatsApp
26
90185-22M11
NUT, SELF-LOCKING
 1 Ask on WhatsApp
27
90465-11M10
CLAMP
 4 Ask on WhatsApp
28
90465-08M83
CLAMP
 1 Ask on WhatsApp
