F225XCA
Section 17: GENERATOR (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
INTAKE 2
THROTTLE BODY ASSY 1
THROTTLE BODY ASSY 2
FUEL INJECTION PUMP 1
FUEL INJECTION PUMP 2
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
TOP COWLING
ELECTRICAL 3
ELECTRICAL 4
STARTING MOTOR
BOTTOM COWLING 1
BOTTOM COWLING 2
BOTTOM COWLING 3
CONTROL
BRACKET 1
BRACKET 2
CYLINDER & CRANKCASE 1
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
OPTIONAL PARTS 1
OPTIONAL PARTS 2
OPTIONAL PARTS 3
CRANKSHAFT & PISTON
REPAIR KIT 1
REPAIR KIT 2
CYLINDER & CRANKCASE 2
CYLINDER & CRANKCASE 3
CYLINDER & CRANKCASE 4
VALVE
INTAKE 1

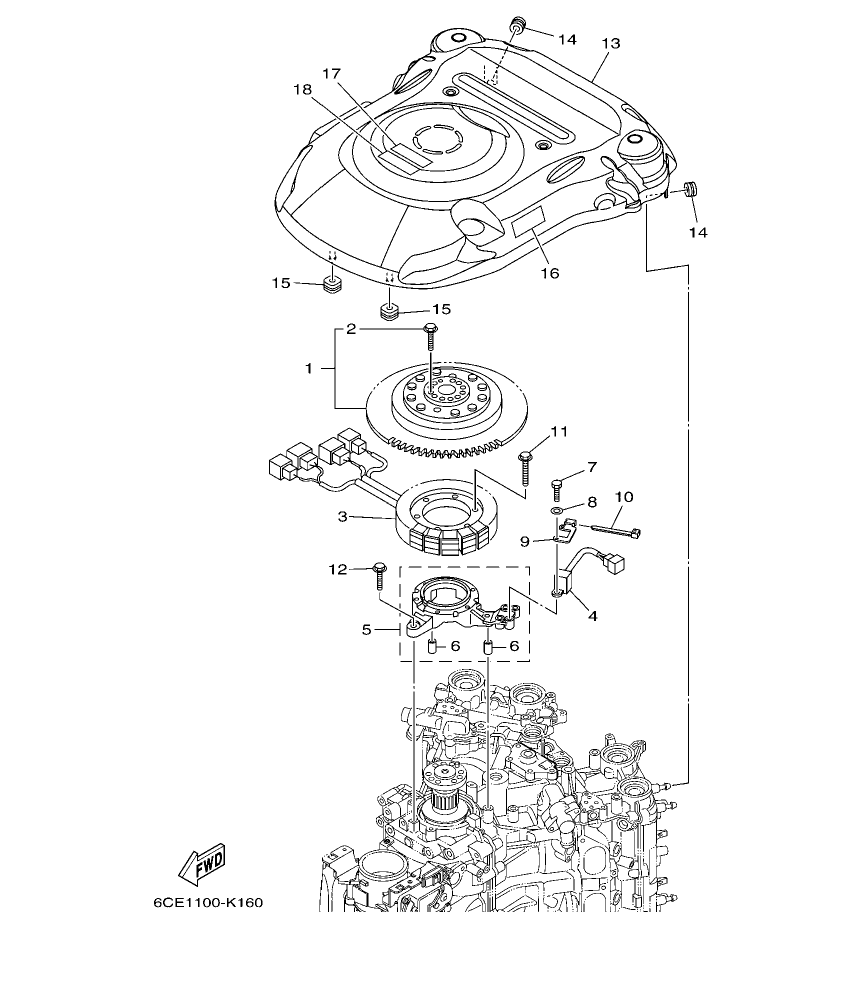

Diagram for section 17: GENERATOR.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 2 |
6CE-W8145-01
ROTOR ASSY WITH BOLTS
|
1 | Ask on WhatsApp |
| 3 |
6AW-W9011-00
.BOLT SET (FOR ROTOR ASSY)
|
1 | Ask on WhatsApp |
| 4 |
6CE-81410-00
STATOR ASSY
|
1 | Ask on WhatsApp |
| 5 |
6CB-85580-00
COIL, PULSER
|
1 | Ask on WhatsApp |
| 6 |
6CB-85561-00
BASE, MAGNETO
|
1 | Ask on WhatsApp |
| 7 |
99530-08012
.PIN, DOWEL
|
2 |
Price:
3.72 AED
In stock
(40 pcs)
|
| 8 |
97095-05020
BOLT
|
2 | Ask on WhatsApp |
| 9 |
92995-05600
WASHER
|
2 | Ask on WhatsApp |
| 10 |
6CE-85592-00
STAY, PULSER
|
1 | Ask on WhatsApp |
| 11 |
90465-11M10
CLAMP
|
1 | Ask on WhatsApp |
| 12 |
95022-06035
BOLT, FLANGE
|
6 | Ask on WhatsApp |
| 13 |
95895-06030
BOLT, FLANGE
|
4 | Ask on WhatsApp |
| 14 |
6CB-81337-00
COVER, FLYWHEEL
|
1 | Ask on WhatsApp |
| 15 |
90480-12314
GROMMET
|
2 | Ask on WhatsApp |
| 16 |
6CB-85516-00
SPACER
|
2 | Ask on WhatsApp |
| 17 |
6CE-13437-50
MARK, CAUTION
|
1 | Ask on WhatsApp |
| 18 |
6AH-81994-40
LABEL, SAFETY
|
1 | Ask on WhatsApp |
| 19 |
6AH-81994-50
LABEL, SAFETY
|
1 | Ask on WhatsApp |
