F225XCA

Section 36: STEERING GUIDE (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS INTAKE 2 THROTTLE BODY ASSY 1 THROTTLE BODY ASSY 2 FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 TOP COWLING ELECTRICAL 3 ELECTRICAL 4 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 BOTTOM COWLING 3 CONTROL BRACKET 1 BRACKET 2 CYLINDER & CRANKCASE 1 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 OPTIONAL PARTS 3 CRANKSHAFT & PISTON REPAIR KIT 1 REPAIR KIT 2 CYLINDER & CRANKCASE 2 CYLINDER & CRANKCASE 3 CYLINDER & CRANKCASE 4 VALVE INTAKE 1

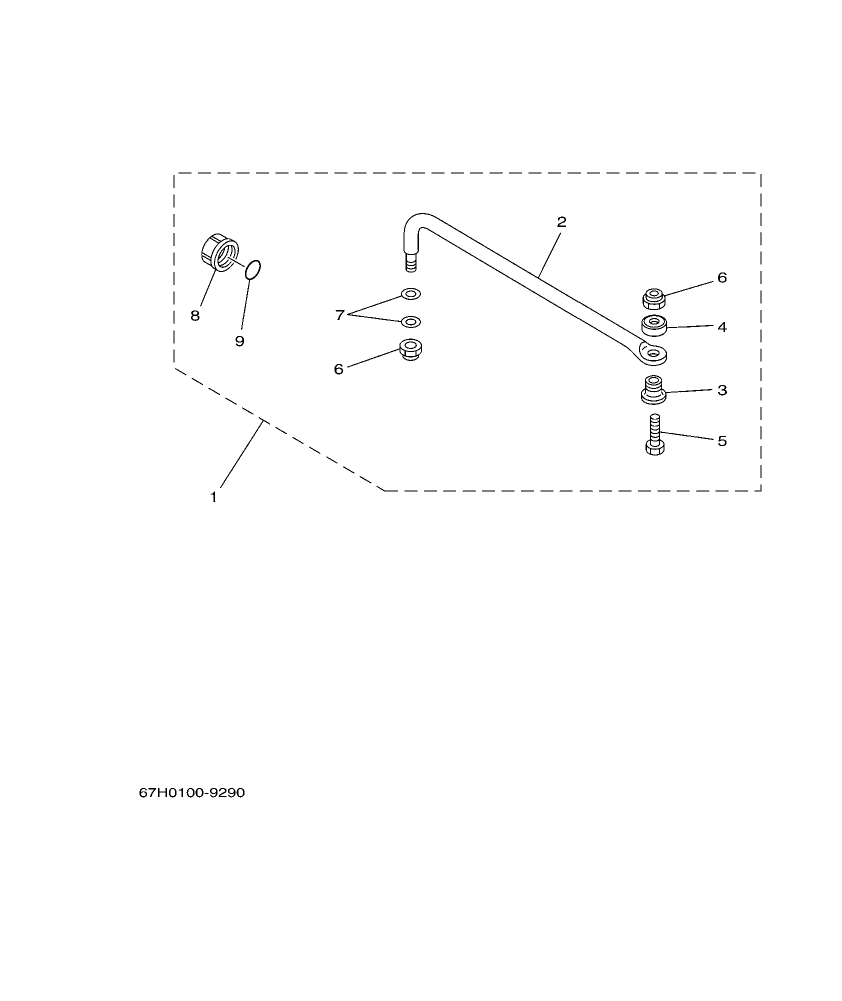

F225XCA – section 36 STEERING GUIDE parts diagram

Diagram for section 36: STEERING GUIDE.

Ref Part No. Qty Buy
2
6E5-61350-02
STEERING GUIDE ATTACHMENT KIT
 1 Ask on WhatsApp
3
6E5-61351-01
.ROD, STEERING LINK
 1 Ask on WhatsApp
4
90387-10M61
.COLLAR
 1 Ask on WhatsApp
5
90560-12M01
.SPACER
 1 Ask on WhatsApp
6
6E5-61355-00
.BOLT
 1 Ask on WhatsApp
7
90185-09M01
.NUT, SELF-LOCKING
 2 Ask on WhatsApp
8
90201-10M20
.WASHER, PLATE
 2 Ask on WhatsApp
9
6E5-43145-01
.CAP, CLAMP BRACKET
 1 Ask on WhatsApp
10
93210-16275
.O-RING
 1 Ask on WhatsApp
