YP30G

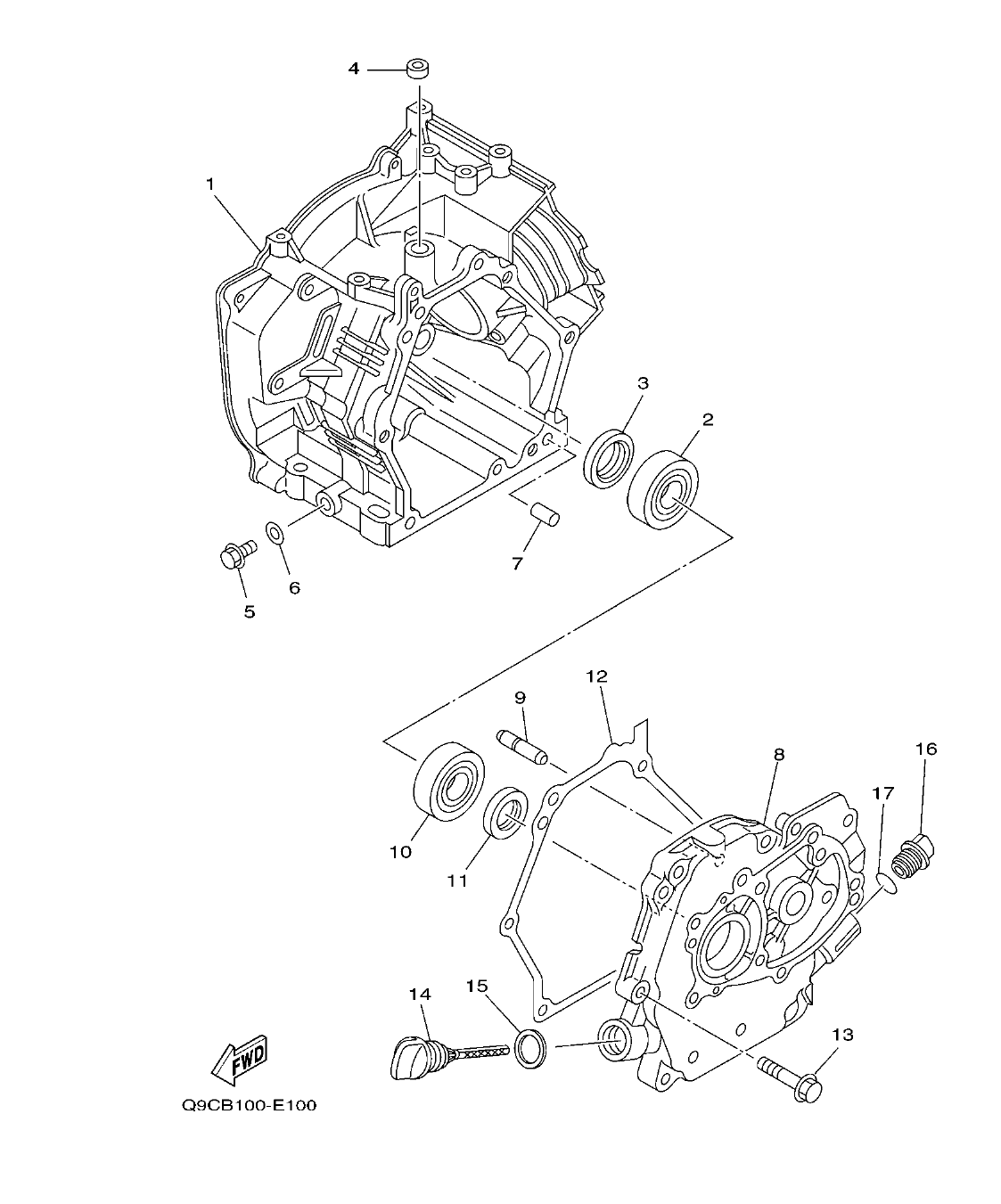

Section 10: CRANKCASE (v2)
Model code: Q9CC
Parts list
Section 10
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
7CN-E5111-10
CRANKCASE
|
1 | |
| 1 |
7CL-E5111-00
CRANKCASE
|
1 | |
| 2 |
93306-205XE
BEARING
|
1 | |
| 3 |
93102-25803
OIL SEAL
|
1 | |
| 4 |
93104-06800
OIL SEAL
|
1 | |
| 5 |
95027-10016
BOLT, FLANGE
|
2 | |
| 6 |
90430-10801
GASKET
|
2 | |
| 7 |
99530-08016
PIN, DOWEL
|
2 | |
| 8 |
7CN-E5411-20
COVER, CRANKCASE 1
|
1 | |
| 9 |
7CN-E1971-00
SHAFT, FLYWEIGHT
|
1 | |
| 10 |
93306-205XE
BEARING
|
1 | |
| 11 |
93102-25802
OIL SEAL
|
1 | |
| 12 |
7CN-E5451-00
GASKET, CRANKCASE COVER 1
|
1 | |
| 13 |
95827-08035
BOLT, FLANGE
|
6 | |
| 14 |
7CN-E5362-10
PLUG, OIL LEVEL
|
1 | |
| 15 |
90430-17801
GASKET
|
1 | |
| 16 |
7CN-E5362-00
PLUG, OIL LEVEL
|
1 | |
| 17 |
93210-13801
O-RING
|
1 |
