YP30G

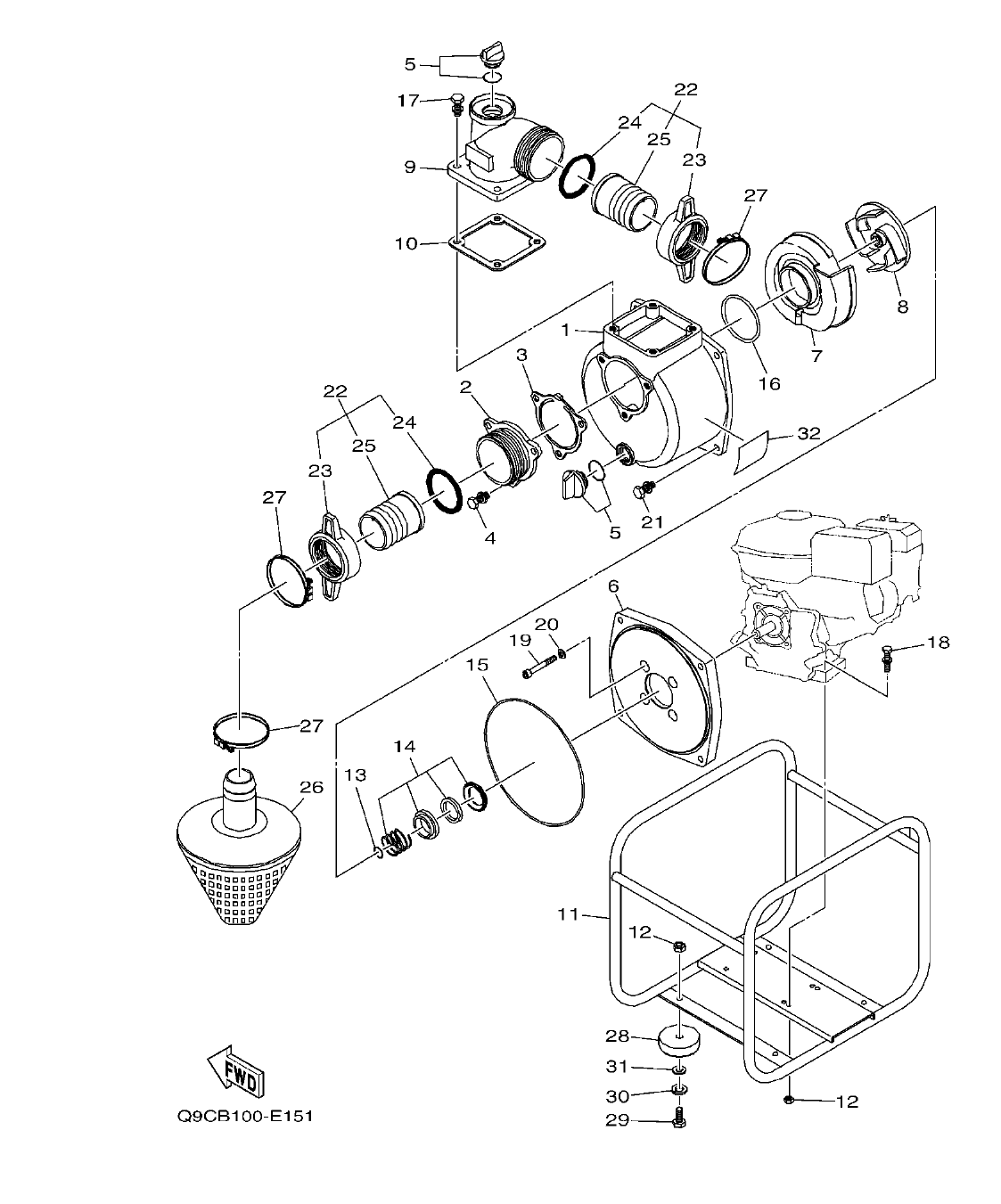

Section 15: WATER PUMP 2 (YP20G:EUR/OTH/CHN) (v2)
Model code: Q9CC
Parts list
Section 15
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
YJA-01125-78-02
CASE, PUMP 1 (7RN1)
|
1 | |
| 2 |
YJA-01126-62-03
FLANGE, INLE (SE-50X)
|
1 | |
| 3 |
YJA-01126-65-01
VALVE, CHECK (7RN1)
|
1 | |
| 4 |
YJA-74311-90-45
HEXAGON BOLT (M8X20)
|
3 | |
| 5 |
YJA-01180-78-02
PLUG (20A)
|
2 | |
| 6 |
YJA-01125-79-05
CASE, PUMP 2 (7RN1)
|
1 | |
| 7 |
YJA-01146-40-01
CASE, PUMP 3 (7RN1)
|
1 | |
| 8 |
YJA-01135-32-03
IMPELLER (SE-50X-1)
|
1 | |
| 9 |
YJA-01146-27-01
FLANGE, OUTLET (SE-50L)
|
1 | |
| 10 |
YJA-01105-41-02
GASKET, HOSE JOINT (7RN1)
|
1 | |
| 11 |
YJA-01171-84-02
BASE ASSY (SEA-50X-BAI)
|
1 | |
| 12 |
YJA-82741-90-08
NUT, HEXAGON
|
8 | |
| 13 |
YJA-01104-66-01
SHIM (7RN1)
|
3 | |
| 14 |
YJA-01106-88-03
MECHANICAL SEAL T (SE-50L)
|
1 | |
| 15 |
YJA-01150-14-01
O-RING
|
1 | |
| 16 |
YJA-01127-92-01
O-RING 2 (7RN1)
|
1 | |
| 17 |
YJA-74311-90-47
BOLT, HEXAGON WITH WASHER
|
4 | |
| 18 |
YJA-74311-90-51
BOLT (7RP1)
|
4 | |
| 19 |
YJA-73453-20-76
BOLT, HEXAGON WITH HOLE
|
4 | |
| 20 |
YJA-85425-50-08
WASHER, SEAL (7RN1)
|
4 | |
| 21 |
YJA-74311-90-46
HEXAGON BOLT (M8X22)
|
4 | |
| 22 |
YJA-01170-26-03
COUPLING ASSY (SE-50X)
|
2 | |
| 23 |
YJA-01133-90-02
.COUPLING (SE-50X)
|
1 | |
| 24 |
YJA-01133-91-01
.COUPLING PACKING (SE-50X)
|
1 | |
| 25 |
YJA-01103-56-05
.NIPPLE (SE-50X)
|
1 | |
| 26 |
YJA-01181-59-01
STRAINER (7RN1)
|
1 | |
| 27 |
YJA-94001-90-60
BAND, HOSE (7RN1)
|
3 | |
| 28 |
YJA-01105-15-02
INSULATOR, MOUNT (7RN1)
|
4 | |
| 29 |
YJA-73571-91-48
BOLT, HEXAGON
|
4 | |
| 30 |
YJA-84382-20-08
SPRING WASHER
|
4 | |
| 31 |
YJA-84600-70-08
WASHER, PLATE
|
4 | |
| 32 |
YJA-07000-07-01
LABEL, CAUTION
|
1 |
