Suzuki GSX-R1000K7_K8_E2(9900B-30239-012) Section 30 Parts Diagram
（E-2） SPEEDOMETER
16 catalog rows · 2 linked store rows
Suzuki GSX-R1000K7_K8_E2(9900B-30239-012) （E-2） SPEEDOMETER parts
Suzuki GSX-R1000K7_K8_E2(9900B-30239-012) section 30 covers （e-2） speedometer parts for this motorcycle catalog. The list includes SPEED & TACHOMETER ASSY, UPPER CASE, ・SWITCH，RUBBER, LOWER CASE, CUSHION，RUBBER, SCREW（3X16）, SCREW，SPEEDOMETER, CUSHION，SPEEDOMETER. Use the diagram reference numbers with the parts table to identify the correct item.
2 rows in this section are linked to store products with live price or availability. Confirm the exact model, serial range and year before ordering marine engine parts.

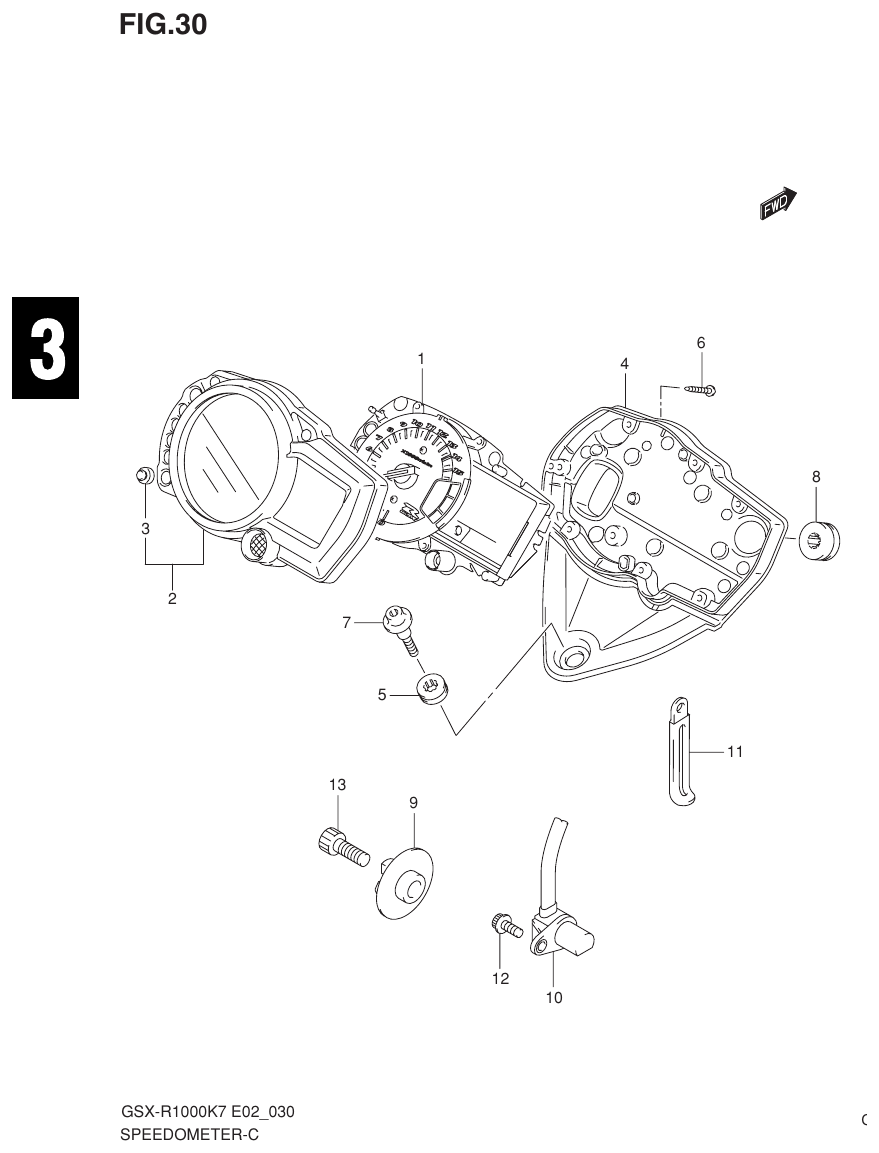

/images/fig-30-e-2-speedometer.png)
Parts list
Section 30
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
|
Ref
1-1
|
SPEED & TACHOMETER ASSY
|
Qty 1 | |
|
Ref
1-2
|
SPEED & TACHOMETER ASSY
E24
|
Qty 1 | |
|
Ref
1-3
|
SPEED & TACHOMETER ASSY
P37
|
Qty 1 | |
|
Ref
2-1
|
UPPER CASE
|
Qty 1 | |
|
Ref
2-2
|
UPPER CASE
P37
|
Qty 1 | |
|
Ref
3
|
・SWITCH，RUBBER
|
Qty 2 | |
|
Ref
4
|
LOWER CASE
|
Qty 1 | |
|
Ref
5
|
CUSHION，RUBBER
|
Qty 1 | |
|
Ref
6
|
SCREW（3X16）
|
Qty 9 | |
|
Ref
7
|
SCREW，SPEEDOMETER
|
Qty 1 | |
|
Ref
8
|
CUSHION，SPEEDOMETER
|
Qty 2 | |
|
Ref
9
|
ROTOR，SPEED
|
Qty 1 | |
|
Ref
10
|
SENSOR，SPEED
|
Qty 1 | |
|
Ref
11
|
CLAMP，SENSOR（L:45）
|
Qty 1 | |
|
Ref
12
|
BOLT，SPEED SENSOR
|
Qty 1 | |
|
Ref
13
|
BOLT，SPEED ROTOR
|
Qty 1 |
