Suzuki GSX-R1000K7_K8_E2(9900B-30239-012) Section 35 Parts Diagram
（E-8） HANDLE SWITCH
5 catalog rows · 0 linked store rows

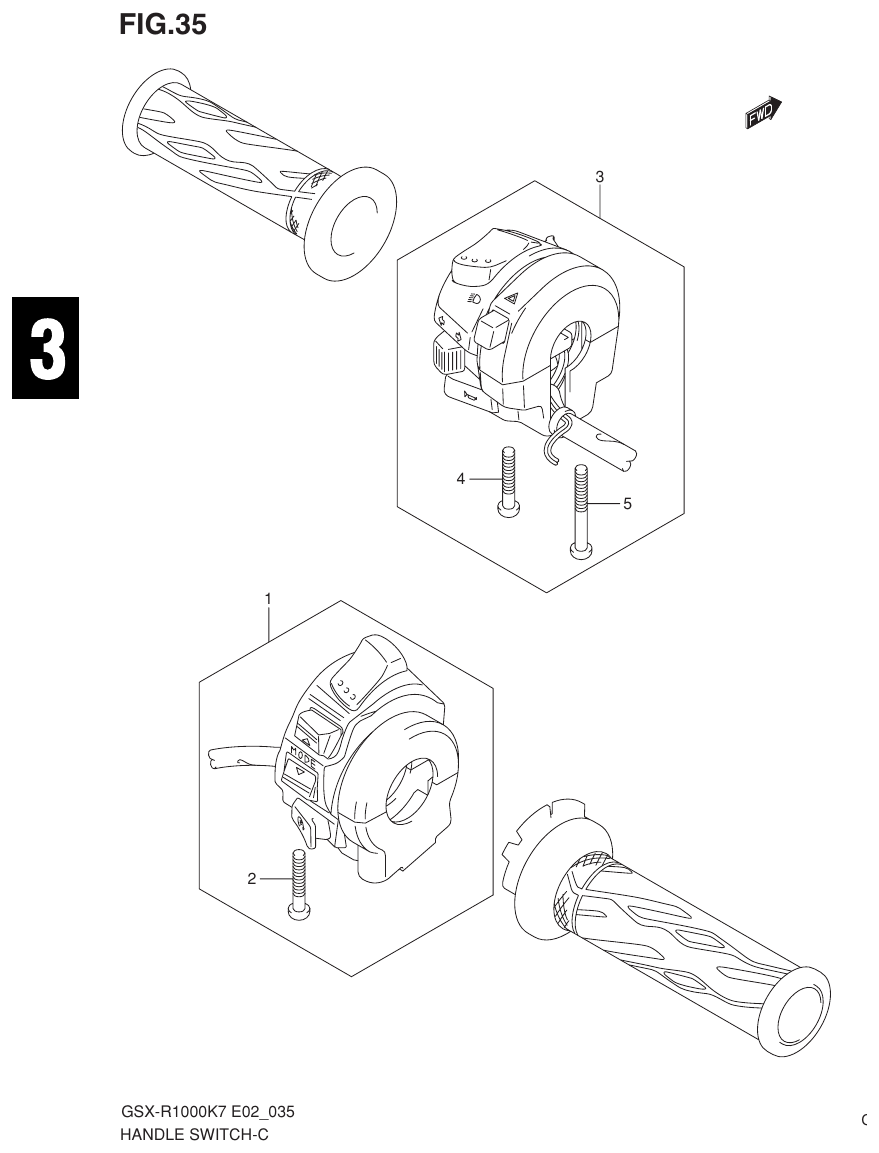

Section 35 — （E-8） HANDLE SWITCH
GSX-R1000K7_K8_E2(9900B-30239-012)
100%
/images/fig-35-e-8-handle-switch.png)
Diagram image
Open full size
Parts list
Section 35
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
37200-21H01
SWITCH ASSY，HANDLE，R
←37200-21H00
|
1 | |
| 2 |
02112-05303
・SCREW
|
2 | |
| 3 |
37400-21H11
SWITCH ASSY，HANDLE，L
←37400-21H10
|
1 | |
| 4 |
02112-05253
・SCREW
|
1 | |
| 5 |
02112-05453
・SCREW
|
1 |
