Suzuki GSX-R1000K7_K8_E2(9900B-30239-012) Section 9 Parts Diagram

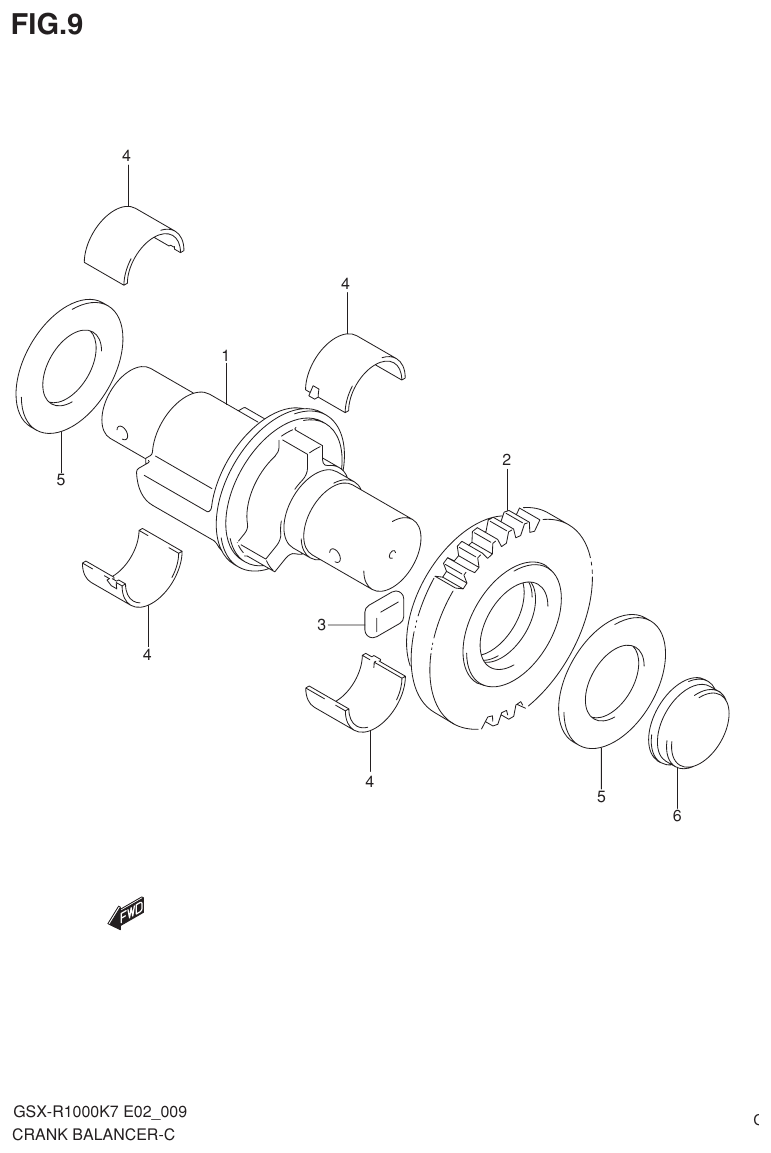

（B-12） CRANK BALANCER
8 catalog rows · 4 linked store rows
Section 9 — （B-12） CRANK BALANCER
GSX-R1000K7_K8_E2(9900B-30239-012)
100%
/images/fig-9-b-12-crank-balancer.png)
Diagram image
Open full size
Parts list
Section 9
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
12654-41G00
BALANCER，CRANK
|
1 | |
| 2 |
12666-40F00
GEAR，CRANK BALANCER
|
1 | |
| 3 |
12686-40F00
DAMPER，CRANK BALANCER GEAR
|
6 | |
| 5 |
09181-23002
WASHER
|
2 | |
| 6 |
09241-26004
PLUG，BALANCER SHAFT HOLE
|
1 | |
| 4-1 |
12229-40F50-0A0
BEARING，CRANK BALANCER
|
4 | |
| 4-2 |
12229-40F50-0B0
BEARING，CRANK BALANCER
|
4 | |
| 4-3 |
12229-40F50-0C0
BEARING，CRANK BALANCER
|
4 |
