Suzuki DF40 – ENGINE HOLDER
ENGINE HOLDER (v2)
Model code: DF40

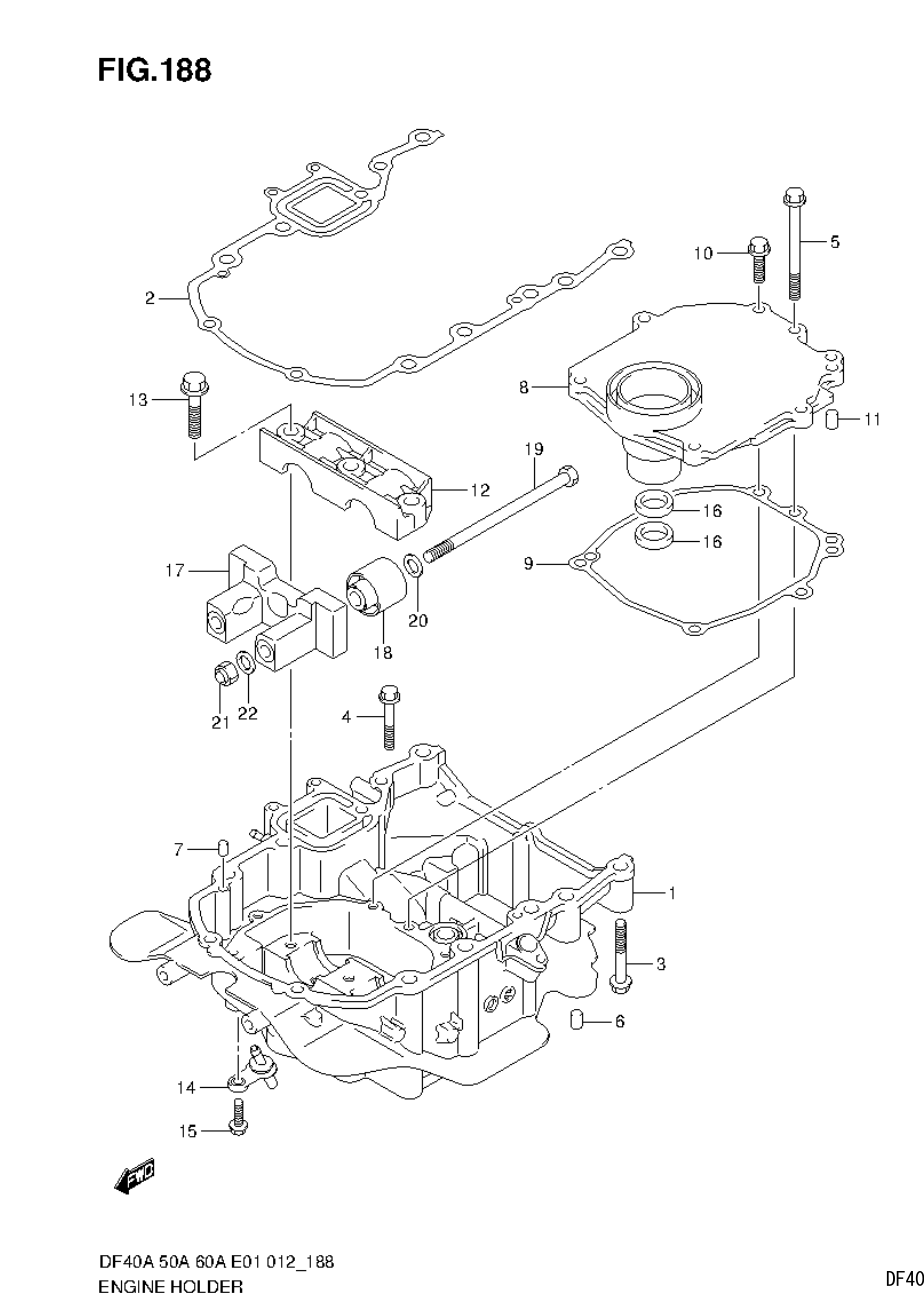

Parts list
ENGINE HOLDER
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
51110-88L00-0EP
HOLDER, ENGINE (BLACK)
|
1 | |
| 1-2 |
51110-88L00-Y5S
df40a-e01
HOLDER, ENGINE (WHITE)
|
1 | |
| 1-2 |
51110-88L00-Y5S
df40ast-e34
HOLDER, ENGINE (WHITE)
|
1 | |
| 2 |
51211-88L00
GASKET, ENGINE HOLDER
|
1 | |
| 3 |
09116-08117
BOLT (8X55)
|
8 | |
| 4 |
01550-0845A
BOLT
|
1 | |
| 5 |
01550-0885A
BOLT
|
1 |
Price: 6.70 AED
Stock: 9
|
| 6 |
09202-08006
PIN
|
2 |
Price: 5.96 AED
Stock: 27
|
| 8 |
51122-88L00
COVER, MOUNT CASE
|
1 | |
| 9 |
51123-88L00
GASKET, MOUNT CASE COVER
|
1 | |
| 10 |
01550-0825A
BOLT
|
6 | |
| 12 |
54137-88L00
COVER, UPPER MOUNT
|
1 | |
| 13 |
09116-10176
BOLT
|
3 |
Price: 13.41 AED
Stock: 7
|
| 14 |
51170-88L00
BRACKET, WATER INDICATOR
|
1 | |
| 15 |
29116-93J00
BOLT, WATER INDICATOR UNION
|
1 | |
| 16 |
09282-17011
OIL SEAL (16.5X28X6)
|
2 |
Price: 20.11 AED
Stock: 28
|
| 17 |
54120-88L00
df40ast-e34
MOUNT, UPPER THRUST
|
1 | |
| 17 |
54124-88L20
df40a-e01
BRACKET, UPPER THRUST
|
1 | |
| 17 |
54124-88L20
df40aqh-e01
BRACKET, UPPER THRUST
|
1 | |
| 18 |
54130-88L00
MOUNT, UPPER
|
2 | |
| 19 |
54166-95J02
BOLT, UPPER MOUNT
|
2 |
Price: 64.80 AED
Stock: 4
|
| 20 |
54114-88L00
df40ast-e34
WASHER, UPPER MOUNT BOLT
|
2 | |
| 20 |
54114-90J01
WASHER, UPPER MOUNT BOLT
|
2 | |
| 21 |
09159-12014
NUT
|
2 |
Price: 8.94 AED
Stock: 19
|
| 23 |
54121-88L00
df40a-e01
MOUNT, UPPER THRUST FR
|
2 | |
| 23 |
54121-88L00
df40aqh-e01
MOUNT, UPPER THRUST FR
|
2 | |
| 24 |
54123-88L00
df40a-e01
MOUNT, UPPER THRUST RR
|
1 | |
| 24 |
54123-88L00
df40aqh-e01
MOUNT, UPPER THRUST RR
|
1 |
