Suzuki DF40 – TRIM CYLINDER
TRIM CYLINDER (v2)
Model code: DF40
Parts list

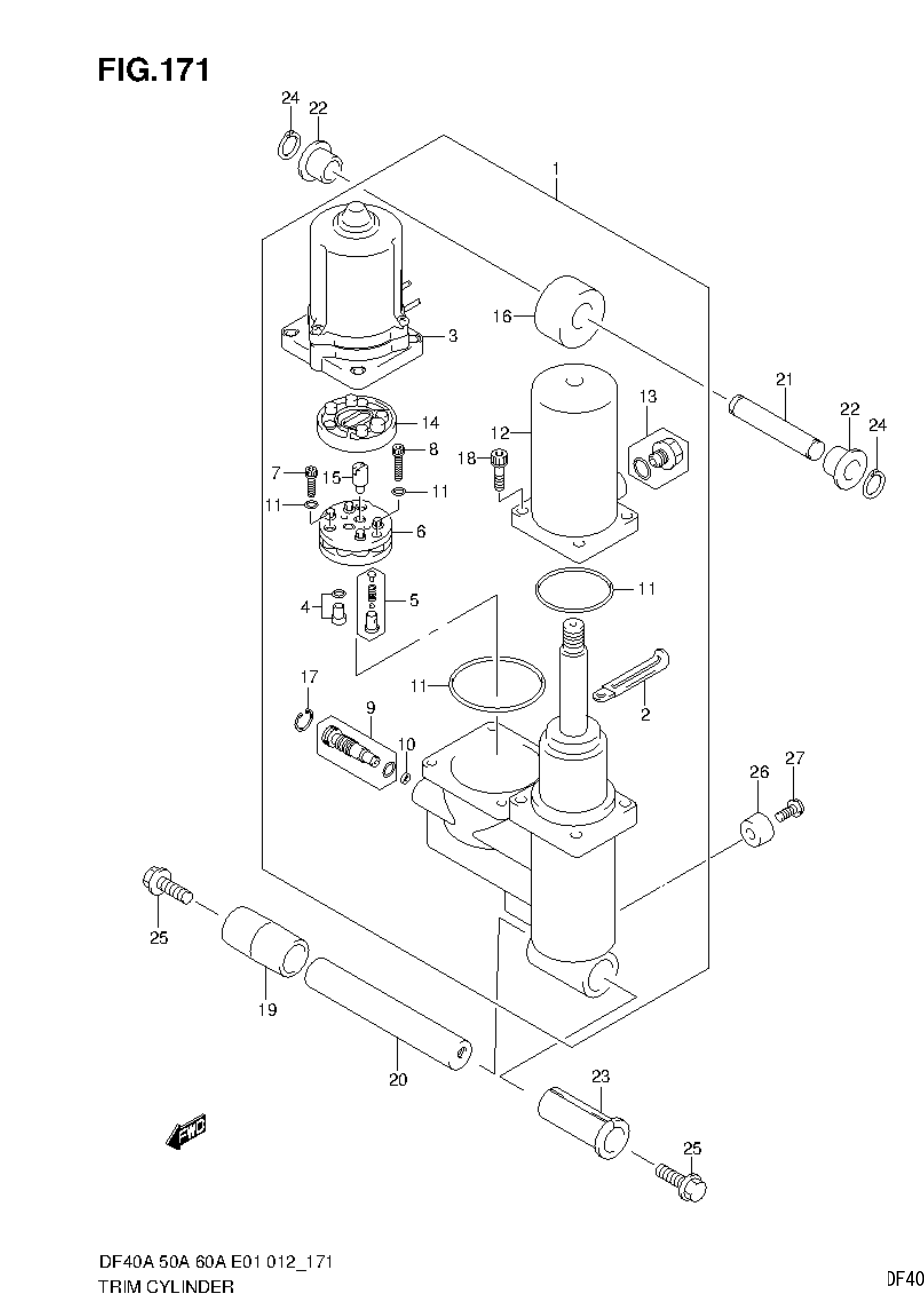

TRIM CYLINDER
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
48000-88L15
TRIM ASSY, POWER WITH TILT
|
1 | |
| 2 |
29404-93J10
.CLAMP
|
1 | |
| 3 |
38100-88L11
.MOTOR ASSY, PTT
|
1 | |
| 4 |
48320-87J10
.VALVE, UP PRESSURE
|
1 | |
| 5 |
48330-87J10
.VALVE, DOWN PRESSURE
|
1 | |
| 6 |
48510-97E00
.PUMP ASSY, GEAR
|
1 | |
| 7 |
48541-87J10
.BOLT
|
2 | |
| 8 |
48541-87J20
.BOLT
|
1 | |
| 9 |
48551-88L00
.VALVE, MANUAL
|
1 | |
| 10 |
48553-97E00
.SEAL WASHER
|
1 | |
| 11 |
48557-87J10
.O RING SET
|
1 | |
| 12 |
48571-88L00
.TANK, RESERVOIR
|
1 | |
| 13 |
48572-87J10
.PLUG
|
1 |
Price: 29.05 AED
Stock: 23
|
| 14 |
48582-97E01
.FILTER
|
1 | |
| 15 |
48583-87J10
.JOINT, DRIVE
|
1 | |
| 16 |
48611-88L00
.JOINT, METAL
|
1 | |
| 17 |
48681-87J11
.CIRCLIP
|
1 | |
| 18 |
48862-87J20
.BOLT, TANK
|
4 |
Price: 40.97 AED
Stock: 3
|
| 19 |
47225-87J00
df40a-e01
COLLAR, TILT CYLINDER LOWER
|
1 | |
| 19 |
47225-88L00
df40ast-e34
COLLAR, TILT CYLINDER LOWER
|
1 | |
| 20 |
48121-88L00
df40ast-e34
SHAFT, TILT CYL LOWER
|
1 | |
| 20 |
48121-89J10
df40a-e01
SHAFT, TILT CYL LOWER
|
1 | |
| 21 |
48321-89J11
SHAFT, TILT CYL UPPER
|
1 | |
| 22 |
48325-89J00
BUSH, TILT CYL UPPER
|
2 | |
| 23 |
48326-87J00
BUSH, TILT CYL LOWER
|
1 | |
| 24 |
09380-12002
SNAP RING
|
2 | |
| 25 |
09116-10174
BOLT (10X35)
|
2 | |
| 26 |
55321-87J00
ANODE, PROTECTION
|
1 | |
| 27 |
09103-06281
BOLT (6X14)
|
1 |
Price: 4.47 AED
Stock: 10
|
| 28 |
09160-10139
df40a-e01
WASHER (10.5X35X3)
|
2 |
