Suzuki DF40 – OPT:REMOTE CONTROL
OPT:REMOTE CONTROL (v2)
Model code: DF40
Parts list

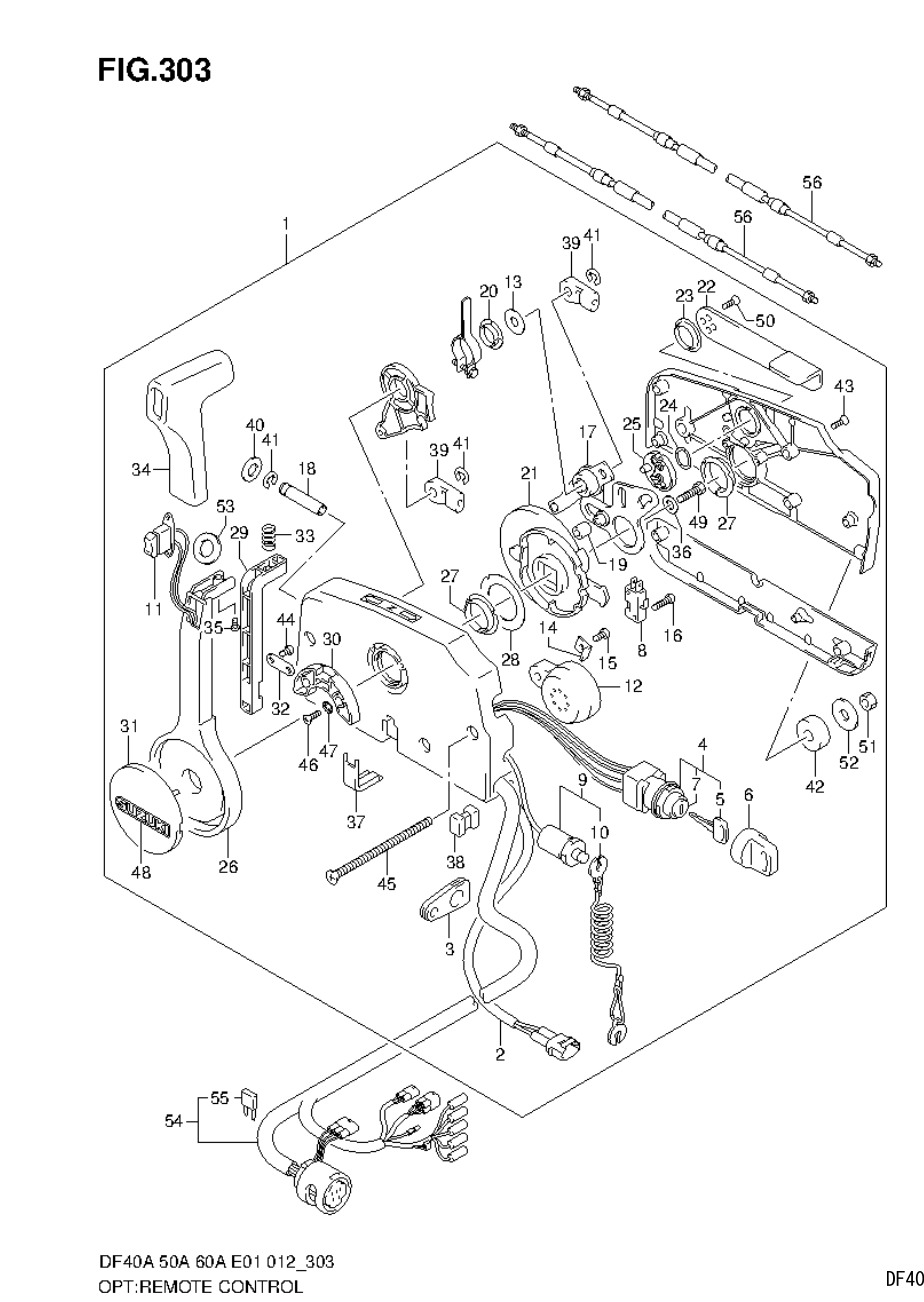

OPT:REMOTE CONTROL
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
67200-93J04
REMOTE CONTROL ASSY
->67200-93J06
|
1 | |
| 2 |
36646-93J01
.WIRE ASSY, PTT SW ADAPTER
|
1 | |
| 3 |
36628-92E00
.GROMMET, WIRE HARNESS
|
1 | |
| 4 |
37110-93J11
.SWITCH ASSY, IGNITION
|
1 | |
| 5-1 |
37141-99E00
..KEY (931)
|
2 | |
| 5-2 |
37141-99E10
..KEY (932)
|
2 | |
| 5-3 |
37141-99E20
..KEY (933)
|
2 | |
| 5-4 |
37141-99E30
..KEY (934)
|
2 | |
| 5-5 |
37141-99E40
..KEY (935)
|
2 | |
| 5-6 |
37141-99E50
..KEY (936)
|
2 | |
| 5-7 |
37141-99E60
..KEY (937)
|
2 | |
| 5-8 |
37141-99E70
..KEY (938)
|
2 | |
| 5-9 |
37141-99E80
..KEY (939)
|
2 | |
| 5-10 |
37141-99E90
..KEY (940)
|
2 | |
| 5-11 |
37141-99EA0
..KEY (941)
|
2 | |
| 5-12 |
37141-99EB0
..KEY (942)
|
2 | |
| 6 |
37143-99E00
..CAP, KEY
|
2 | |
| 7 |
37149-93J00
..CAP, CYLINDER BODY
|
1 | |
| 8 |
37721-93J90
.SWITCH, NEUTRAL
|
1 | |
| 9 |
37820-93J03
.SWITCH ASSY, EMERGENCY
|
1 | |
| 10 |
37823-92E01
..PLATE
|
1 | |
| 11 |
37850-90J05
.SWITCH ASSY, PTT
|
1 | |
| 12 |
38500-93J90
.BUZZER
|
1 |
Price: 56.61 AED
Stock: 8
|
| 13 |
67212-95600
.WASHER
|
1 | |
| 14 |
67213-92E00
.BRACKET, BUZZER
|
1 | |
| 15 |
09125-05042
.SCREW (5X10)
|
1 | |
| 16 |
67296-92E10
.SCREW, NEUTRAL SW
|
2 | |
| 17 |
67220-95630
.PLATE ASSY
|
1 | |
| 18 |
67223-99E10
.KNOB, BRAKE ADJ
|
1 | |
| 19 |
67229-95600
.ROLLER
|
1 | |
| 20 |
67232-95600
.BUSH
|
1 | |
| 21 |
67238-87D00
.GEAR, DRIVE
|
1 | |
| 22 |
67241-99E10
.LEVER, FREE THROTTLE
|
1 | |
| 23 |
67243-95600
.BUSH
|
1 | |
| 24 |
67244-95600
.WASHER, WAVE
|
1 | |
| 25 |
67245-95600
.DRUM, FREE THROTTLE
|
1 | |
| 26 |
67251-99E10
.LEVER, HANDLE
|
1 | |
| 27 |
67252-95600
.BUSH
|
2 | |
| 28 |
67253-95600
.WASHER
|
1 | |
| 29 |
67255-99E00
.ARM, LOCK
|
1 | |
| 30 |
67256-95600
.HOLDER, NEUT LOCK
|
1 | |
| 31 |
67257-99E00
.CAP, LEVER
|
1 | |
| 32 |
67258-99E00
.BRACKET, LOCK ARM
|
1 | |
| 33 |
67259-87D00
.SPRING, NEUTRAL ARM
|
1 | |
| 34 |
67261-99E00
.GRIP
|
1 | |
| 35 |
67296-94310
.SCREW
|
1 | |
| 36 |
67264-95600
.WASHER
|
1 | |
| 37-1 |
67267-95610
.COVER, WIRE
FOR 67200-93J04
|
1 | |
| 37-2 |
67267-93J00
.COVER, WIRE
FOR 67200-93J06
|
1 | |
| 38 |
67273-95600
.SPACER
|
1 | |
| 39 |
67275-95600
.END, CABLE
|
2 |
Price: 14.15 AED
Stock: 50
|
| 40 |
67288-92E00
.WASHER, BRAKE ADJ KNOB
|
1 | |
| 41 |
67292-94300
.E RING
|
3 |
Price: 2.98 AED
Stock: 4
|
| 42 |
67294-95600
.SPACER
|
3 | |
| 43 |
67296-90J00
.SCREW
|
5 | |
| 44 |
67296-94300
.SCREW
|
2 | |
| 45 |
67296-95600
.SCREW
|
3 | |
| 46 |
67296-95610
.SCREW
|
2 | |
| 47 |
67297-95600
.WASHER
|
2 | |
| 48 |
68165-16B00-13L
.EMBLEM
|
1 | |
| 49 |
09100-08232
.BOLT (8X30)
|
1 | |
| 50 |
09126-05003
.SCREW (5X12)
|
2 | |
| 51 |
09140-06020
.NUT
|
3 | |
| 52 |
09160-06104
.WASHER (6.5X24X2)
|
3 | |
| 53 |
37859-90J00
.SPACER
|
1 | |
| 54 |
36620-93J02
WIRE ASSY, REMOTE CONTROL
|
1 | |
| 55 |
09481-10501
.FUSE (10A)
|
1 |
Price: 4.28 AED
Stock: 0
|
| 56-1 |
67320-93J00
CABLE, REMOCON 8F (2.4M)
|
2 | |
| 56-2 |
67320-93J10
CABLE, REMOCON 10F (3.1M)
|
2 |
Price: 111.73 AED
Stock: 79
|
| 56-3 |
67320-93J20
CABLE, REMOCON 12F (3.7M)
|
2 |
Price: 121.42 AED
Stock: 131
|
| 56-4 |
67320-93J30
CABLE, REMOCON 14F (4.2M)
|
2 |
Price: 131.10 AED
Stock: 519
|
| 56-5 |
67320-93J40
CABLE, REMOCON 16F (4.8M)
|
2 |
Price: 141.53 AED
Stock: 680
|
| 56-6 |
67320-93J50
CABLE, REMOCON 18F (5.4M)
|
2 |
Price: 169.09 AED
Stock: 421
|
| 56-7 |
67320-93J60
CABLE, REMOCON 20F (6.0M)
|
2 |
Price: 180.26 AED
Stock: 214
|
| 56-8 |
67320-93J70
CABLE, REMOCON 22F (6.7M)
|
2 |
Price: 191.43 AED
Stock: 117
|
| 56-9 |
67320-93J80
CABLE, REMOCON 24F (7.3M)
|
2 |
Price: 202.61 AED
Stock: 78
|
