Suzuki DF40 – THROTTLE BODY
THROTTLE BODY (v2)
Model code: DF40
Parts list

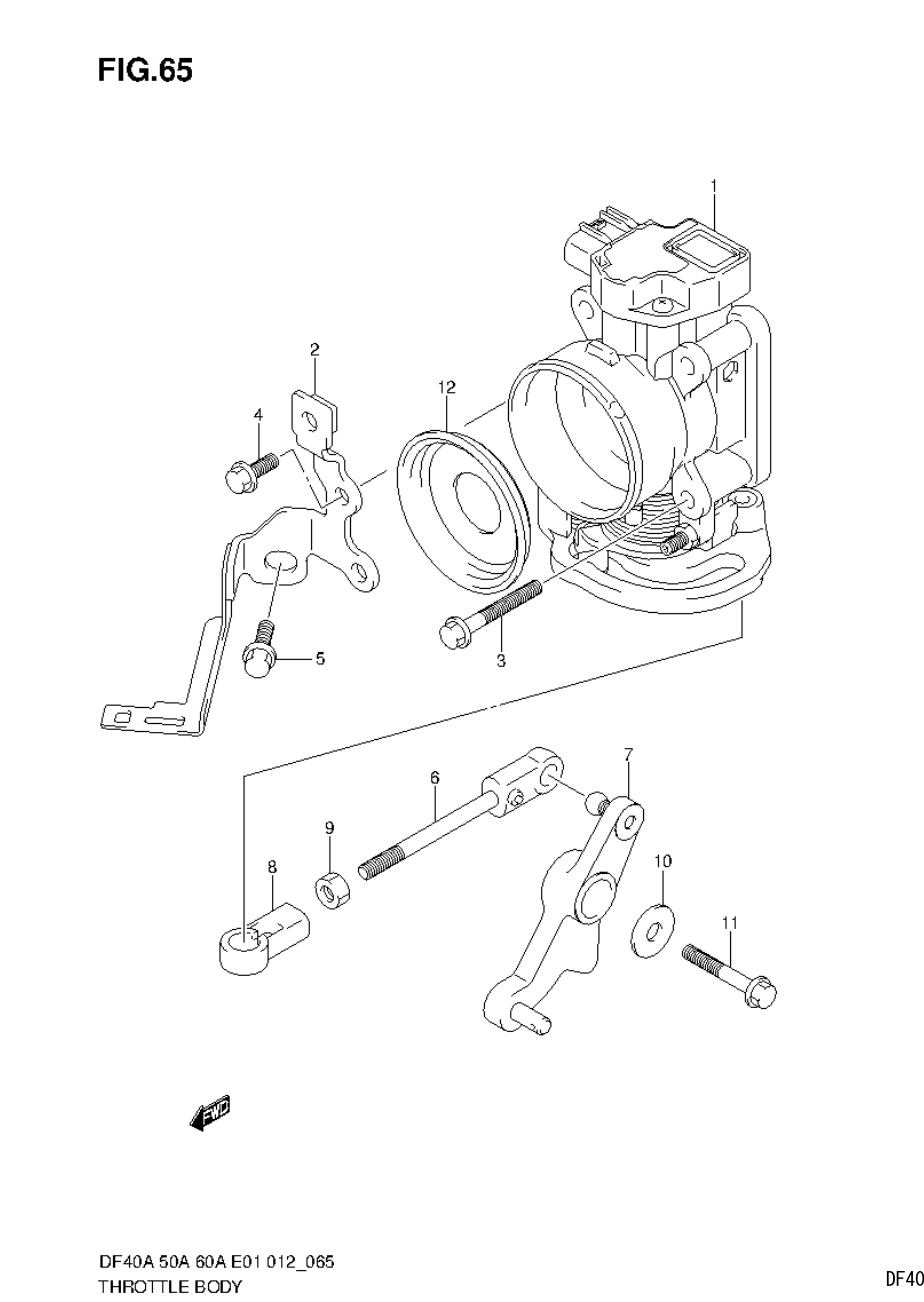

THROTTLE BODY
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
13300-88L00
BODY ASSY, THROTTLE
|
1 | |
| 2 |
13315-88L00
BRACKET, THROTTLE BODY
|
1 | |
| 3 |
01550-06457
BOLT
|
4 | |
| 4 |
01550-06167
BOLT
|
2 |
Price: 5.21 AED
Stock: 11
|
| 5 |
01550-08207
BOLT
|
1 | |
| 6 |
13510-88L00
ROD, THROTTLE
|
1 | |
| 7 |
19120-88L01
df40a-e01
LEVER, THROTTLE
|
1 | |
| 7 |
19120-88L01
df40ast-e34
LEVER, THROTTLE
|
1 | |
| 7 |
19120-88L11
df40aqh-e01
LEVER, THROTTLE
|
1 | |
| 8 |
19131-95502
CONNECTOR, THROTTLE ROD
|
1 |
Price: 15.64 AED
Stock: 89
|
| 9 |
09140-05005
NUT
|
1 | |
| 10 |
09160-06047
WASHER (6.5X20X2)
|
1 | |
| 11 |
01550-06407
BOLT
|
1 | |
| 12 |
13815-88L00
df40ast-e34
RESTRICTOR, INTAKE
|
1 |
