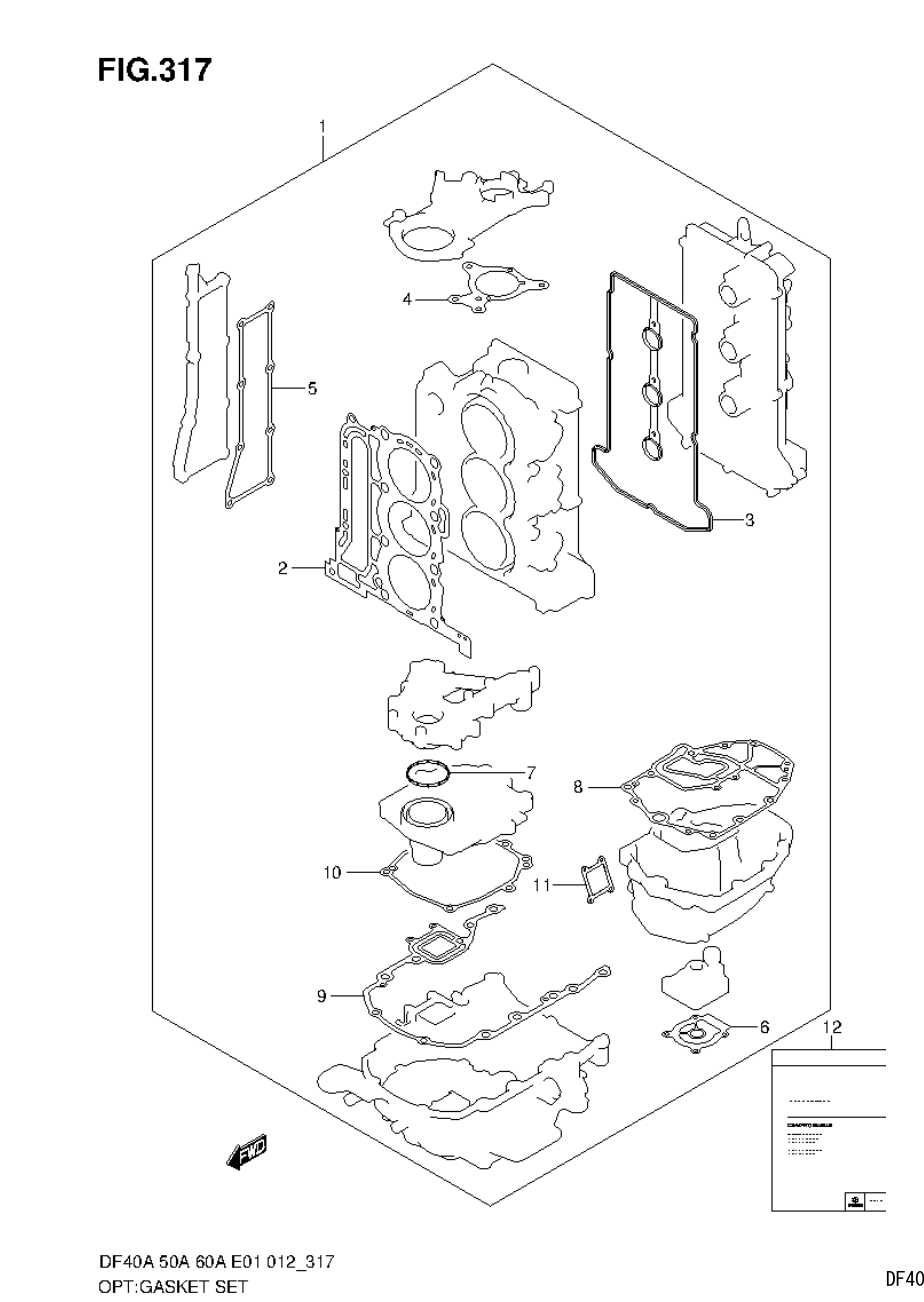

Suzuki DF50 – OPT:GASKET SET
OPT:GASKET SET (v2)
Model code: DF50
Parts list
OPT:GASKET SET
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
11400-88870
GASKET SET
|
1 | |
| 2 |
11141-88L00
.GASKET, CYLINDER HEAD
|
1 | |
| 3 |
11189-88L00
.GASKET, CYLINDER HEAD COVER
|
1 | |
| 4 |
11413-88L00
.GASKET, UPPER OIL SEAL
|
1 | |
| 5 |
14151-88L00
.GASKET, EXHAUST COVER
|
1 | |
| 6 |
17472-96303
.GASKET, PUMP CASE UNDER
|
1 | |
| 7 |
11433-88L00
.GASKET, UNDER OIL SEAL
|
1 | |
| 8 |
11489-88L00
.GASKET, OIL PAN
|
1 | |
| 9 |
51211-88L00
.GASKET, ENGINE HOLDER
|
1 | |
| 10 |
51123-88L00
.GASKET, MOUNT CASE COVER
|
1 | |
| 11 |
11552-88L00
.GASKET, OIL PAN WTR JKT COV
|
1 | |
| 12-1 |
99011-88L10-054
MANUAL, OWNER'S
|
1 | |
| 12-2 |
99011-88L10-059
MANUAL, OWNER'S
|
1 |
