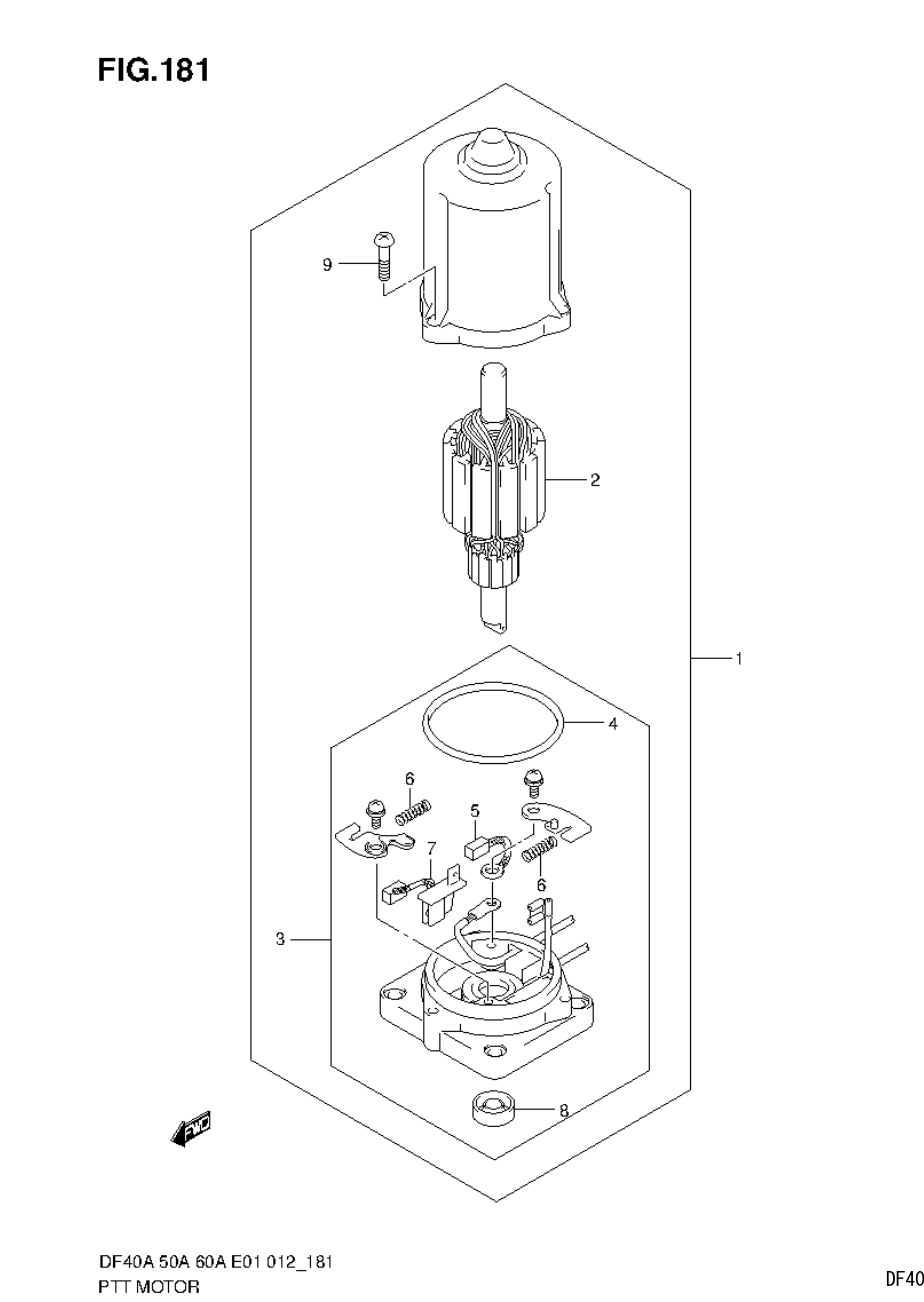

Suzuki DF50 – PTT MOTOR
PTT MOTOR (v2)
Model code: DF50
Parts list
PTT MOTOR
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
38100-88L11
MOTOR ASSY, PTT
|
1 | |
| 2 |
31311-87J10
.ARMATURE
|
1 | |
| 3 |
31173-88L11
.HOLDER ASSY, BRUSH
|
1 | |
| 4 |
31123-97E10
..O RING
|
1 | |
| 5 |
31133-94900
..BRUSH
|
1 | |
| 6 |
31135-94900
..SPRING
|
2 |
Price: 11.17 AED
Stock: 462
|
| 7 |
31136-87J10
..BREAKER ASSY
|
1 | |
| 8 |
33799-97E00
..SEAL, OIL
|
1 |
Price: 80.45 AED
Stock: 6
|
| 9 |
31111-87J10
.SCREW
|
3 |
