Suzuki DF50 – OPT:METER
OPT:METER (v2)
Model code: DF50
Parts list

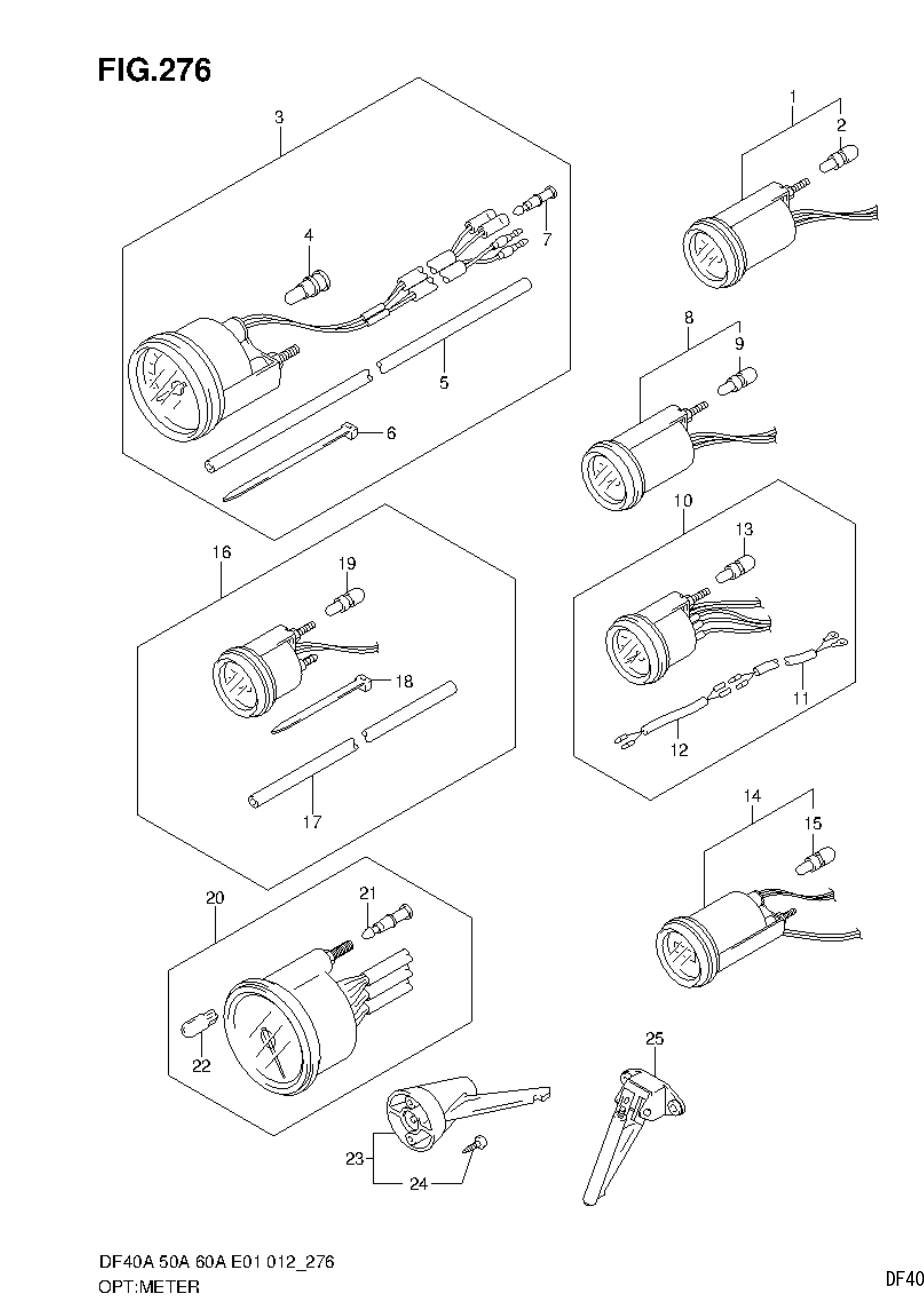

OPT:METER
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1-1 |
34800-93J00
METER ASSY, TRIM
BLACK
|
1 |
Price: 340.00 AED
Stock: 0
|
| 1-2 |
34800-93J11
METER ASSY, TRIM
WHITE
|
1 | |
| 2 |
09471-12103
.BULB (12V3.4W,T6.5)
|
1 |
Price: 9.68 AED
Stock: 10
|
| 3-1 |
34100-93J00
SPEEDOMETER ASSY
MAX 130KM/H BLACK
|
1 | |
| 3-2 |
34100-93J11
SPEEDOMETER ASSY
MAX 130KM/H WHITE
|
1 | |
| 3-3 |
34100-93J20
SPEEDOMETER ASSY
MAX 80KM/H BLACK
|
1 | |
| 3-4 |
34100-93J31
SPEEDOMETER ASSY
MAX 80KM/H WHITE
|
1 | |
| 3-5 |
34100-93J40
SPEEDOMETER ASSY
MAX 45KNOTS BLACK
|
1 | |
| 3-6 |
34100-93J51
SPEEDOMETER ASSY
MAX 45KNOTS WHITE
|
1 | |
| 3-7 |
34100-93J60
SPEEDOMETER ASSY
MAX 65KNOTS WHITE
|
1 | |
| 4 |
09471-12028
.BULB (12V,3.4W,T10)
|
1 |
Price: 4.47 AED
Stock: 10
|
| 5 |
34191-92E00
.TUBE
|
1 | |
| 6 |
09407-14407
.CLAMP (L:145)
|
2 |
Price: 11.17 AED
Stock: 10
|
| 7 |
36615-96300
.TERMINAL, RESIN
|
2 | |
| 8-1 |
34600-93J00
METER ASSY, VOLTAGE
BLACK
|
1 | |
| 8-2 |
34600-93J11
METER ASSY, VOLTAGE
WHITE
|
1 | |
| 10-1 |
34300-93J00
GAUGE ASSY, FUEL
BLACK
|
1 | |
| 10-2 |
34300-93J11
GAUGE ASSY, FUEL
WHITE
|
1 | |
| 11 |
34310-92E00
.LEAD, FUEL GAUGE
|
1 | |
| 12 |
34360-92E00
.ADAPTER, FUEL GAUGE
|
1 | |
| 14-1 |
34500-93J00
METER ASSY, HOUR
BLACK
|
1 | |
| 14-2 |
34500-93J11
METER ASSY, HOUR
WHITE
|
1 | |
| 16-1 |
34650-93J20
GAUGE ASSY, WATER PRESSURE
15PSI BLACK
|
1 | |
| 16-2 |
34650-93J31
GAUGE ASSY, WATER PRESSURE
15PSI WHITE
|
1 | |
| 20-1 |
34200-93J00
TACHOMETER ASSY, WITH MONITOR
BLACK
|
1 | |
| 20-2 |
34200-93J11
TACHOMETER ASSY, WITH MONITOR
WHITE
|
1 | |
| 21 |
36615-96300
.TERMINAL, RESIN
|
4 | |
| 22 |
09471-12077
.BULB (12V1.7W,T10)
|
1 | |
| 23 |
34190-95500
SENDER ASSY, SPEEDOMETER
|
1 | |
| 23-1 |
34200-93J40
df50a-e01
TACHOMETER ASSY, WITH MONITOR
BLACK
|
1 | |
| 23-2 |
34200-93J50
df50a-e01
TACHOMETER ASSY, WITH MONITOR
WHITE
|
1 | |
| 24 |
03112-06303
.SCREW
|
2 | |
| 25 |
34190-87D00
SENDER, SPEEDOMETER
|
1 |
