115BET’01
Section 21: LOWER CASING. DRIVE 2 (v2)
Engine sections in this catalog
TOP COWLING
ELECTRICAL 1
ELECTRICAL 2
STARTING MOTOR
BOTTOM COWLING
CONTROL
BRACKET 1
BRACKET 2
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
CYLINDER. CRANKCASE 1
LOWER CASING. DRIVE 1
LOWER CASING. DRIVE 2
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
REPAIR KIT 1
REPAIR KIT 2
CRANKSHAFT. PISTON
CYLINDER. CRANKCASE 2
INTAKE
CARBURETOR
FUEL 1
FUEL 2
GENERATOR

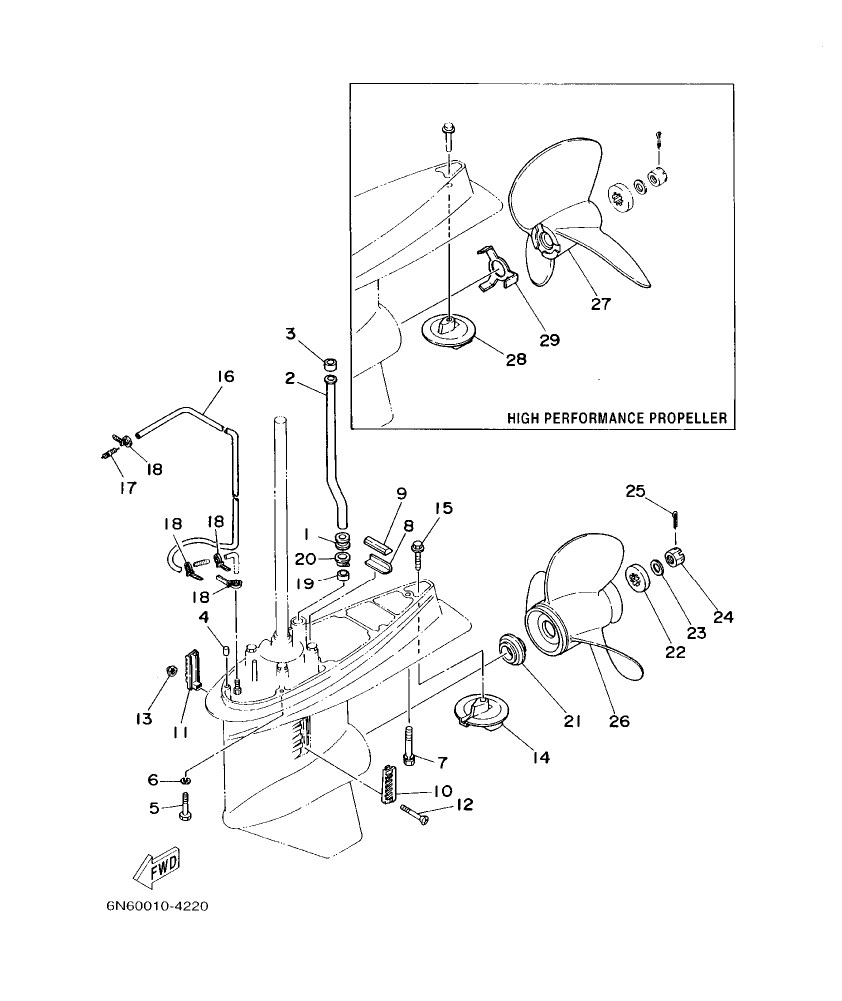

Diagram for section 21: LOWER CASING. DRIVE 2.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6E5–44366–00
DAMPER, WATER SEAL
|
1 | Ask on WhatsApp |
| 2 |
6E5–44361–00
TUBE, WATER
|
1 | Ask on WhatsApp |
| 3 |
6E5–44365–00
DAMPER, WATER SEAL
|
1 | Ask on WhatsApp |
| 4 |
93608–12M05
PIN, DOWEL
|
2 | Ask on WhatsApp |
| 5 |
97075–10045
BOLT
|
6 | Ask on WhatsApp |
| 6 |
6E5–45943–00–EL
PROPELLER (3X12–5/8”X21”–K)
|
1 | Ask on WhatsApp |
| 6 |
6E5–45947–00–EL
PROPELLER (3X13–1/2”X15”–K)
|
1 | Ask on WhatsApp |
| 6 |
6E5–45949–00–EL
PROPELLER (3X13–5/8”X13”–K)
|
1 | Ask on WhatsApp |
| 6 |
6E5–45952–00–EL
PROPELLER (3X13”X23”–K)
|
1 | Ask on WhatsApp |
| 6 |
6E5–45954–00–EL
PROPELLER (3X14”X11”–K)
|
1 | Ask on WhatsApp |
| 6 |
6E5–45956–00–EL
PROPELLER (3X13”X25”–K)
|
1 | Ask on WhatsApp |
| 6 |
6E5–45972–10
PROPELLER (3X14”X24”–P)
|
1 | Ask on WhatsApp |
| 6 |
6E5–45974–10
PROPELLER (3X14”X28”–P)
|
1 | Ask on WhatsApp |
| 6 |
6E5–45976–10
PROPELLER (3X14”X22”–P)
|
1 | Ask on WhatsApp |
| 6 |
6E5–45978–10
PROPELLER (3X14”X26”–P)
|
1 | Ask on WhatsApp |
| 6 |
92995–10100
WASHER
|
6 | Ask on WhatsApp |
| 7 |
90119–10M89
BOLT, WITH WASHER
|
1 | Ask on WhatsApp |
| 8 |
663–45376–00–94
GUIDE, SEAL DAMPER
|
1 | Ask on WhatsApp |
| 9 |
688–45375–00
DAMPER, SEAL
|
1 | Ask on WhatsApp |
| 10 |
688–45214–02
COVER, WATER INLET
|
1 | Ask on WhatsApp |
| 11 |
688–45215–02
COVER, WATER INLET
|
1 | Ask on WhatsApp |
| 12 |
90152–05M07
SCREW, COUNTERSUNK
|
1 | Ask on WhatsApp |
| 13 |
90185–05002
NUT, SELF–LOCKING
|
1 | Ask on WhatsApp |
| 14 |
6E5–45371–01
TAB–TRIM
|
1 | Ask on WhatsApp |
| 15 |
90105–10M00
BOLT, WASHER BASED
|
1 | Ask on WhatsApp |
| 16 |
90445–07MF0
HOSE (L1030)
|
1 | Ask on WhatsApp |
| 17 |
6E5–83558–00
END, NIPPLE
|
1 | Ask on WhatsApp |
| 18 |
90465–11M10
CLAMP
|
4 | Ask on WhatsApp |
| 19 |
6E5–44365–00
DAMPER, WATER SEAL
|
1 | Ask on WhatsApp |
| 20 |
6E5–44312–00
COVER, WATER PUMP HOUSING
|
1 | Ask on WhatsApp |
| 21 |
6E5–45987–01
SPACER
|
1 | Ask on WhatsApp |
| 22 |
688–45997–01
SPACER
|
1 | Ask on WhatsApp |
| 23 |
92990–18200
WASHER
|
1 | Ask on WhatsApp |
| 24 |
90171–18M04
NUT, CASTLE
|
1 | Ask on WhatsApp |
| 25 |
91490–40030
PIN, COTTER
|
1 | Ask on WhatsApp |
| 26 |
6E5–45941–00–EL
PROPELLER (3X13”X19”–K)
|
1 | Ask on WhatsApp |
| 26 |
6E5–45945–01–EL
PROPELLER (3X13–1/4”X17”–K)
|
1 | Ask on WhatsApp |
| 27 |
6E5–45970–10
PROPELLER (3X14”X20”–P)
|
1 | Ask on WhatsApp |
| 28 |
6E5–45371–10
TAB–TRIM
|
1 | Ask on WhatsApp |
| 29 |
6E5–45994–10
PLATE, TOOTH
|
1 | Ask on WhatsApp |
| 688 |
688–45930–02–98
PROPELLER (3X13”X17”–K)
|
1 | Ask on WhatsApp |
| 688 |
688–45932–60–98
PROPELLER (3X13–1/2”X14”–K)
|
1 | Ask on WhatsApp |
| 688 |
688–45970–03–98
PROPELLER (3X13”X19”–K)
|
1 | Ask on WhatsApp |
| 688 |
688–45972–02–98
PROPELLER (3X13”X21”–K)
|
1 | Ask on WhatsApp |
| 688 |
688–45974–02–98
PROPELLER (3X13”X23”–K)
|
1 | Ask on WhatsApp |
| 688 |
688–45976–01–98
PROPELLER (3X13”X25”–K)
|
1 | Ask on WhatsApp |
| 688 |
688–45978–60–98
PROPELLER (3X13–1/2”X16”–K)
|
1 | Ask on WhatsApp |
