115BET’01
Section 19: UPPER CASING (v2)
Engine sections in this catalog
TOP COWLING
ELECTRICAL 1
ELECTRICAL 2
STARTING MOTOR
BOTTOM COWLING
CONTROL
BRACKET 1
BRACKET 2
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
CYLINDER. CRANKCASE 1
LOWER CASING. DRIVE 1
LOWER CASING. DRIVE 2
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
REPAIR KIT 1
REPAIR KIT 2
CRANKSHAFT. PISTON
CYLINDER. CRANKCASE 2
INTAKE
CARBURETOR
FUEL 1
FUEL 2
GENERATOR

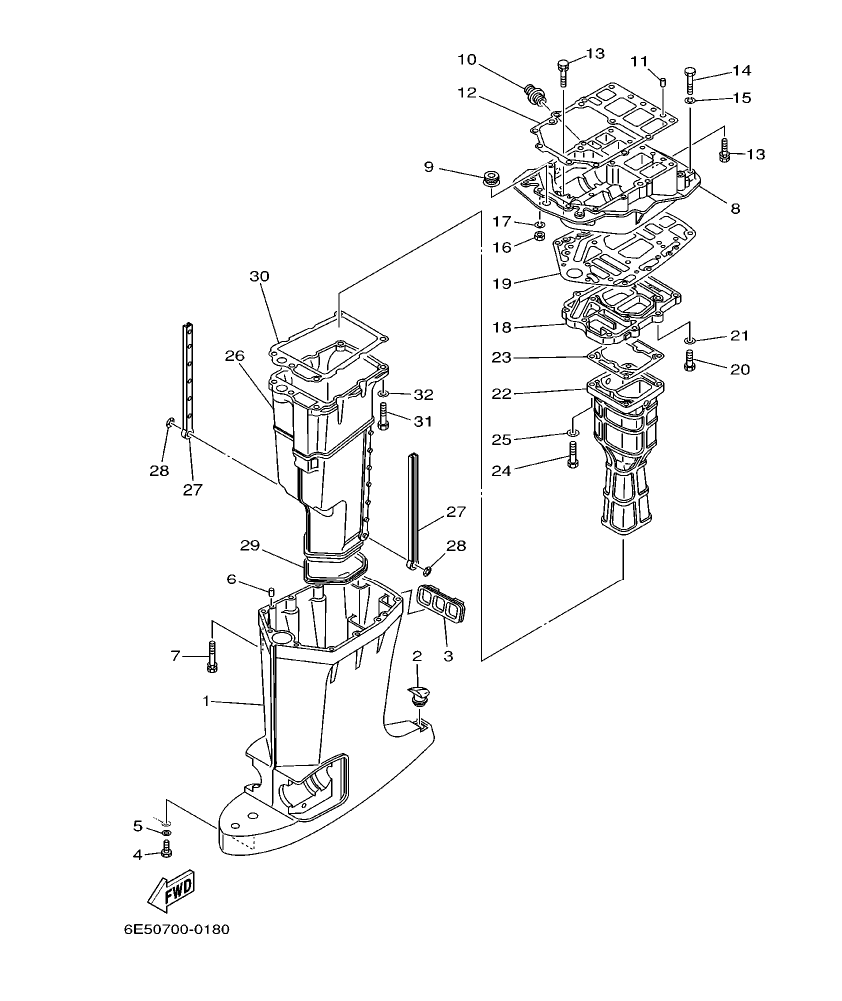

Diagram for section 19: UPPER CASING.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6E5–45111–02–8D
CASING, UPPER
|
1 | Ask on WhatsApp |
| 2 |
6E5–45155–00
CAP
|
1 | Ask on WhatsApp |
| 3 |
6E5–42769–00
SEAL, RUBBER
|
1 | Ask on WhatsApp |
| 4 |
97095–06010
BOLT
|
1 | Ask on WhatsApp |
| 5 |
92995–06600
WASHER
|
1 | Ask on WhatsApp |
| 6 |
93608–12M05
PIN, DOWEL
|
2 | Ask on WhatsApp |
| 7 |
90119–08M78
BOLT, WITH WASHER
|
6 | Ask on WhatsApp |
| 8 |
6G5–41137–02–94
GUIDE, EXHAUST
|
1 | Ask on WhatsApp |
| 9 |
6E5–42724–00
GROMMET
|
1 | Ask on WhatsApp |
| 10 |
6G5–12581–00
JOINT, HOSE 1
|
1 | Ask on WhatsApp |
| 11 |
93608–12M05
PIN, DOWEL
|
2 | Ask on WhatsApp |
| 12 |
6G5–45113–A1
GASKET, UPPER CASING
|
1 | Ask on WhatsApp |
| 13 |
90119–08M79
BOLT, WITH WASHER
|
6 | Ask on WhatsApp |
| 14 |
97095–08045
BOLT
|
2 | Ask on WhatsApp |
| 15 |
92995–08100
WASHER
|
2 | Ask on WhatsApp |
| 16 |
95380–08700
NUT
|
2 | Ask on WhatsApp |
| 17 |
92995–08100
WASHER
|
2 | Ask on WhatsApp |
| 18 |
6G5–41131–01–5B
MANIFOLD, EXT. 1
|
1 | Ask on WhatsApp |
| 19 |
6G5–45114–A0
GASKET, UPPER CASING
|
1 | Ask on WhatsApp |
| 20 |
97095–08030
BOLT
|
4 | Ask on WhatsApp |
| 21 |
92995–08600
WASHER
|
4 | Ask on WhatsApp |
| 22 |
6E5–41132–10–5B
MANIFOLD, EXHAUST
|
1 | Ask on WhatsApp |
| 23 |
6E5–41134–A0
GASKET, EXHAUST MANIFOLD
|
1 | Ask on WhatsApp |
| 24 |
97095–08045
BOLT
|
4 | Ask on WhatsApp |
| 25 |
92995–08600
WASHER
|
4 | Ask on WhatsApp |
| 26 |
6E5–14711–01–5B
MUFFLER 1
|
1 | Ask on WhatsApp |
| 27 |
6E5–14737–00
DAMPER, MUFFLER
|
2 | Ask on WhatsApp |
| 28 |
90183–05M02
NUT, SPRING
|
2 | Ask on WhatsApp |
| 29 |
6E5–45123–00
GASKET, MUFFLER
|
1 | Ask on WhatsApp |
| 30 |
6E5–41135–A0
GASKET, EXHAUST MANIFOLD
|
1 | Ask on WhatsApp |
| 31 |
97095–08045
BOLT
|
5 | Ask on WhatsApp |
| 32 |
92995–08600
WASHER
|
5 | Ask on WhatsApp |
