FT25FET
Section 21: BRACKET 2 (v2)
Engine sections in this catalog
TOP COWLING
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
ELECTRICAL 4
ELECTRICAL 5
STARTING MOTOR
BOTTOM COWLING 1
BOTTOM COWLING 2
CONTROL
CYLINDER & CRANKCASE 1
BRACKET 1
BRACKET 2
POWER TRIM & TILT ASSY
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
FUEL TANK
STEERING GUIDE
REMOTE CONTROL BOX
CRANKSHAFT & PISTON
REMOTE CONTROL ASSY
REPAIR KIT 1
REPAIR KIT 2
REPAIR KIT 3
CYLINDER & CRANKCASE 2
VALVE
INTAKE
CARBURETOR
OIL PUMP
FUEL

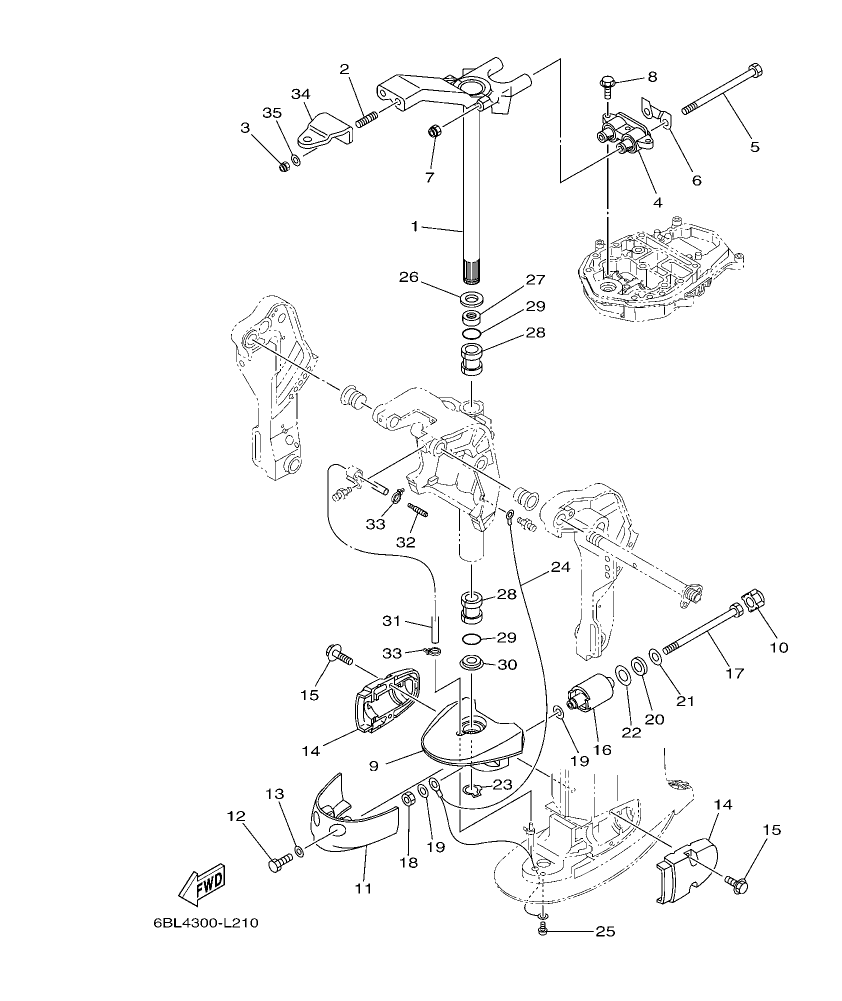

Diagram for section 21: BRACKET 2.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6BG–42510–10–4D
STEERING BRACKET ASSY
|
1 | Ask on WhatsApp |
| 2 |
90116–10M28
BOLT, STUD
|
2 | Ask on WhatsApp |
| 3 |
90185–10051
NUT, SELF-LOCKING
|
2 | Ask on WhatsApp |
| 4 |
67C–44514–10–94
MOUNT DAMPER, UPPER SIDE
|
1 | Ask on WhatsApp |
| 5 |
90101–08M15
BOLT
|
2 | Ask on WhatsApp |
| 6 |
66T–44526–30
PLATE
|
1 | Ask on WhatsApp |
| 7 |
90185–08045
NUT, SELF-LOCKING
|
2 | Ask on WhatsApp |
| 8 |
97575–08530
BOLT, WITH WASHER
|
3 | Ask on WhatsApp |
| 9 |
67C–44551–10–4D
HOUSING, LOWER MOUNT RUBBER 1
|
1 | Ask on WhatsApp |
| 10 |
69W–44575–00
DAMPER, LOWER MOUNT RUBBER
|
2 | Ask on WhatsApp |
| 11 |
67C–44553–00–4D
COVER, LOWER MOUNT
|
1 | Ask on WhatsApp |
| 12 |
97095–08020
BOLT
|
2 | Ask on WhatsApp |
| 13 |
92995–08600
WASHER
|
2 | Ask on WhatsApp |
| 14 |
6C5–44552–00–4D
HOUSING, LOWER MOUNT RUBBER 2
|
2 | Ask on WhatsApp |
| 15 |
97575–08530
BOLT, WITH WASHER
|
4 | Ask on WhatsApp |
| 16 |
68U–44555–11
MOUNT DAMPER, LOWER SIDE
|
2 | Ask on WhatsApp |
| 17 |
90109–12MA3
BOLT
|
2 | Ask on WhatsApp |
| 18 |
95380–12700
NUT
|
2 | Ask on WhatsApp |
| 19 |
90201–12M16
WASHER, PLATE
|
4 | Ask on WhatsApp |
| 20 |
90202–21100
WASHER, PLATE
|
2 | Ask on WhatsApp |
| 21 |
90201–13M19
WASHER, PLATE
|
2 | Ask on WhatsApp |
| 22 |
90201–22M05
WASHER, PLATE
|
2 | Ask on WhatsApp |
| 23 |
93410–28M06
CIRCLIP
|
1 | Ask on WhatsApp |
| 24 |
67C–82127–10
WIRE, LEAD 2
|
1 | Ask on WhatsApp |
| 25 |
97885–06008
SCREW, PAN HEAD
|
1 | Ask on WhatsApp |
| 26 |
90201–30M00
WASHER, PLATE
|
1 | Ask on WhatsApp |
| 27 |
90386–30M78
BUSH
|
1 | Ask on WhatsApp |
| 28 |
90386–30M77
BUSH
|
2 | Ask on WhatsApp |
| 29 |
93210–29M94
O-RING
|
2 | Ask on WhatsApp |
| 30 |
90386–30M60
BUSH
|
1 | Ask on WhatsApp |
| 31 |
90445–07M53
HOSE (L700)
|
1 | Ask on WhatsApp |
| 32 |
6E5–83558–00
END, NIPPLE
|
1 | Ask on WhatsApp |
| 33 |
90465–11M10
CLAMP
|
2 | Ask on WhatsApp |
| 34 |
65W–48511–00
HOOK, STEERING
|
1 | Ask on WhatsApp |
| 35 |
90201–10120
WASHER, PLATE
|
2 | Ask on WhatsApp |
