Section F-8: ENGINE COVER (v2)

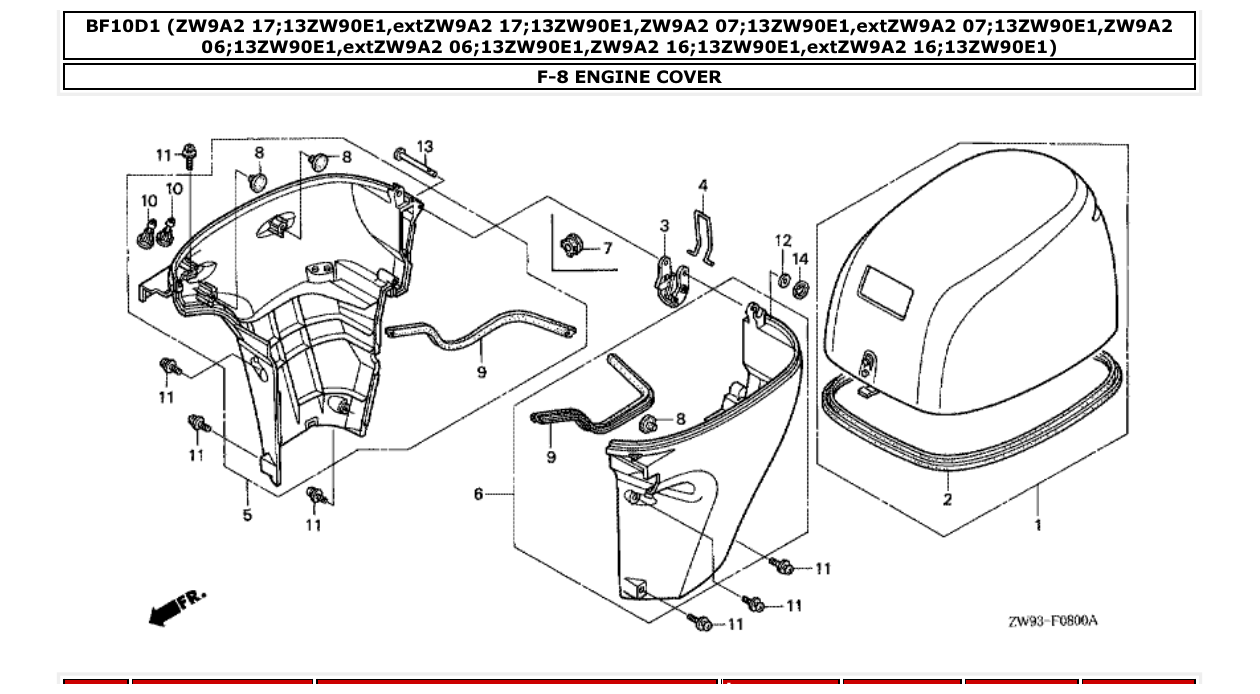

Diagram for section F-8: ENGINE COVER.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
63100ZW9010ZA
COVER COMP., ENGINE *NH282MU *
|
1 | Ask on WhatsApp |
| 2 |
63102ZW9300
SEAL, ENGINE COVER
|
1 | Ask on WhatsApp |
| 3 |
63232ZW9000
LEVER, FASTENER
|
1 | Ask on WhatsApp |
| 3 |
63232ZW9010
LEVER, FASTENER
|
1 | Ask on WhatsApp |
| 4 |
63236ZW9000
WIRE, FASTENER (3.2)
|
1 | Ask on WhatsApp |
| 4 |
63236ZW9010
WIRE, FASTENER (3.2)
|
1 | Ask on WhatsApp |
| 5 |
63710ZW9000ZA
COVER COMP., R. UNDER ENGINE *NH282MU *
|
1 | Ask on WhatsApp |
| 6 |
63715ZW9000ZA
COVER COMP., L. UNDER ENGINE *NH282MU *
|
1 | Ask on WhatsApp |
| 8 |
63718ZW9000
RUBBER, CUSHION
|
3 | Ask on WhatsApp |
| 9 |
63719ZW9000
SEAL, UNDER COVER
|
2 | Ask on WhatsApp |
| 10 |
82873ZV5000
GROMMET, WATER CHECK
|
2 | Ask on WhatsApp |
| 11 |
90181ZW9000
SCREW-WASHER, 5X10
|
10 | Ask on WhatsApp |
| 12 |
90502ZV4000
WASHER, PLAIN, 5MM
|
1 | Ask on WhatsApp |
| 13 |
90754ZW9000
PIN, 5X47
|
1 | Ask on WhatsApp |
| 14 |
91452ZW9000
RING, STOPPER
|
1 | Ask on WhatsApp |
