bf10d1
Section E-11: RECOIL STARTER (v2)

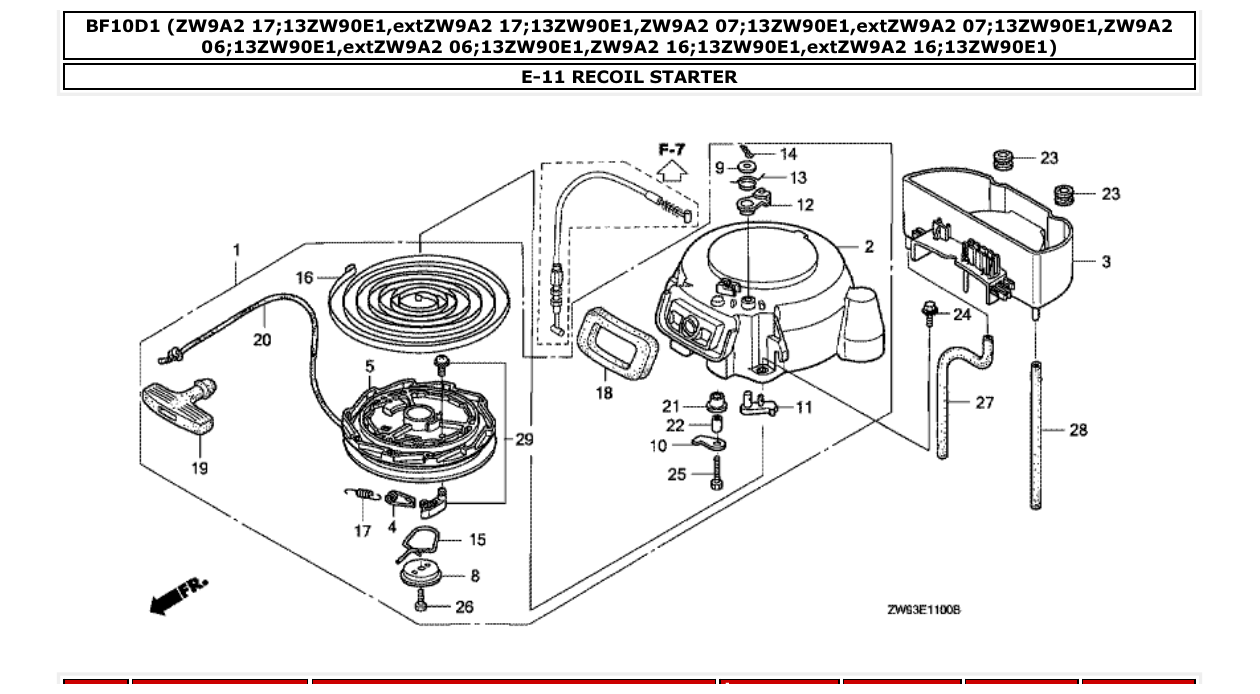

Diagram for section E-11: RECOIL STARTER.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
28400ZW9003
STARTER ASSY., RECOIL
|
1 | Ask on WhatsApp |
| 2 |
28401ZW9003
CASE, RECOIL STARTER
|
1 | Ask on WhatsApp |
| 3 |
28414ZW9000
CASE B, STARTER
|
1 | Ask on WhatsApp |
| 4 |
28418ZW9003
GUIDE, RECOIL STARTER
|
1 | Ask on WhatsApp |
| 5 |
28421ZW9003
REEL, RECOIL STARTER
|
1 | Ask on WhatsApp |
| 8 |
28431ZW9003
PLATE, FRICTION
|
1 | Ask on WhatsApp |
| 9 |
28432ZV4003
WASHER
|
1 | Ask on WhatsApp |
| 10 |
28433ZV7003
WASHER, THRUST
|
1 | Ask on WhatsApp |
| 11 |
28435ZV4003
STOPPER, REEL
|
1 | Ask on WhatsApp |
| 12 |
28436ZV4003
ARM, STOPPER
|
1 | Ask on WhatsApp |
| 13 |
28437ZV4003
SPRING, STOPPER
|
1 | Ask on WhatsApp |
| 14 |
28438ZV4003
PIN, SPLIT
|
1 | Ask on WhatsApp |
| 15 |
28441ZW9003
SPRING, FRICTION
|
1 | Ask on WhatsApp |
| 16 |
28442ZW9003
SPRING, RECOIL STARTER
|
1 | Ask on WhatsApp |
| 17 |
28443ZW9003
SPRING, RETURN
|
1 | Ask on WhatsApp |
| 18 |
28455ZW9000
SEAL, RECOIL
|
1 | Ask on WhatsApp |
| 19 |
28461ZV4003
GRIP, STARTER
|
1 | Ask on WhatsApp |
| 20 |
28462ZV4003
ROPE, RECOIL STARTER
|
1 | Ask on WhatsApp |
| 21 |
28471ZV7003
ROLLER, STARTER
|
1 | Ask on WhatsApp |
| 22 |
28476ZV7003
GUIDE, ROLLER
|
1 | Ask on WhatsApp |
