Section E-3-20: OIL CASE (v2)

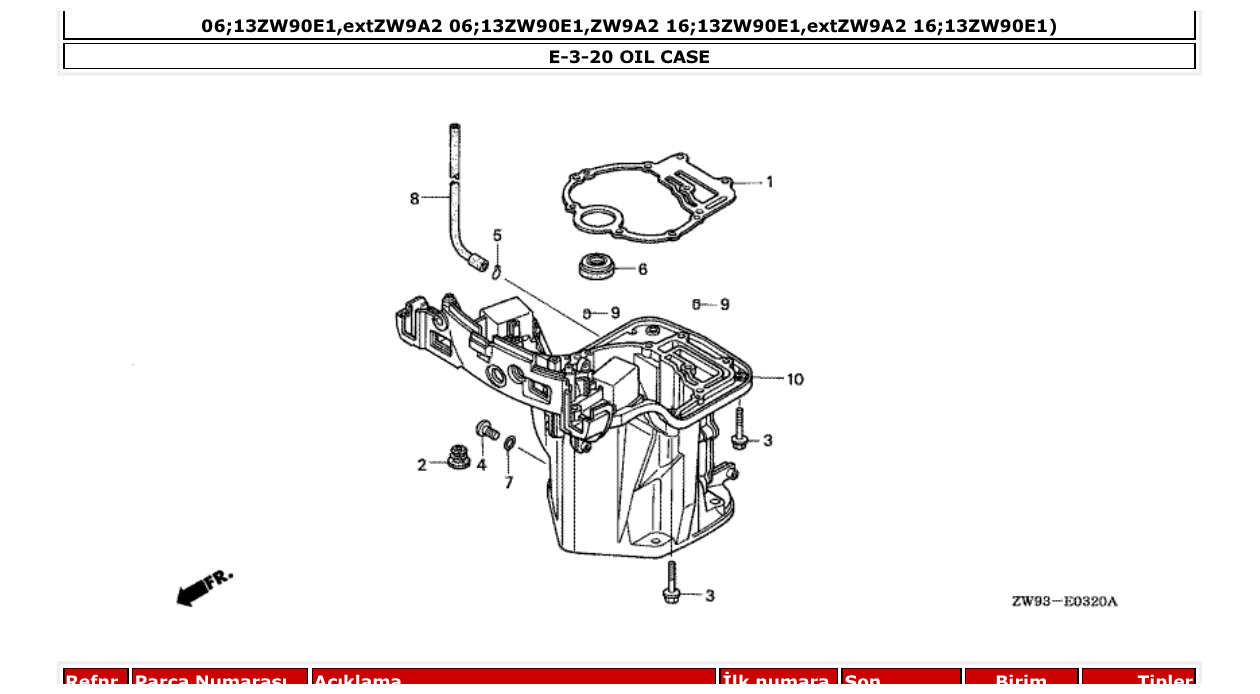

Diagram for section E-3-20: OIL CASE.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
11381ZW9003
PACKING, OIL PAN
|
1 | Ask on WhatsApp |
| 2 |
19252ZW9000
GROMMET, WATER TUBE
|
1 | Ask on WhatsApp |
| 3 |
90008ZW9000
BOLT, FLANGE, 8X35
|
9 | Ask on WhatsApp |
| 4 |
90101ZW9000
BOLT, OIL CHECK
|
1 | Ask on WhatsApp |
| 5 |
90603ZV4000
CLIP, TUBE (B10)
|
1 | Ask on WhatsApp |
| 6 |
91202ZW9003
SEAL, WATER, 13X28X7
|
1 | Ask on WhatsApp |
| 7 |
91301216000
O-RING, 5.5X1.5
|
1 | Ask on WhatsApp |
| 8 |
91402ZW9000
TUBE, WATER CHECK
|
1 | Ask on WhatsApp |
| 9 |
9430106100
DOWEL PIN, 6X10
|
2 | Ask on WhatsApp |
| 10 |
11321ZW9405
CASE, OIL
|
1 | Ask on WhatsApp |
