bf5am
Section E-9: CAMSHAFT/VALVE (v2)

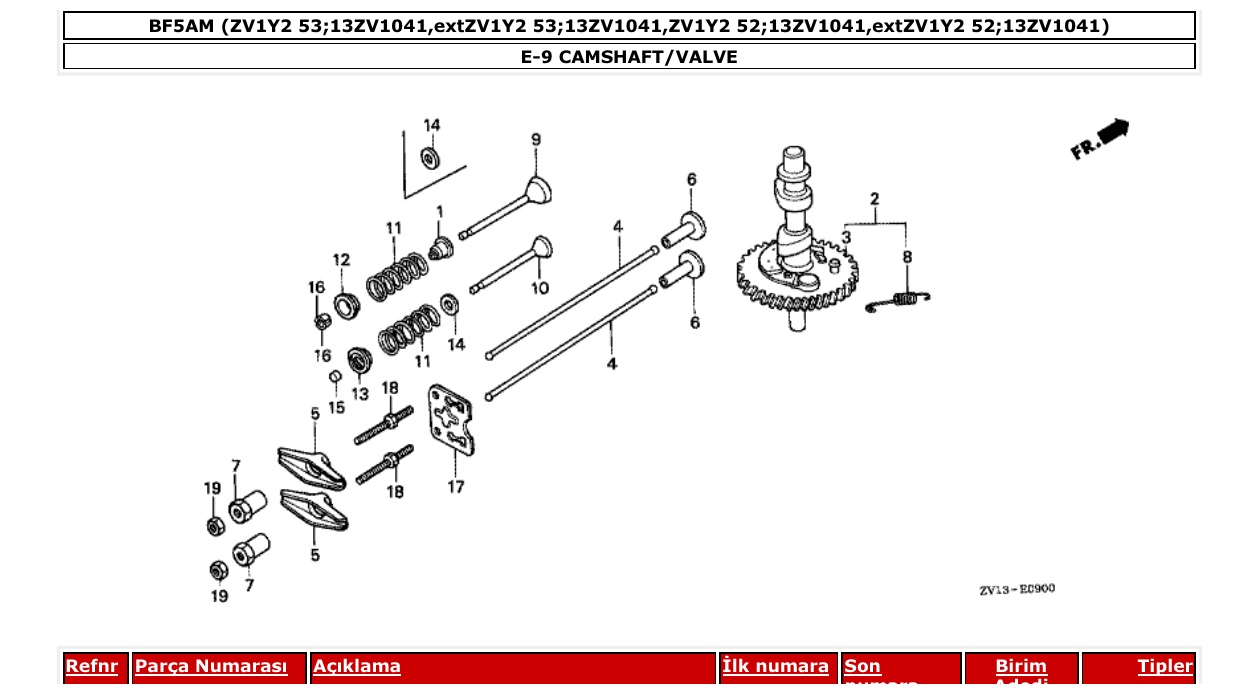

Diagram for section E-9: CAMSHAFT/VALVE.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
12209ZE6G02
SEAL, VALVE STEM
|
1 | Ask on WhatsApp |
| 2 |
14100ZV1010
CAMSHAFT ASSY.
|
1 | Ask on WhatsApp |
| 3 |
14111ZV1020
CAMSHAFT
|
1 | Ask on WhatsApp |
| 4 |
14410ZE1010
ROD, PUSH
|
2 | Ask on WhatsApp |
| 5 |
14431ZE1000
ARM, VALVE ROCKER
|
2 | Ask on WhatsApp |
| 6 |
14441ZE1000
LIFTER, VALVE
|
2 | Ask on WhatsApp |
| 6 |
14441ZE1010
LIFTER, VALVE
|
2 | Ask on WhatsApp |
| 7 |
14451ZE1003
PIVOT, ROCKER ARM
|
2 | Ask on WhatsApp |
| 8 |
14568ZV1000
SPRING, WEIGHT RETURN
|
1 | Ask on WhatsApp |
| 9 |
14711ZV1000
VALVE, IN.
|
1 | Ask on WhatsApp |
| 10 |
14721ZV1000
VALVE, EX.
|
1 | Ask on WhatsApp |
| 11 |
14751ZV1000
SPRING, VALVE
|
2 | Ask on WhatsApp |
| 12 |
14771ZV1000
RETAINER, VALVE SPRING
|
1 | Ask on WhatsApp |
| 13 |
14773ZE1000
RETAINER, EX. VALVE SPRING
|
1 | Ask on WhatsApp |
| 14 |
14775028010
SEAT, VALVE SPRING
|
1 | Ask on WhatsApp |
| 14 |
14775028010
SEAT, VALVE SPRING
|
2 | Ask on WhatsApp |
| 15 |
14781ZE1000
ROTATOR, VALVE
|
1 | Ask on WhatsApp |
| 16 |
14781107003
COTTER, VALVE (SANKO)
|
2 | Ask on WhatsApp |
| 17 |
14791ZE1010
PLATE, PUSH ROD GUIDE
|
1 | Ask on WhatsApp |
| 18 |
90012ZE0010
BOLT, PIVOT, 8MM
|
2 | Ask on WhatsApp |
| 19 |
90206ZE1000
NUT, PIVOT ADJUSTING
|
2 | Ask on WhatsApp |
