bf5am
Section E-11: RECOIL STARTER (v2)

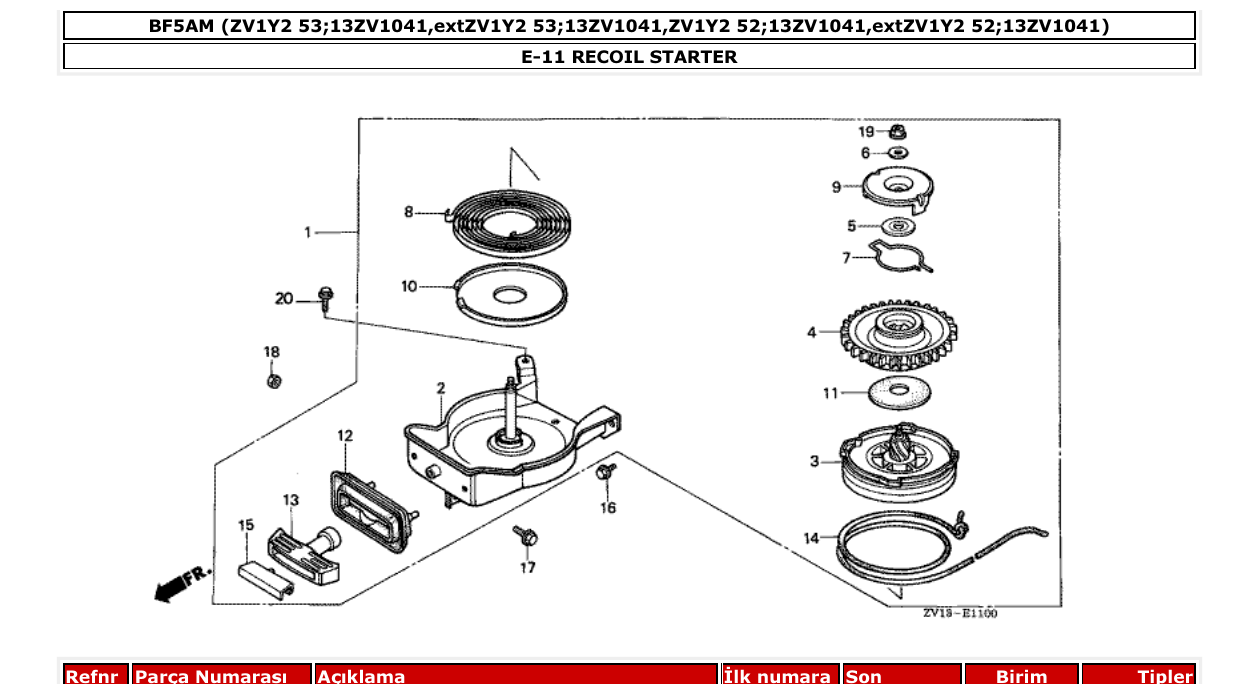

Diagram for section E-11: RECOIL STARTER.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
28400ZV1013ZB
STARTER ASSY., RECOIL *TBLACK *
|
1 | Ask on WhatsApp |
| 1 |
28400ZV1023ZB
STARTER ASSY., RECOIL *TBLACK *
|
1 | Ask on WhatsApp |
| 2 |
28410ZV1003ZB
CASE COMP., RECOIL STARTER *TBLACK *
|
1 | Ask on WhatsApp |
| 3 |
28421ZV1003
PULLEY, RECOIL STARTER
|
1 | Ask on WhatsApp |
| 4 |
28426ZV1003
GEAR, STARTER
|
1 | Ask on WhatsApp |
| 4 |
28426ZV1013
GEAR, STARTER
|
1 | Ask on WhatsApp |
| 5 |
28431ZV1003
WASHER, THRUST
|
1 | Ask on WhatsApp |
| 6 |
28432ZV1003
WASHER
|
1 | Ask on WhatsApp |
| 7 |
28441ZV1003
SPRING, FRICTION
|
1 | Ask on WhatsApp |
| 8 |
28442ZV1003
SPRING, STARTER RETURN
|
1 | Ask on WhatsApp |
| 9 |
28443ZV1013
RETAINER, SPRING
|
1 | Ask on WhatsApp |
| 10 |
28445ZV1003
HOLDER, SPRING
|
1 | Ask on WhatsApp |
| 11 |
28454ZV1003
RUBBER, CUSHION
|
1 | Ask on WhatsApp |
| 12 |
28455ZV1000
RUBBER, ENGINE COVER SEAL
|
1 | Ask on WhatsApp |
| 13 |
28461ZV1003
GRIP, STARTER
|
1 | Ask on WhatsApp |
| 14 |
28462ZV1003
ROPE, RECOIL STARTER
|
1 | Ask on WhatsApp |
| 15 |
28463ZV1003
CAP, GRIP
|
1 | Ask on WhatsApp |
| 16 |
90013ZV0000
BOLT, FLANGE, 6X12
|
1 | Ask on WhatsApp |
| 17 |
90128ZV1000
BOLT, FLANGE, 6X16
|
1 | Ask on WhatsApp |
| 18 |
94001060200S
NUT, HEX., 6MM
|
1 | Ask on WhatsApp |
| 19 |
9405006020
NUT, FLANGE, 6MM
|
1 | Ask on WhatsApp |
| 20 |
959000601602
BOLT, FLANGE, 6X16
|
1 | Ask on WhatsApp |
