bf5am
Section E-14: CARBURETOR (v2)

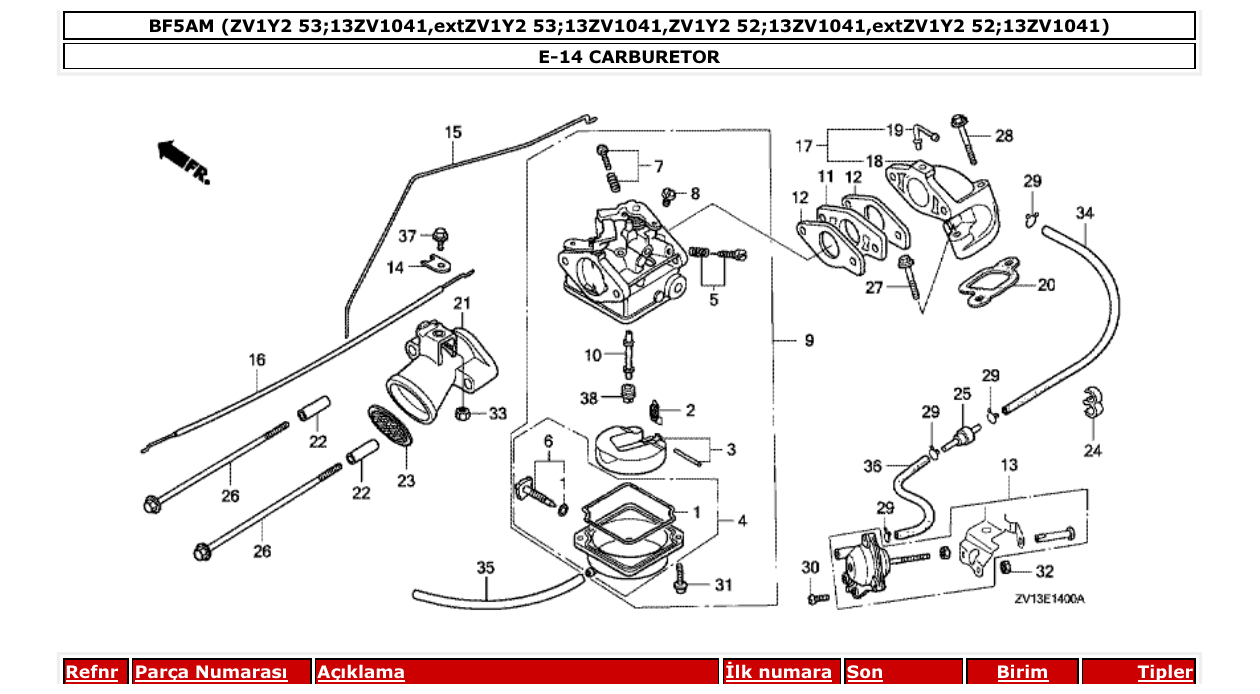

Diagram for section E-14: CARBURETOR.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
16010881003
PACKING SET
|
1 | Ask on WhatsApp |
| 1 |
16010881A00
GASKET SET BC05B C
|
1 | Ask on WhatsApp |
| 2 |
16011881741
VALVE SET, FLOAT
|
1 | Ask on WhatsApp |
| 3 |
16013881003
FLOAT SET
|
1 | Ask on WhatsApp |
| 4 |
16015ZV1A00
CHAMBER SET, FLOAT
|
1 | Ask on WhatsApp |
| 5 |
16016881A00
SCREW SET A BC05B C
|
1 | Ask on WhatsApp |
| 5 |
16016ZV1A00
SCREW SET BC05B B
|
1 | Ask on WhatsApp |
| 6 |
16024ZV1A00
SCREW SET, DRAIN
|
1 | Ask on WhatsApp |
| 7 |
16028ZV1A00
SCREW SET
|
1 | Ask on WhatsApp |
| 8 |
991038810400
JET COMP. (#40) BC05B C
|
1 | Ask on WhatsApp |
| 9 |
16100ZV1A00
CARBURETOR ASSY. (BC05B A)
|
1 | Ask on WhatsApp |
| 9 |
16100ZV1A02
CARBURETOR ASSY. (BC05B C)
|
1 | Ask on WhatsApp |
| 10 |
16166ZV1A00
NOZZLE, MAIN BC05C A
|
1 | Ask on WhatsApp |
| 11 |
16211ZV1000
INSULATOR, CARBURETOR
|
1 | Ask on WhatsApp |
| 12 |
16221ZV1850
PACKING, CARBURETOR
|
2 | Ask on WhatsApp |
| 13 |
16400ZV1005
DIAPHRAGM ASSY.
|
1 | Ask on WhatsApp |
| 14 |
16576ZV0000
HOLDER, CABLE
|
1 | Ask on WhatsApp |
| 15 |
16593ZV1000
ROD, THROTTLE
|
1 | Ask on WhatsApp |
| 16 |
16620ZV1A00
CABLE COMP., CHOKE
|
1 | Ask on WhatsApp |
| 17 |
17101ZV1000ZA
MANIFOLD COMP., INTAKE *NH8 *
|
1 | Ask on WhatsApp |
| 18 |
17101ZV1010ZA
MANIFOLD, INTAKE *NH8 *
|
1 | Ask on WhatsApp |
| 19 |
17105ZV1300
JOINT, TUBE
|
1 | Ask on WhatsApp |
| 20 |
17151ZV1850
PACKING, INTAKE MANIFOLD
|
1 | Ask on WhatsApp |
| 21 |
17201ZV1A00
GUIDE COMP., AIR
|
1 | Ask on WhatsApp |
| 21 |
17201ZV1C50
GUIDE COMP., AIR
|
1 | Ask on WhatsApp |
| 22 |
17202ZV1000
COLLAR, DISTANCE
|
2 | Ask on WhatsApp |
| 23 |
17203881000
TRAP, FLAME
|
1 | Ask on WhatsApp |
| 23 |
17203ZV4000
TRAP, FLAME
|
1 | Ask on WhatsApp |
| 24 |
17915PC0000
CLIP, TUBE
|
1 | Ask on WhatsApp |
| 25 |
36135ZV1003
VALVE, DASHPOT CHECK
|
1 | Ask on WhatsApp |
| 26 |
90012ZV1000
BOLT, FLANGE, 6X102
|
2 | Ask on WhatsApp |
| 27 |
90015ZV0000
BOLT, FLANGE, 6X28
|
1 | Ask on WhatsApp |
| 28 |
90125ZV1000
BOLT, FLANGE, 6X42
|
1 | Ask on WhatsApp |
| 29 |
90605921000
CLIP B7, TUBE
|
4 | Ask on WhatsApp |
| 30 |
93500050120B
SCREW, PAN, 5X12
|
2 | Ask on WhatsApp |
| 31 |
16081ZV1A00
SCREW, PAN
|
2 | Ask on WhatsApp |
| 32 |
94001054900S
NUT, HEX., 5MM
|
2 | Ask on WhatsApp |
