Section F-10: STERN BRACKET/ADJUST ROD (v2)

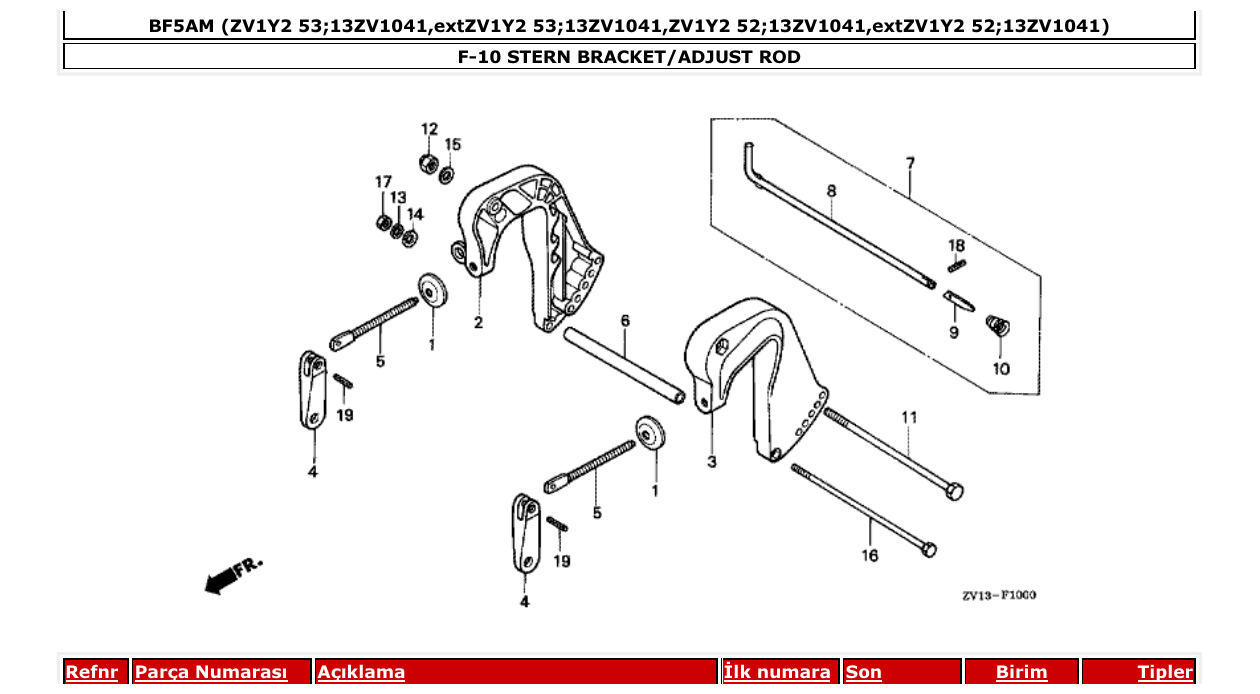

Diagram for section F-10: STERN BRACKET/ADJUST ROD.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
50122935010
PLATE, PUSH
|
2 | Ask on WhatsApp |
| 2 |
50300ZV1841ZB
BRACKET COMP., R. STERN *NH282MU *
|
1 | Ask on WhatsApp |
| 3 |
50310ZV1841ZB
BRACKET COMP., L. STERN *NH282MU *
|
1 | Ask on WhatsApp |
| 4 |
50323ZV1300
GRIP, CLAMP
|
2 | Ask on WhatsApp |
| 5 |
50325ZV1310
SCREW, CLAMP
|
2 | Ask on WhatsApp |
| 6 |
50335ZV1000
COLLAR, DISTANCE, 6MM
|
1 | Ask on WhatsApp |
| 7 |
50340ZV1000
ROD COMP., ADJUSTING
|
1 | Ask on WhatsApp |
| 8 |
50341ZV1310
ROD, ADJUSTING
|
1 | Ask on WhatsApp |
| 9 |
50342ZV1310
STOPPER, ROD
|
1 | Ask on WhatsApp |
| 10 |
50343ZV1300
SPRING, ROD ADJUSTING
|
1 | Ask on WhatsApp |
| 11 |
90107ZV1000
BOLT, HEX., 8X130
|
1 | Ask on WhatsApp |
| 12 |
90305ZV4000
NUT, SELF-LOCK, 8MM
|
1 | Ask on WhatsApp |
| 13 |
90407920000
WASHER, SPRING, 6MM
|
1 | Ask on WhatsApp |
| 14 |
90504921010
WASHER, PLAIN, 6MM
|
1 | Ask on WhatsApp |
| 15 |
90514921000
WASHER, 8MM
|
1 | Ask on WhatsApp |
| 16 |
92000061404J
BOLT, HEX., 6X140
|
1 | Ask on WhatsApp |
| 17 |
94001064900S
NUT, HEX., 6MM
|
1 | Ask on WhatsApp |
| 18 |
9430520063
PIN, SPRING, 2X6
|
1 | Ask on WhatsApp |
| 19 |
9430540203
PIN, SPRING, 4X20
|
2 | Ask on WhatsApp |
