bf5am

Section F-8: ENGINE COVER (v2)

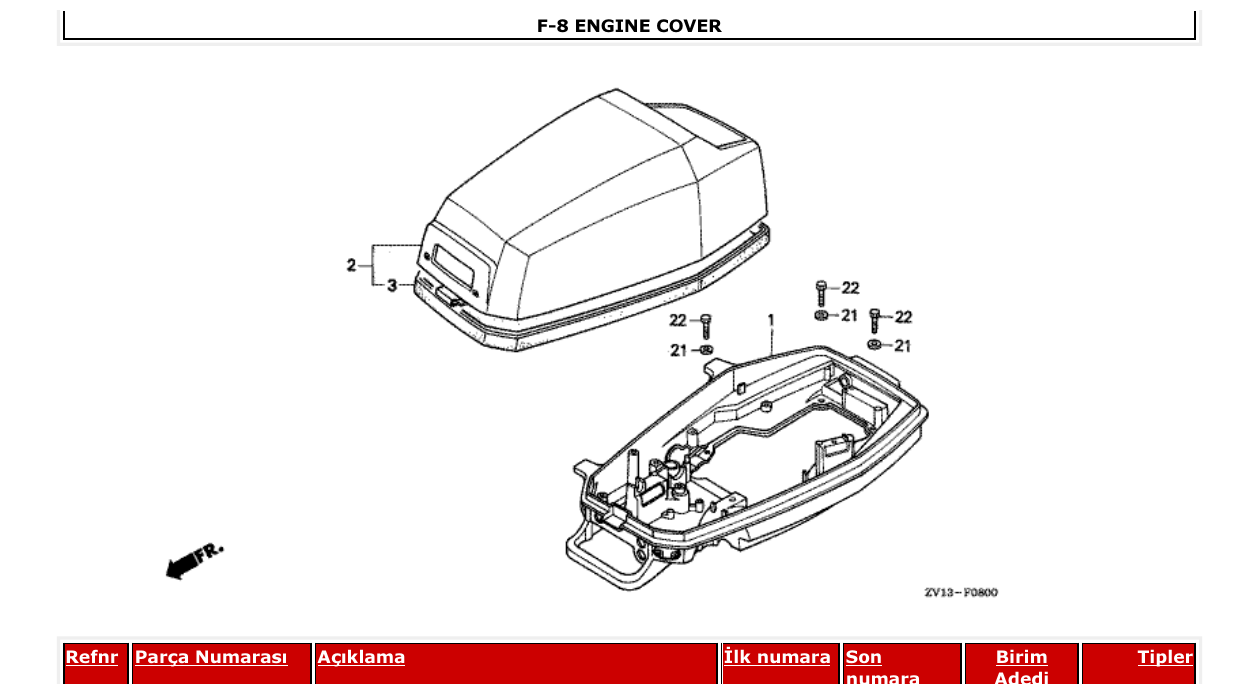

bf5am – section F-8 ENGINE COVER parts diagram

Diagram for section F-8: ENGINE COVER.

Parts list for bf5am section F-8 ENGINE COVER
Ref	Part No.	Description	Qty	Buy
1	40100ZV1841ZB CASE COMP., ENGINE UNDER NH282MU	CASE COMP., ENGINE UNDER NH282MU	1	Ask on WhatsApp
2	63100ZV1840ZB COVER COMP., ENGINE NH282MU	COVER COMP., ENGINE NH282MU	1	Ask on WhatsApp
3	63102ZV1300 SEAL, ENGINE COVER	SEAL, ENGINE COVER	1	Ask on WhatsApp
21	90504921010 WASHER, PLAIN, 6MM	WASHER, PLAIN, 6MM	4	Ask on WhatsApp
22	92000060164J BOLT, HEX., 6X16	BOLT, HEX., 6X16	4	Ask on WhatsApp
