Suzuki DF150 – CLUTCH SHAFT
CLUTCH SHAFT (v2)
Model code: DF150
Parts list

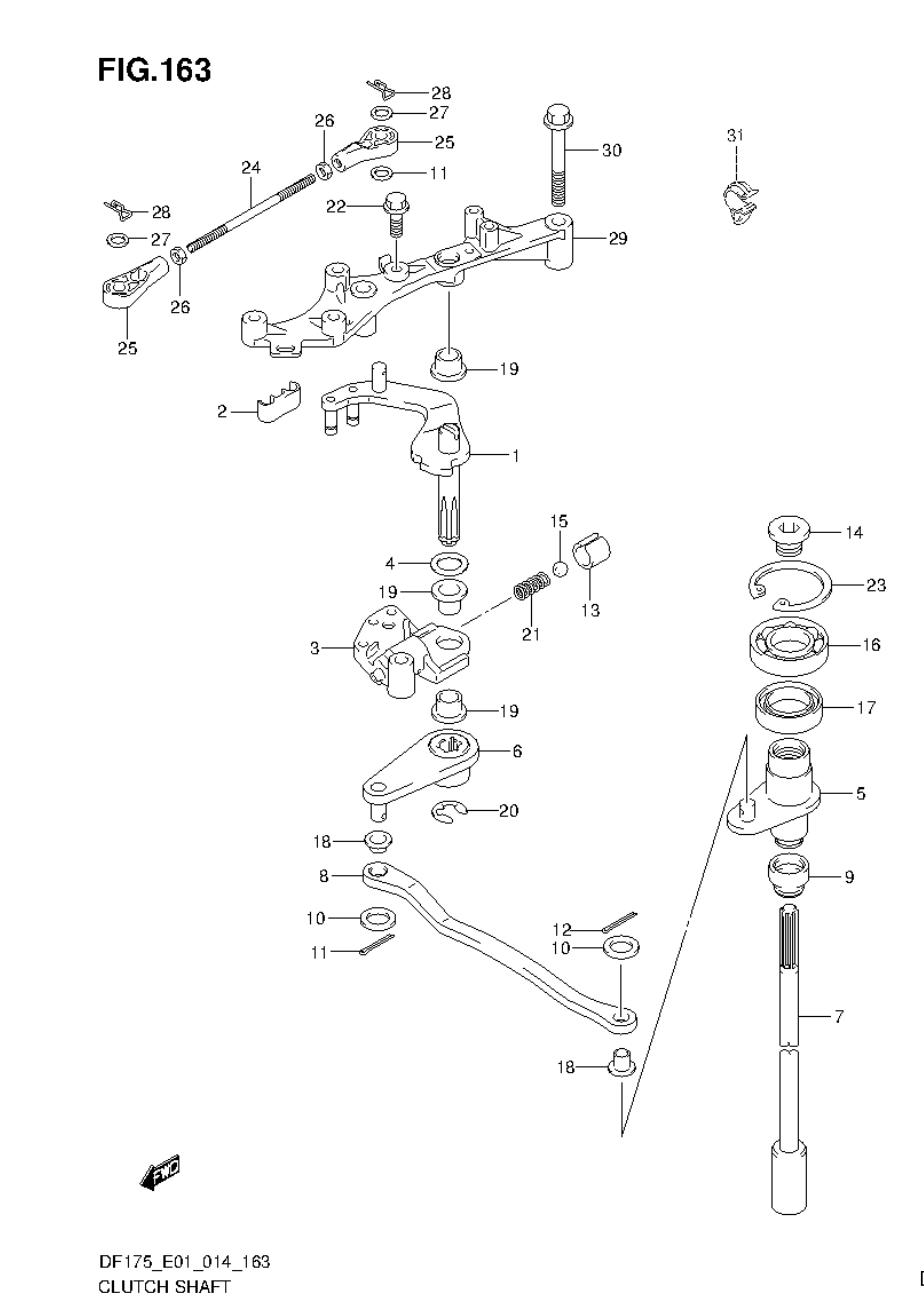

CLUTCH SHAFT
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
21100-96J01
df150t-e01
LEVER, CLUTCH
|
1 | |
| 1 |
21100-96J01
df150t-e40
LEVER, CLUTCH
|
1 | |
| 1 |
21100-96J01
df150z-e01
LEVER, CLUTCH
|
1 | |
| 1 |
21100-96J01
df150z-e40
LEVER, CLUTCH
|
1 | |
| 1 |
21110-96J10
df150tg-e01
LEVER, CLUTCH
|
1 | |
| 1 |
21110-96J10
df150tg-e40
LEVER, CLUTCH
|
1 | |
| 1 |
21110-96J10
df150zg-e01
LEVER, CLUTCH
|
1 | |
| 1 |
21110-96J10
df150zg-e40
LEVER, CLUTCH
|
1 | |
| 2 |
21131-93J00
BUSH, CLUTCH LEVER
|
1 |
Price: 3.72 AED
Stock: 17
|
| 3 |
09306-10001
df150t-e01
BUSH
|
4 |
Price: 10.43 AED
Stock: 10
|
| 3 |
09306-10001
df150t-e40
BUSH
|
4 |
Price: 10.43 AED
Stock: 10
|
| 3 |
09306-10001
df150z-e01
BUSH
|
4 |
Price: 10.43 AED
Stock: 10
|
| 3 |
09306-10001
df150z-e40
BUSH
|
4 |
Price: 10.43 AED
Stock: 10
|
| 3 |
21151-93J00
df150tg-e01
HOLDER, CLUTCH LEVER
|
1 | |
| 3 |
21151-93J00
df150tg-e40
HOLDER, CLUTCH LEVER
|
1 | |
| 3 |
21151-93J00
df150zg-e01
HOLDER, CLUTCH LEVER
|
1 | |
| 3 |
21151-93J00
df150zg-e40
HOLDER, CLUTCH LEVER
|
1 | |
| 4 |
09160-10148
df150tg-e01
WASHER (10X20X3)
|
1 |
Price: 5.96 AED
Stock: 20
|
| 4 |
09160-10148
df150tg-e40
WASHER (10X20X3)
|
1 |
Price: 5.96 AED
Stock: 20
|
| 4 |
09160-10148
df150zg-e01
WASHER (10X20X3)
|
1 |
Price: 5.96 AED
Stock: 20
|
| 4 |
09160-10148
df150zg-e40
WASHER (10X20X3)
|
1 |
Price: 5.96 AED
Stock: 20
|
| 4 |
09383-08004
E RING
|
1 |
Price: 2.98 AED
Stock: 4
|
| 5 |
21210-98J01
df150tg-e01
SHAFT, CLUTCH
|
1 | |
| 5 |
21210-98J01
df150tg-e40
SHAFT, CLUTCH
|
1 | |
| 5 |
21210-98J01
df150zg-e01
SHAFT, CLUTCH
|
1 | |
| 5 |
21210-98J01
df150zg-e40
SHAFT, CLUTCH
|
1 | |
| 5 |
23115-96J00
df150t-e01
LINK, CLUTCH LEVER
|
1 | |
| 5 |
23115-96J00
df150t-e40
LINK, CLUTCH LEVER
|
1 | |
| 5 |
23115-96J00
df150z-e01
LINK, CLUTCH LEVER
|
1 | |
| 5 |
23115-96J00
df150z-e40
LINK, CLUTCH LEVER
|
1 | |
| 6 |
09160-06094
WASHER (6.5X15X1.0)
|
2 | |
| 6 |
21230-98J01
df150tg-e01
ARM, CLUTCH SHAFT
|
1 | |
| 6 |
21230-98J01
df150tg-e40
ARM, CLUTCH SHAFT
|
1 | |
| 6 |
21230-98J01
df150zg-e01
ARM, CLUTCH SHAFT
|
1 | |
| 6 |
21230-98J01
df150zg-e40
ARM, CLUTCH SHAFT
|
1 | |
| 7 |
09204-01006
PIN
|
2 |
Price: 3.72 AED
Stock: 10
|
| 7-1 |
23111-96J00
ROD, CLUTCH (L)
W/TRANSOM(L)
|
1 | |
| 7-2 |
23111-93J00
ROD, CLUTCH (UL)
W/TRANSOM(X)
|
1 |
Price: 259.22 AED
Stock: 10
|
| 8 |
09306-06004
df150t-e01
BUSH
|
2 |
Price: 2.98 AED
Stock: 1
|
| 8 |
09306-06004
df150t-e40
BUSH
|
2 |
Price: 2.98 AED
Stock: 1
|
| 8 |
09306-06004
df150z-e01
BUSH
|
2 |
Price: 2.98 AED
Stock: 1
|
| 8 |
09306-06004
df150z-e40
BUSH
|
2 |
Price: 2.98 AED
Stock: 1
|
| 8 |
23115-96J10
df150tg-e01
LINK, CLUTCH LEVER
|
1 | |
| 8 |
23115-96J10
df150tg-e40
LINK, CLUTCH LEVER
|
1 | |
| 8 |
23115-96J10
df150zg-e01
LINK, CLUTCH LEVER
|
1 | |
| 8 |
23115-96J10
df150zg-e40
LINK, CLUTCH LEVER
|
1 | |
| 9 |
21151-96J00
df150t-e01
HOLDER, CLUTCH LEVER
|
1 | |
| 9 |
21151-96J00
df150t-e40
HOLDER, CLUTCH LEVER
|
1 | |
| 9 |
21151-96J00
df150z-e01
HOLDER, CLUTCH LEVER
|
1 | |
| 9 |
21151-96J00
df150z-e40
HOLDER, CLUTCH LEVER
|
1 | |
| 9 |
25223-94400
COVER, CLUTCH ROD
|
1 | |
| 10 |
01550-06207
BOLT
|
1 |
Price: 6.70 AED
Stock: 14
|
| 11 |
09160-06055
df150tg-e01
WASHER (7X12X1)
|
1 |
Price: 2.98 AED
Stock: 15
|
| 11 |
09160-06055
df150tg-e40
WASHER (7X12X1)
|
1 |
Price: 2.98 AED
Stock: 15
|
| 11 |
09160-06055
df150zg-e01
WASHER (7X12X1)
|
1 |
Price: 2.98 AED
Stock: 15
|
| 11 |
09160-06055
df150zg-e40
WASHER (7X12X1)
|
1 |
Price: 2.98 AED
Stock: 15
|
| 11 |
21155-93J00
df150t-e01
PLATE, SHIFT LEVER
|
1 | |
| 11 |
21155-93J00
df150t-e40
PLATE, SHIFT LEVER
|
1 | |
| 11 |
21155-93J00
df150z-e01
PLATE, SHIFT LEVER
|
1 | |
| 11 |
21155-93J00
df150z-e40
PLATE, SHIFT LEVER
|
1 | |
| 12 |
02142-05107
df150t-e01
SCREW
|
2 | |
| 12 |
02142-05107
df150t-e40
SCREW
|
2 | |
| 12 |
02142-05107
df150z-e01
SCREW
|
2 | |
| 12 |
02142-05107
df150z-e40
SCREW
|
2 | |
| 13 |
09205-10006
SPRING PIN (10.2X10)
|
1 |
Price: 14.15 AED
Stock: 7
|
| 13 |
21210-93J01
df150t-e01
SHAFT, CLUTCH
|
1 | |
| 13 |
21210-93J01
df150t-e40
SHAFT, CLUTCH
|
1 | |
| 13 |
21210-93J01
df150z-e01
SHAFT, CLUTCH
|
1 | |
| 13 |
21210-93J01
df150z-e40
SHAFT, CLUTCH
|
1 | |
| 14 |
09248-12011
PLUG (12X9)
|
1 | |
| 14 |
21230-93J01
df150t-e01
ARM, CLUTCH SHAFT
|
1 | |
| 14 |
21230-93J01
df150t-e40
ARM, CLUTCH SHAFT
|
1 | |
| 14 |
21230-93J01
df150z-e01
ARM, CLUTCH SHAFT
|
1 | |
| 14 |
21230-93J01
df150z-e40
ARM, CLUTCH SHAFT
|
1 | |
| 15 |
09260-10005
BALL
|
1 | |
| 15 |
22511-99011
df150t-e01
NIPPLE, GREASE
|
1 |
Price: 6.70 AED
Stock: 5
|
| 15 |
22511-99011
df150t-e40
NIPPLE, GREASE
|
1 |
Price: 6.70 AED
Stock: 5
|
| 15 |
22511-99011
df150z-e01
NIPPLE, GREASE
|
1 |
Price: 6.70 AED
Stock: 5
|
| 15 |
22511-99011
df150z-e40
NIPPLE, GREASE
|
1 |
Price: 6.70 AED
Stock: 5
|
| 16 |
09262-17019
BEARING (17X35X8)
|
1 |
Price: 48.42 AED
Stock: 15
|
| 17 |
09289-18001
OIL SEAL (18X30X8)
|
1 |
Price: 43.20 AED
Stock: 20
|
| 18 |
09306-06005
df150tg-e01
BUSH
|
2 | |
| 18 |
09306-06005
df150tg-e40
BUSH
|
2 | |
| 18 |
09306-06005
df150zg-e01
BUSH
|
2 | |
| 18 |
09306-06005
df150zg-e40
BUSH
|
2 | |
| 19 |
09306-10001
df150tg-e01
BUSH
|
3 |
Price: 10.43 AED
Stock: 10
|
| 19 |
09306-10001
df150tg-e40
BUSH
|
3 |
Price: 10.43 AED
Stock: 10
|
| 19 |
09306-10001
df150zg-e01
BUSH
|
3 |
Price: 10.43 AED
Stock: 10
|
| 19 |
09306-10001
df150zg-e40
BUSH
|
3 |
Price: 10.43 AED
Stock: 10
|
| 21 |
08331-41359
CIRCLIP
|
1 |
Price: 3.72 AED
Stock: 8
|
| 21 |
09440-07051
SPRING
|
1 | |
| 24 |
21241-98J00
df150tg-e01
LINK, CLUTCH LEVER NO.2
|
1 | |
| 24 |
21241-98J00
df150tg-e40
LINK, CLUTCH LEVER NO.2
|
1 | |
| 24 |
21241-98J00
df150zg-e01
LINK, CLUTCH LEVER NO.2
|
1 | |
| 24 |
21241-98J00
df150zg-e40
LINK, CLUTCH LEVER NO.2
|
1 | |
| 25 |
67467-89J01
df150tg-e01
CONNECTOR, REMOCON CABLE
|
2 |
Price: 13.41 AED
Stock: 67
|
| 25 |
67467-89J01
df150tg-e40
CONNECTOR, REMOCON CABLE
|
2 |
Price: 13.41 AED
Stock: 67
|
| 25 |
67467-89J01
df150zg-e01
CONNECTOR, REMOCON CABLE
|
2 |
Price: 13.41 AED
Stock: 67
|
| 25 |
67467-89J01
df150zg-e40
CONNECTOR, REMOCON CABLE
|
2 |
Price: 13.41 AED
Stock: 67
|
| 26 |
67471-99E00
df150tg-e01
NUT, REMOCON CABLE
|
2 | |
| 26 |
67471-99E00
df150tg-e40
NUT, REMOCON CABLE
|
2 | |
| 26 |
67471-99E00
df150zg-e01
NUT, REMOCON CABLE
|
2 | |
| 26 |
67471-99E00
df150zg-e40
NUT, REMOCON CABLE
|
2 | |
| 27 |
09160-06055
df150tg-e01
WASHER (7X12X1)
|
2 |
Price: 2.98 AED
Stock: 15
|
| 27 |
09160-06055
df150tg-e40
WASHER (7X12X1)
|
2 |
Price: 2.98 AED
Stock: 15
|
| 27 |
09160-06055
df150zg-e01
WASHER (7X12X1)
|
2 |
Price: 2.98 AED
Stock: 15
|
| 27 |
09160-06055
df150zg-e40
WASHER (7X12X1)
|
2 |
Price: 2.98 AED
Stock: 15
|
| 28 |
09385-06012
df150tg-e01
CLIP
|
2 |
Price: 3.72 AED
Stock: 31
|
| 28 |
09385-06012
df150tg-e40
CLIP
|
2 |
Price: 3.72 AED
Stock: 31
|
| 28 |
09385-06012
df150zg-e01
CLIP
|
2 |
Price: 3.72 AED
Stock: 31
|
| 28 |
09385-06012
df150zg-e40
CLIP
|
2 |
Price: 3.72 AED
Stock: 31
|
| 29 |
19115-96J10
df150tg-e01
HOLDER, CLUTCH LEVER
|
1 | |
| 29 |
19115-96J10
df150tg-e40
HOLDER, CLUTCH LEVER
|
1 | |
| 29 |
19115-96J10
df150zg-e01
HOLDER, CLUTCH LEVER
|
1 | |
| 29 |
19115-96J10
df150zg-e40
HOLDER, CLUTCH LEVER
|
1 | |
| 30 |
01550-08507
df150tg-e01
BOLT
|
2 | |
| 30 |
01550-08507
df150tg-e40
BOLT
|
2 | |
| 30 |
01550-08507
df150zg-e01
BOLT
|
2 | |
| 30 |
01550-08507
df150zg-e40
BOLT
|
2 | |
| 31 |
09403-11320
df150tg-e01
CLAMP
|
1 | |
| 31 |
09403-11320
df150tg-e40
CLAMP
|
1 | |
| 31 |
09403-11320
df150zg-e01
CLAMP
|
1 | |
| 31 |
09403-11320
df150zg-e40
CLAMP
|
1 |
