Suzuki DF150 – FUEL PUMP
FUEL PUMP (v2)
Model code: DF150

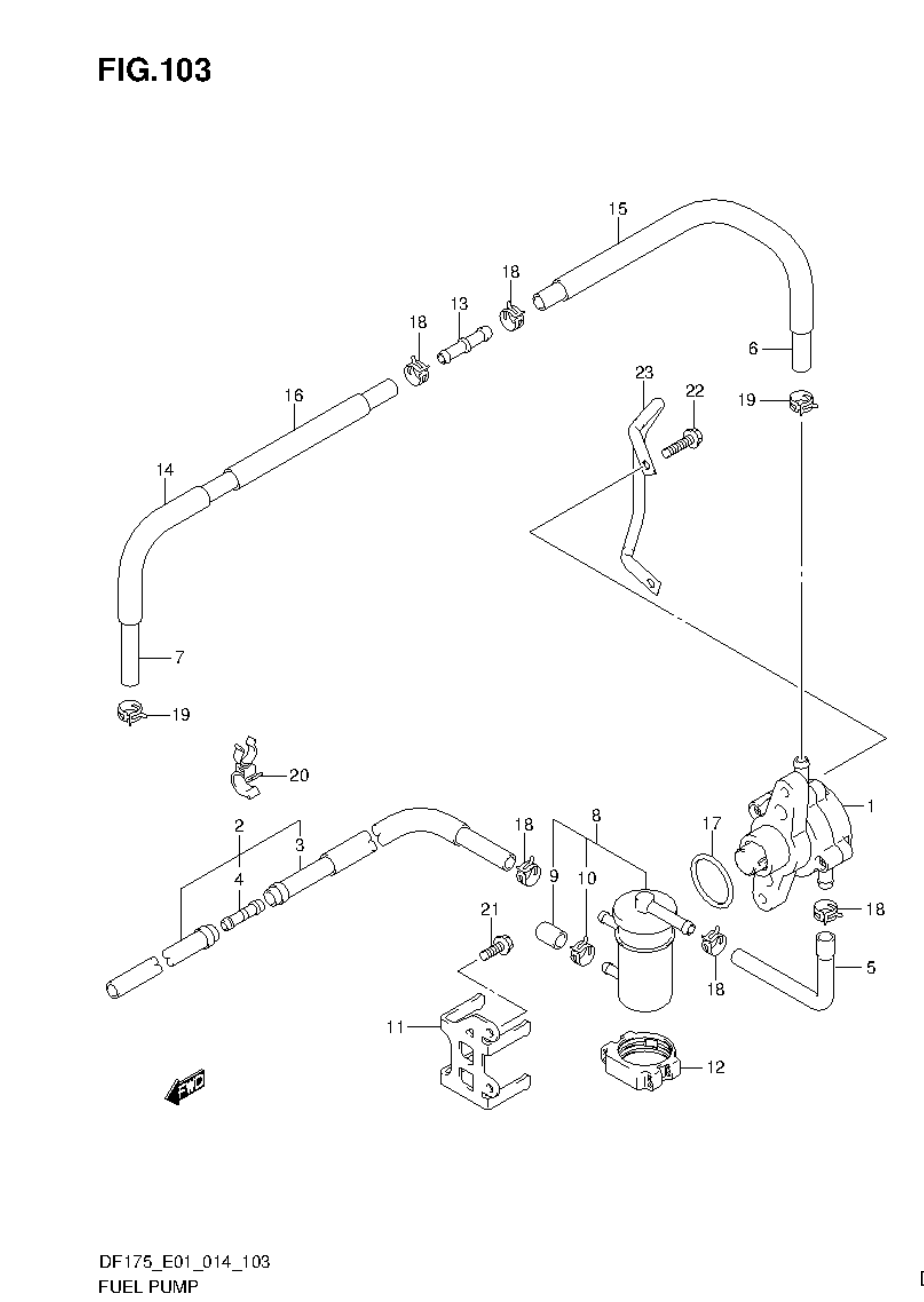

Parts list
FUEL PUMP
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
15100-96J0V
df150t-e01
PUMP ASSY, FUEL
|
1 | |
| 1 |
15100-96J0V
df150tg-e01
PUMP ASSY, FUEL
|
1 | |
| 1 |
15100-96J0V
df150z-e01
PUMP ASSY, FUEL
|
1 | |
| 1 |
15100-96J0V
df150zg-e01
PUMP ASSY, FUEL
|
1 | |
| 1 |
15100-96J10
df150t-e40
PUMP ASSY, FUEL
|
1 | |
| 1 |
15100-96J10
df150tg-e40
PUMP ASSY, FUEL
|
1 | |
| 1 |
15100-96J10
df150z-e40
PUMP ASSY, FUEL
|
1 | |
| 1 |
15100-96J10
df150zg-e40
PUMP ASSY, FUEL
|
1 | |
| 2 |
15190-96J21
HOSE, FUEL (CONN TO FILTER)
|
1 | |
| 3 |
18498-99E10
.PROTECTOR, FUEL HOSE (610)
L:610->95
|
1 | |
| 4 |
09367-10001
.JOINT
|
1 | |
| 5 |
15192-96J11
HOSE, FUEL (FILTER TO PUMP)
|
1 | |
| 6 |
15193-96J11
HOSE, FUEL (PUMP TO 2WAY)
|
1 | |
| 7 |
15194-96J11
HOSE, FUEL (2WAY TO SEPARATOR)
|
1 | |
| 8 |
15410-96J00
FILTER, FUEL
|
1 |
Price: 42.46 AED
Stock: 11
|
| 9 |
15419-87J00
.CAP, FUEL FILTER
|
1 | |
| 10 |
09401-11423
.CLIP
|
1 |
Price: 3.72 AED
Stock: 10
|
| 11 |
15421-96J00
BRACKET, FUEL FILTER
|
1 | |
| 12 |
15422-96J00
CLAMP, FUEL FILTER
|
1 | |
| 13 |
15831-96J00
UNION, 2 WAY FUEL HOSE
|
1 | |
| 15 |
18498-96J20
PROTECTOR (13.5X16.5X370)
|
1 | |
| 17 |
09280-33004
O RING (D:3.1,ID:32.7)
|
1 |
Price: 7.45 AED
Stock: 39
|
| 18 |
09401-11423
CLIP
|
5 |
Price: 3.72 AED
Stock: 10
|
| 19 |
09401-13424
CLIP
|
2 | |
| 20 |
09408-00105
CLAMP
|
2 | |
| 21 |
01550-06167
BOLT
|
2 |
Price: 5.21 AED
Stock: 11
|
| 22 |
09103-06211
BOLT (6X25)
|
2 | |
| 23 |
13144-96J00
GUARD, FUEL PUMP
|
1 |
