Suzuki DF150 – SENSOR
SENSOR (v2)
Model code: DF150
Parts list

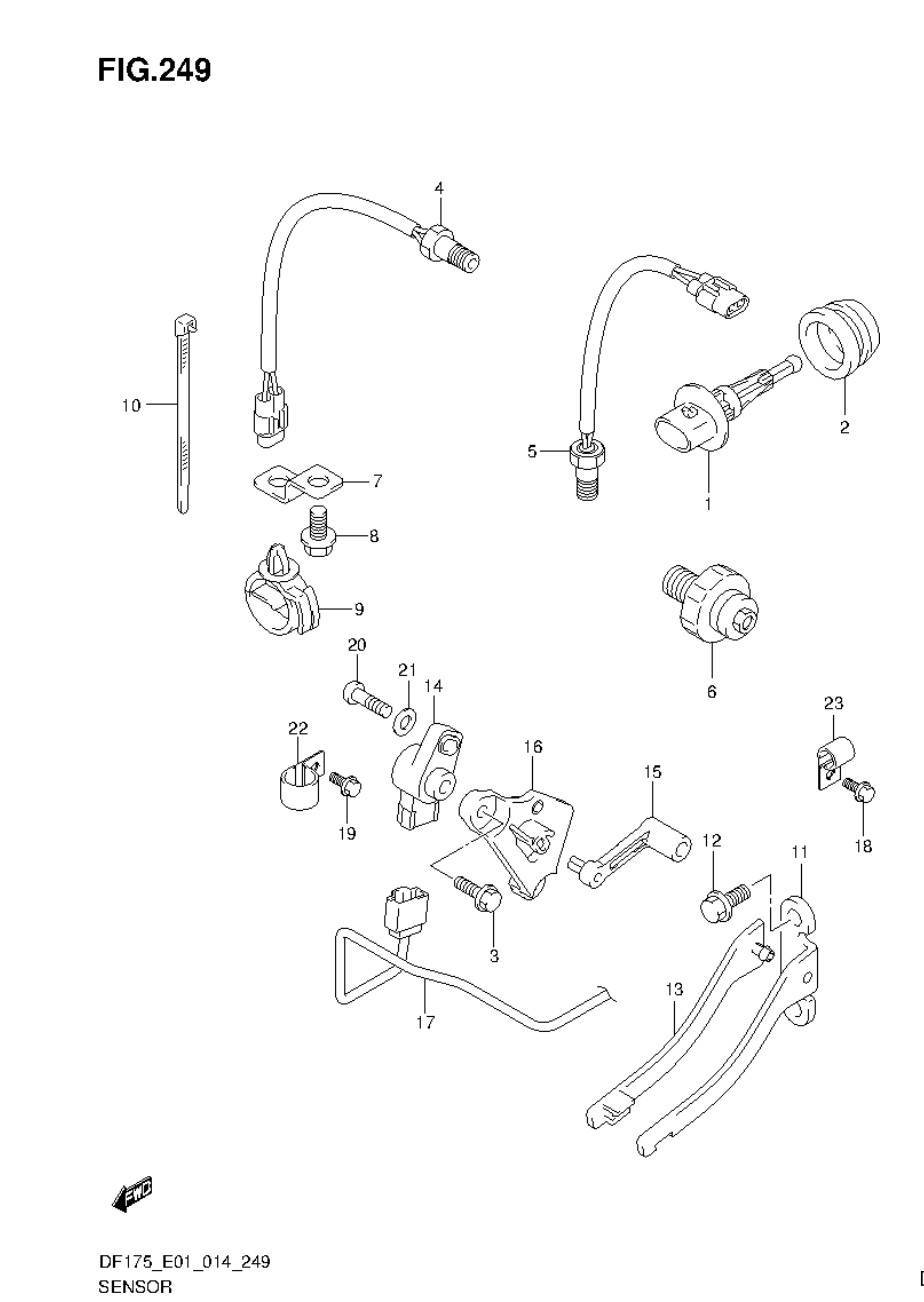

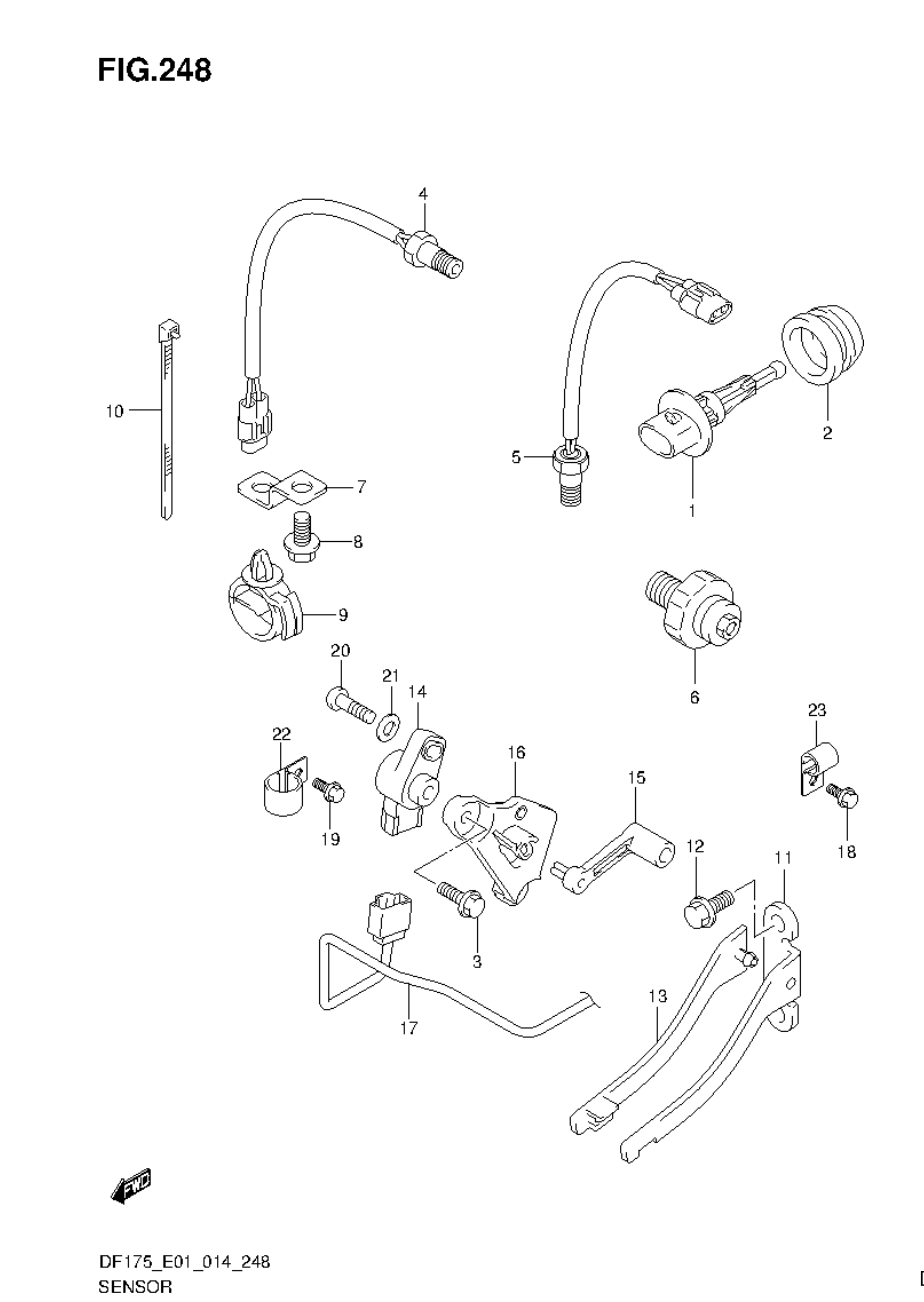

SENSOR
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
13650-52G00
SENSOR, INLET AIR TEMP
|
1 |
Price: 308.38 AED
Stock: 0
|
| 2 |
13655-87J00
df150t-e01
GROMMET, AIR TEMP SENSOR
|
1 | |
| 2 |
13655-87J00
df150t-e40
GROMMET, AIR TEMP SENSOR
|
1 | |
| 2 |
13655-87J00
df150z-e01
GROMMET, AIR TEMP SENSOR
|
1 | |
| 2 |
13655-87J00
df150z-e40
GROMMET, AIR TEMP SENSOR
|
1 | |
| 2 |
13655-96J00
df150tg-e01
GROMMET, AIR TEMP SENSOR
|
1 | |
| 2 |
13655-96J00
df150tg-e40
GROMMET, AIR TEMP SENSOR
|
1 | |
| 2 |
13655-96J00
df150zg-e01
GROMMET, AIR TEMP SENSOR
|
1 | |
| 2 |
13655-96J00
df150zg-e40
GROMMET, AIR TEMP SENSOR
|
1 | |
| 3 |
09103-06093
BOLT (6X20)
|
2 | |
| 3 |
34801-99E04
df150t-e01
SENDER ASSY, TRIM
|
1 | |
| 3 |
34801-99E04
df150t-e40
SENDER ASSY, TRIM
|
1 | |
| 3 |
34801-99E04
df150z-e01
SENDER ASSY, TRIM
|
1 | |
| 3 |
34801-99E04
df150z-e40
SENDER ASSY, TRIM
|
1 | |
| 4 |
34830-87J20
SENSOR ASSY, EXHAUST TEMP
|
1 |
Price: 173.56 AED
Stock: 30
|
| 5 |
09103-06093
df150t-e01
BOLT (6X20)
|
1 | |
| 5 |
09103-06093
df150t-e40
BOLT (6X20)
|
1 | |
| 5 |
09103-06093
df150z-e01
BOLT (6X20)
|
1 | |
| 5 |
09103-06093
df150z-e40
BOLT (6X20)
|
1 | |
| 6 |
29404-93J10
df150t-e01
CLAMP, TRIM SENDER LEAD
|
1 | |
| 6 |
29404-93J10
df150t-e40
CLAMP, TRIM SENDER LEAD
|
1 | |
| 6 |
29404-93J10
df150z-e01
CLAMP, TRIM SENDER LEAD
|
1 | |
| 6 |
29404-93J10
df150z-e40
CLAMP, TRIM SENDER LEAD
|
1 | |
| 6 |
37820-99E01
SWITCH ASSY, OIL PRESSURE
|
1 | |
| 7 |
09407-14403
df150t-e01
CLAMP (L:125)
|
1 | |
| 7 |
09407-14403
df150t-e40
CLAMP (L:125)
|
1 | |
| 7 |
09407-14403
df150z-e01
CLAMP (L:125)
|
1 | |
| 7 |
09407-14403
df150z-e40
CLAMP (L:125)
|
1 | |
| 7 |
36617-93J10
BRACKET, PTT CABLE CLIP
|
1 | |
| 8 |
29103-93J00
BOLT, PTT CABLE CLIP BRACKET
|
1 | |
| 9 |
09403-20307
CLAMP
|
1 | |
| 10 |
09407-14407
CLAMP (L:145)
|
2 |
Price: 11.17 AED
Stock: 10
|
| 11 |
43117-96J00
CAM, TRIM SENDER
|
1 | |
| 12 |
09116-05010
BOLT (5X12)
|
2 |
Price: 8.19 AED
Stock: 1
|
| 13 |
43118-96J00
PLATE, TRIM SENDER CAM
|
1 | |
| 14 |
34840-98J11
df150tg-e01
SENSOR ASSY, TRIM
|
1 |
Price: 241.34 AED
Stock: 9
|
| 14 |
34840-98J11
df150tg-e40
SENSOR ASSY, TRIM
|
1 |
Price: 241.34 AED
Stock: 9
|
| 14 |
34840-98J11
df150zg-e01
SENSOR ASSY, TRIM
|
1 |
Price: 241.34 AED
Stock: 9
|
| 14 |
34840-98J11
df150zg-e40
SENSOR ASSY, TRIM
|
1 |
Price: 241.34 AED
Stock: 9
|
| 15 |
34841-96J00
df150tg-e01
LEVER, TRIM SENSOR
|
1 | |
| 15 |
34841-96J00
df150tg-e40
LEVER, TRIM SENSOR
|
1 | |
| 15 |
34841-96J00
df150zg-e01
LEVER, TRIM SENSOR
|
1 | |
| 15 |
34841-96J00
df150zg-e40
LEVER, TRIM SENSOR
|
1 | |
| 16 |
34845-96J00
df150tg-e01
BRACKET, TRIM SENSOR
|
1 |
Price: 23.84 AED
Stock: 0
|
| 16 |
34845-96J00
df150tg-e40
BRACKET, TRIM SENSOR
|
1 |
Price: 23.84 AED
Stock: 0
|
| 16 |
34845-96J00
df150zg-e01
BRACKET, TRIM SENSOR
|
1 |
Price: 23.84 AED
Stock: 0
|
| 16 |
34845-96J00
df150zg-e40
BRACKET, TRIM SENSOR
|
1 |
Price: 23.84 AED
Stock: 0
|
| 17 |
36611-96J00
df150tg-e01
WIRE, TRIM SENSOR
|
1 | |
| 17 |
36611-96J00
df150tg-e40
WIRE, TRIM SENSOR
|
1 | |
| 17 |
36611-96J00
df150zg-e01
WIRE, TRIM SENSOR
|
1 | |
| 17 |
36611-96J00
df150zg-e40
WIRE, TRIM SENSOR
|
1 | |
| 18 |
41118-96J00
df150t-e01
PLATE, TRIM SENDER
|
1 | |
| 18 |
41118-96J00
df150t-e40
PLATE, TRIM SENDER
|
1 | |
| 18 |
41118-96J00
df150z-e01
PLATE, TRIM SENDER
|
1 | |
| 18 |
41118-96J00
df150z-e40
PLATE, TRIM SENDER
|
1 | |
| 19 |
09103-06307
df150tg-e01
BOLT (6X10)
|
1 | |
| 19 |
09103-06307
df150tg-e40
BOLT (6X10)
|
1 | |
| 19 |
09103-06307
df150zg-e01
BOLT (6X10)
|
1 | |
| 19 |
09103-06307
df150zg-e40
BOLT (6X10)
|
1 | |
| 20 |
09125-05048
df150tg-e01
SCREW (5X16)
|
1 | |
| 20 |
09125-05048
df150tg-e40
SCREW (5X16)
|
1 | |
| 20 |
09125-05048
df150zg-e01
SCREW (5X16)
|
1 | |
| 20 |
09125-05048
df150zg-e40
SCREW (5X16)
|
1 | |
| 20 |
09403-19409
CLAMP
|
1 | |
| 21 |
09160-05029
df150tg-e01
WASHER (5.5X12X0.8)
|
1 |
Price: 3.72 AED
Stock: 1
|
| 21 |
09160-05029
df150tg-e40
WASHER (5.5X12X0.8)
|
1 |
Price: 3.72 AED
Stock: 1
|
| 21 |
09160-05029
df150zg-e01
WASHER (5.5X12X0.8)
|
1 |
Price: 3.72 AED
Stock: 1
|
| 21 |
09160-05029
df150zg-e40
WASHER (5.5X12X0.8)
|
1 |
Price: 3.72 AED
Stock: 1
|
| 22 |
09403-13408
df150tg-e01
CLAMP
|
1 | |
| 22 |
09403-13408
df150tg-e40
CLAMP
|
1 | |
| 22 |
09403-13408
df150zg-e01
CLAMP
|
1 | |
| 22 |
09403-13408
df150zg-e40
CLAMP
|
1 |
