Suzuki DF150 – ENGINE COVER (FOR 0EP)
ENGINE COVER (FOR 0EP) (v2)
Model code: DF150
Parts list

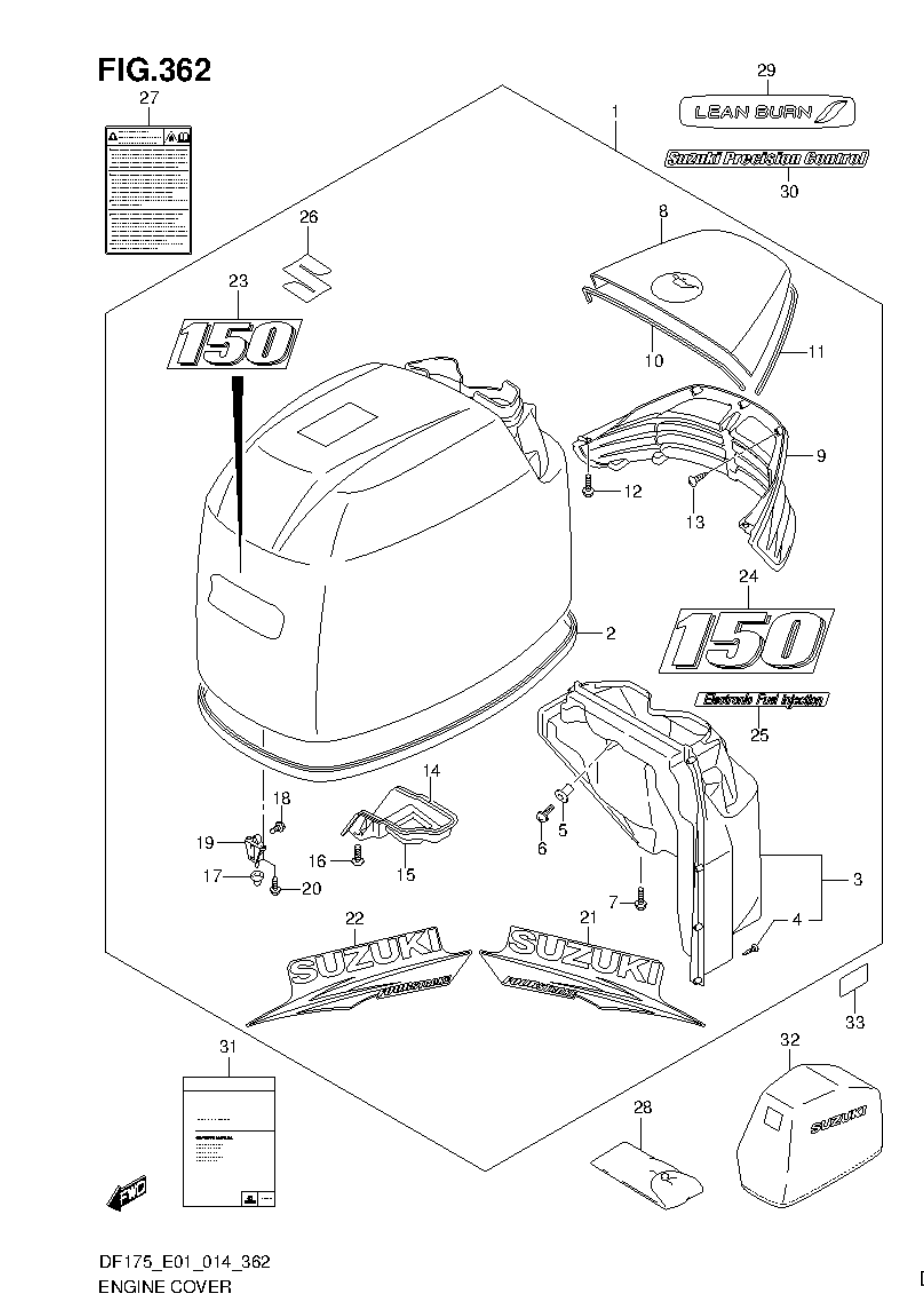

ENGINE COVER (FOR 0EP)
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 2 |
61112-96J10
.SEAL, ENGINE COVER
|
1 | |
| 3 |
61430-96J10
.GUIDE ASSY, AIR INTK INNER
|
1 | |
| 4 |
03542-05169
..SCREW
|
8 |
Price: 3.72 AED
Stock: 8
|
| 5 |
09159-05019
.NUT
|
2 |
Price: 10.43 AED
Stock: 46
|
| 6 |
02142-05167
.SCREW
|
2 | |
| 7 |
01550-06167
.BOLT
|
2 |
Price: 5.21 AED
Stock: 11
|
| 9 |
61432-96J11
.LOUVER, TILT UP HANDLE
|
1 | |
| 10 |
61438-96J10
.SEAL, TILT UP HANDLE NO.1
|
1 | |
| 11 |
61439-96J10
.SEAL, TILT UP HANDLE NO.2
|
1 | |
| 12 |
01550-06167
.BOLT
|
4 |
Price: 5.21 AED
Stock: 11
|
| 14 |
61475-96J10
.GUIDE, AIR VENT
|
1 | |
| 15 |
61476-96J10
.SEAL, AIR VENT
|
1 | |
| 16 |
02142-06167
.SCREW
|
2 | |
| 17 |
09329-10022
.CUSHION
|
3 |
Price: 8.19 AED
Stock: 12
|
| 18 |
01550-06127
.BOLT
|
3 |
Price: 3.72 AED
Stock: 0
|
| 19 |
61621-93J00
.BRACKET, FASTENER
|
3 | |
| 20 |
01547-06167
.BOLT
|
6 |
Price: 3.72 AED
Stock: 11
|
| 21 |
61443-96J22
.STRIPE, ENGINE COVER STBD
|
1 | |
| 22 |
61453-96J22
.STRIPE, ENGINE COVER PORT
|
1 | |
| 23 |
61422-96J42
.MARK, EMBLEM FRONT (150)
|
1 | |
| 24 |
61435-96J22
.MARK, EMBLEM REAR (150)
|
1 | |
| 25 |
61446-87L12
.DECAL, EFI
|
1 | |
| 27 |
61458-99E70
LABEL, ENGINE COVER
|
1 | |
| 28 |
09800-81840
TOOL SET
|
1 | |
| 29 |
61471-98J00
df150tg-e01
DECAL, LEAN BURN
|
1 | |
| 29 |
61471-98J00
df150tg-e40
DECAL, LEAN BURN
|
1 | |
| 29 |
61471-98J00
df150zg-e01
DECAL, LEAN BURN
|
1 | |
| 29 |
61471-98J00
df150zg-e40
DECAL, LEAN BURN
|
1 | |
| 30 |
61446-96J20
df150tg-e01
DECAL (S.P.C.)
|
1 | |
| 30 |
61446-96J20
df150tg-e40
DECAL (S.P.C.)
|
1 | |
| 30 |
61446-96J20
df150zg-e01
DECAL (S.P.C.)
|
1 | |
| 30 |
61446-96J20
df150zg-e40
DECAL (S.P.C.)
|
1 | |
| 30 |
68110-96J00
COVER, WEATHER
|
1 | |
| 33 |
61428-96J00
df150tg-e01
TAPE, ENGINE COVER
|
1 | |
| 33 |
61428-96J00
df150tg-e40
TAPE, ENGINE COVER
|
1 | |
| 33 |
61428-96J00
df150zg-e01
TAPE, ENGINE COVER
|
1 | |
| 33 |
61428-96J00
df150zg-e40
TAPE, ENGINE COVER
|
1 |
