Suzuki DF150 – ENGINE HOLDER
ENGINE HOLDER (v2)
Model code: DF150
Parts list

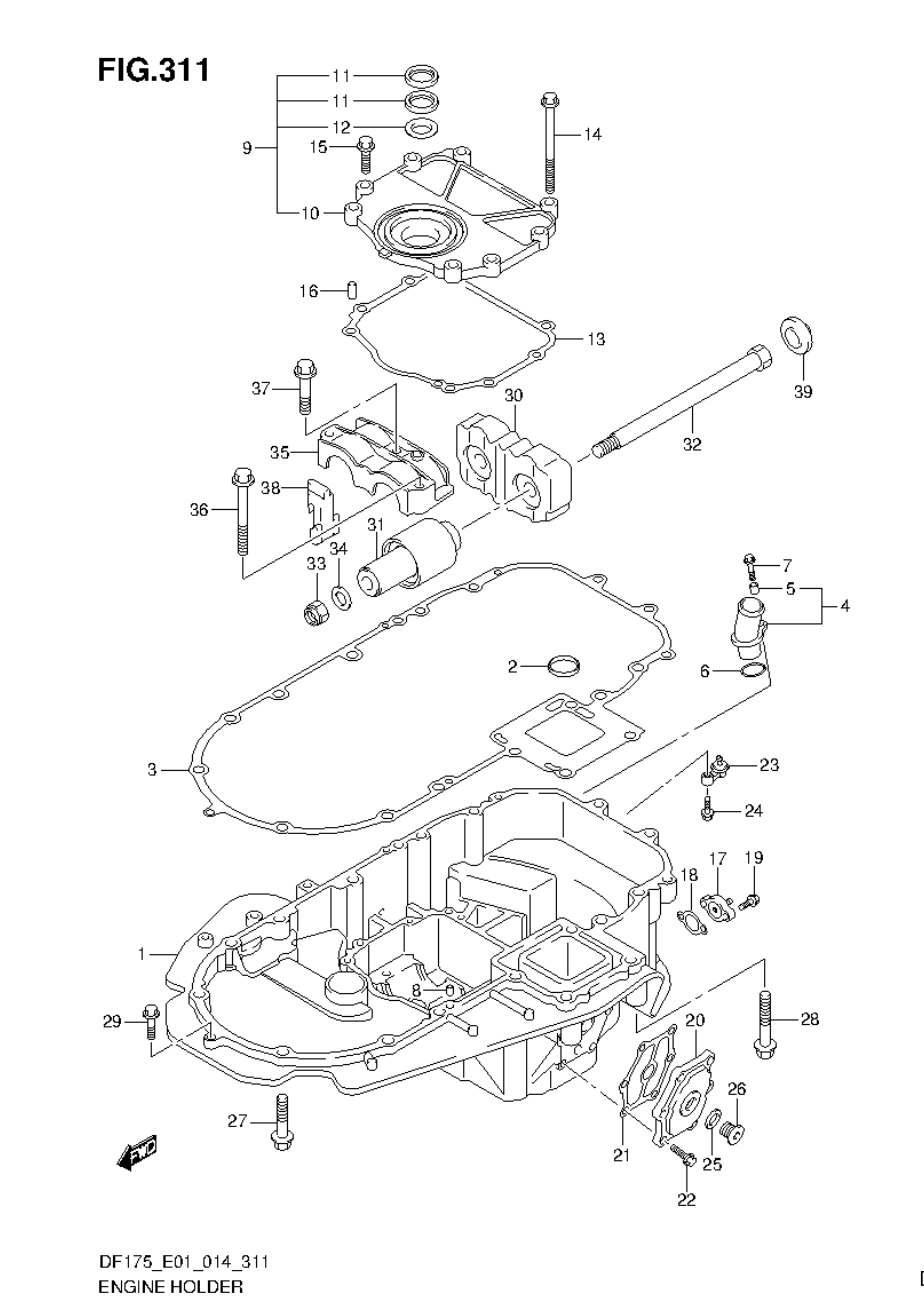

ENGINE HOLDER
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1-1 |
51111-96J00-0EP
df150t-e01
HOLDER SET, ENGINE (BLACK)
|
1 | |
| 1-1 |
51111-96J00-0EP
df150t-e40
HOLDER SET, ENGINE (BLACK)
|
1 | |
| 1-1 |
51111-96J00-0EP
df150z-e01
HOLDER SET, ENGINE (BLACK)
|
1 | |
| 1-1 |
51111-96J00-0EP
df150z-e40
HOLDER SET, ENGINE (BLACK)
|
1 | |
| 1-1 |
51111-96J20-0EP
df150tg-e01
HOLDER SET, ENGINE (BLACK)
|
1 | |
| 1-1 |
51111-96J20-0EP
df150tg-e40
HOLDER SET, ENGINE (BLACK)
|
1 | |
| 1-1 |
51111-96J20-0EP
df150zg-e01
HOLDER SET, ENGINE (BLACK)
|
1 | |
| 1-1 |
51111-96J20-0EP
df150zg-e40
HOLDER SET, ENGINE (BLACK)
|
1 | |
| 1-2 |
51111-96J00-Y5S
df150t-e01
HOLDER SET, ENGINE (WHITE)
|
1 | |
| 1-2 |
51111-96J00-Y5S
df150t-e40
HOLDER SET, ENGINE (WHITE)
|
1 | |
| 1-2 |
51111-96J00-Y5S
df150z-e01
HOLDER SET, ENGINE (WHITE)
|
1 | |
| 1-2 |
51111-96J00-Y5S
df150z-e40
HOLDER SET, ENGINE (WHITE)
|
1 | |
| 1-2 |
51111-96J20-Y5S
df150tg-e01
HOLDER SET, ENGINE (WHITE)
|
1 | |
| 1-2 |
51111-96J20-Y5S
df150tg-e40
HOLDER SET, ENGINE (WHITE)
|
1 | |
| 1-2 |
51111-96J20-Y5S
df150zg-e01
HOLDER SET, ENGINE (WHITE)
|
1 | |
| 1-2 |
51111-96J20-Y5S
df150zg-e40
HOLDER SET, ENGINE (WHITE)
|
1 | |
| 2 |
16519-93J00
SEAL, ENGINE HOLDER OIL
|
1 |
Price: 9.68 AED
Stock: 66
|
| 3 |
51211-96J00
GASKET, ENGINE HOLDER
|
1 |
Price: 160.15 AED
Stock: 28
|
| 4 |
51115-90J10
UNION, WATER RETURN
|
1 | |
| 5 |
09180-06289
.SPACER (6.5X10X11.5)
|
1 | |
| 6 |
09280-26006
O RING (D:3.1,ID:26.4)
|
1 |
Price: 4.47 AED
Stock: 33
|
| 7 |
01550-06257
BOLT
|
1 | |
| 8 |
09206-08001
PIN (8X11)
|
2 |
Price: 2.98 AED
Stock: 60
|
| 9 |
51120-96J00
COVER, MOUNT OIL SEAL
|
1 | |
| 10 |
51122-96J01
.COVER, MOUNT OIL SEAL
|
1 | |
| 11 |
51124-93J00
.OIL SEAL
|
2 | |
| 12 |
51125-93J00
.SCRAPER
|
1 |
Price: 20.11 AED
Stock: 57
|
| 13 |
51123-96J01
GASKET, MOUNT OIL SEAL COVER
|
1 | |
| 14 |
09103-08109
BOLT (8X120)
|
1 | |
| 15 |
01550-0830A
BOLT
|
7 |
Price: 11.17 AED
Stock: 6
|
| 17 |
51140-96J00
COVER, ENGINE HOLDER
|
1 | |
| 18 |
51142-96J00
GASKET, ENGINE HOLDER COVER
|
1 | |
| 19 |
01550-06207
BOLT
|
2 |
Price: 6.70 AED
Stock: 14
|
| 20 |
51161-96J00
COVER, ENG HOLDER WATER JKT
|
1 | |
| 21 |
51162-96J00
GASKET, ENG HOLDER WTR JKT COV
|
1 |
Price: 14.15 AED
Stock: 1
|
| 22 |
09103-06093
BOLT (6X20)
|
6 | |
| 23 |
51170-96J00
BRACKET, WATER INDICATOR
|
1 | |
| 24 |
09116-06121
BOLT (6X25)
|
1 |
Price: 8.19 AED
Stock: 9
|
| 25 |
09160-18031
WASHER (18.5X28X2.6)
|
1 | |
| 26 |
09248-18010
PLUG (18X15)
|
1 | |
| 27 |
09116-10175
BOLT (10X50)
|
6 |
Price: 13.41 AED
Stock: 3
|
| 28 |
09116-10137
BOLT (10X70)
|
2 |
Price: 22.35 AED
Stock: 7
|
| 29 |
01550-08307
BOLT
|
1 |
Price: 12.66 AED
Stock: 4
|
| 30 |
54121-96J01
MOUNT, UPPER THRUST
|
1 | |
| 31 |
54130-96J01
MOUNT, UPPER
|
2 | |
| 32 |
54112-96J01
BOLT, UPPER MOUNT (14X227)
|
2 | |
| 33 |
09159-14026
NUT
|
2 | |
| 34 |
09160-15051
WASHER (15X24X3)
|
2 | |
| 35 |
54137-93J02
COVER, UPPER MOUNT
|
1 | |
| 36 |
09116-10135
BOLT (10X95)
|
1 |
Price: 23.09 AED
Stock: 2
|
| 37 |
09116-10175
BOLT (10X50)
|
2 |
Price: 13.41 AED
Stock: 3
|
| 38 |
54127-96J00
MOUNT, UPPER SIDE
|
2 | |
| 39 |
54122-96J00
SPACER, UPPER MOUNT THRUST
|
2 |
