Suzuki DF175 – CLAMP BRACKET

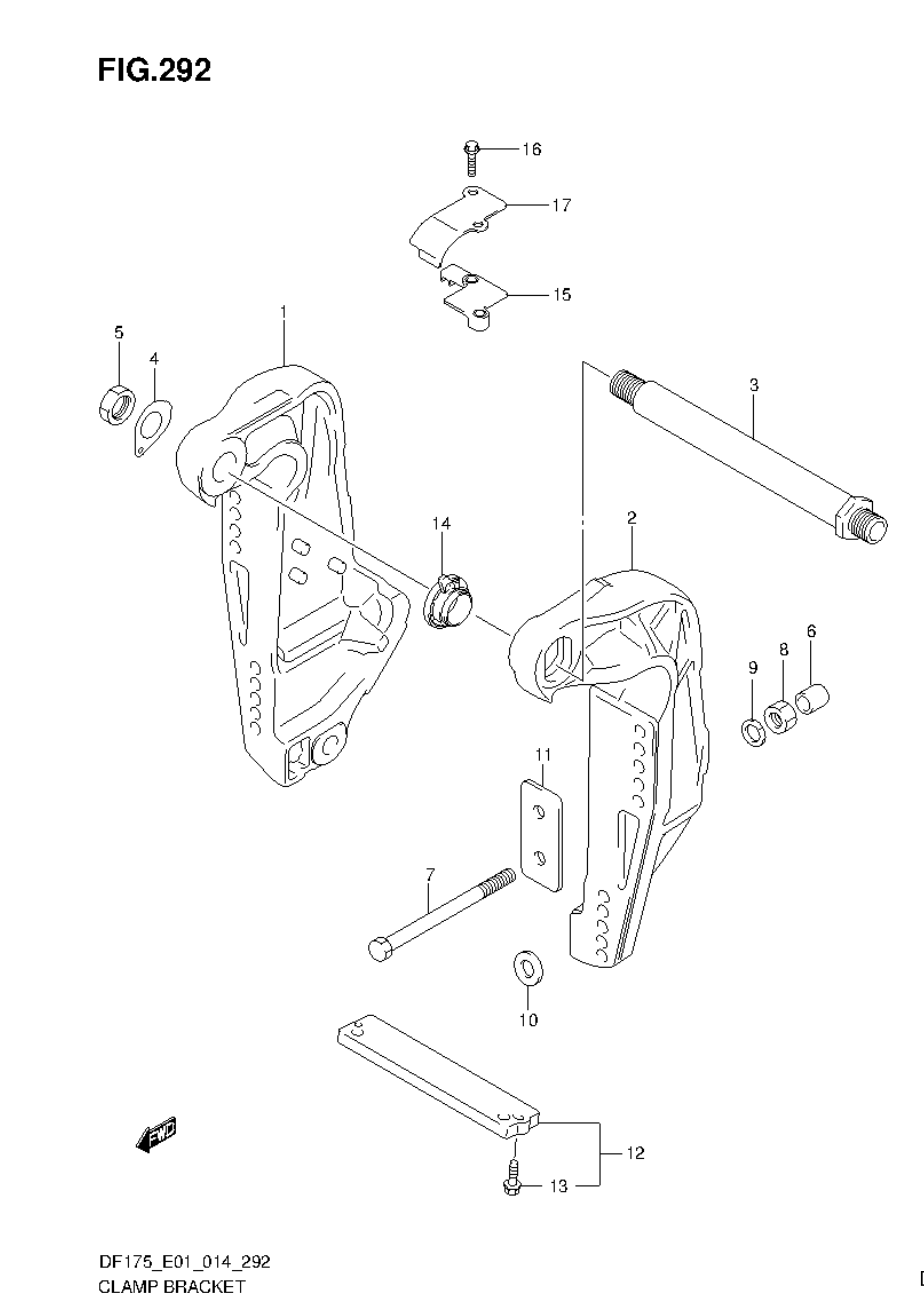

CLAMP BRACKET (v2)
Model code: DF175
Parts list
CLAMP BRACKET
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1-1 |
41111-96J21-0EP
BRACKET, CLAMP STBD (BLACK)
|
1 | |
| 1-2 |
41111-96J21-Y5S
BRACKET, CLAMP STBD (WHITE)
|
1 | |
| 2-1 |
41121-96J12-0EP
BRACKET, CLAMP PORT (BLACK)
|
1 | |
| 2-2 |
41121-96J12-Y5S
BRACKET, CLAMP PORT (WHITE)
|
1 | |
| 3 |
41130-92J03
SHAFT, CLAMP BRKT
|
1 | |
| 4 |
41135-92J00
WASHER, CLAMP BRACKET SHAFT
|
1 | |
| 5 |
09159-22006
NUT
|
1 | |
| 6 |
41153-93J00
CAP, TRANSOM BOLT
|
6 | |
| 7-1 |
09100-12086
BOLT (12.7X150)
|
6 | |
| 7-2 |
09100-12085
df175t-e01
BOLT (12.7X115)
OPT
|
1 |
Price: 32.77 AED
Stock: 10
|
| 7-2 |
09100-12085
df175z-e01
BOLT (12.7X115)
OPT
|
1 |
Price: 32.77 AED
Stock: 10
|
| 7-2 |
09100-12086
df175t-e40
BOLT (12.7X150)
OPT
|
1 | |
| 7-2 |
09100-12086
df175tg-e01
BOLT (12.7X150)
OPT
|
1 | |
| 7-2 |
09100-12086
df175tg-e40
BOLT (12.7X150)
OPT
|
1 | |
| 7-2 |
09100-12086
df175z-e40
BOLT (12.7X150)
OPT
|
1 | |
| 7-2 |
09100-12086
df175zg-e01
BOLT (12.7X150)
OPT
|
1 | |
| 7-2 |
09100-12086
df175zg-e40
BOLT (12.7X150)
OPT
|
1 | |
| 7-3 |
09100-12092
BOLT (12.7X75)
OPT
|
1 |
Price: 29.05 AED
Stock: 10
|
| 8 |
09159-12062
NUT
|
6 |
Price: 15.64 AED
Stock: 4
|
| 9 |
09160-13021
WASHER
|
6 | |
| 10 |
09160-13022
WASHER
|
4 |
Price: 23.84 AED
Stock: 10
|
| 11 |
41155-93J02
PLATE, TRANSOM
|
2 | |
| 12 |
55320-94900
ZINC SET, PROTECTION
|
1 |
Price: 87.90 AED
Stock: 21
|
| 13 |
09116-06121
.BOLT (6X25)
|
2 |
Price: 8.19 AED
Stock: 9
|
| 14 |
48140-93J01
CAM, TILT LIMIT SWITCH
|
1 |
Price: 24.58 AED
Stock: 0
|
| 15 |
48144-93J00
HOLDER, TILT LIMIT SWITCH
|
1 | |
| 16 |
09103-06278
BOLT (6X25)
|
2 | |
| 17 |
48145-93J00
COVER, TILT LIMIT SWITCH
|
1 | |
| 18 |
55321-94910
df175t-e01
ANODE (MAGNESIUM)
OPT
|
1 |
Price: 113.97 AED
Stock: 3
|
| 18 |
55321-94910
df175t-e40
ANODE (MAGNESIUM)
OPT
|
1 |
Price: 113.97 AED
Stock: 3
|
| 18 |
55321-94910
df175z-e01
ANODE (MAGNESIUM)
OPT
|
1 |
Price: 113.97 AED
Stock: 3
|
| 18 |
55321-94910
df175z-e40
ANODE (MAGNESIUM)
OPT
|
1 |
Price: 113.97 AED
Stock: 3
|
