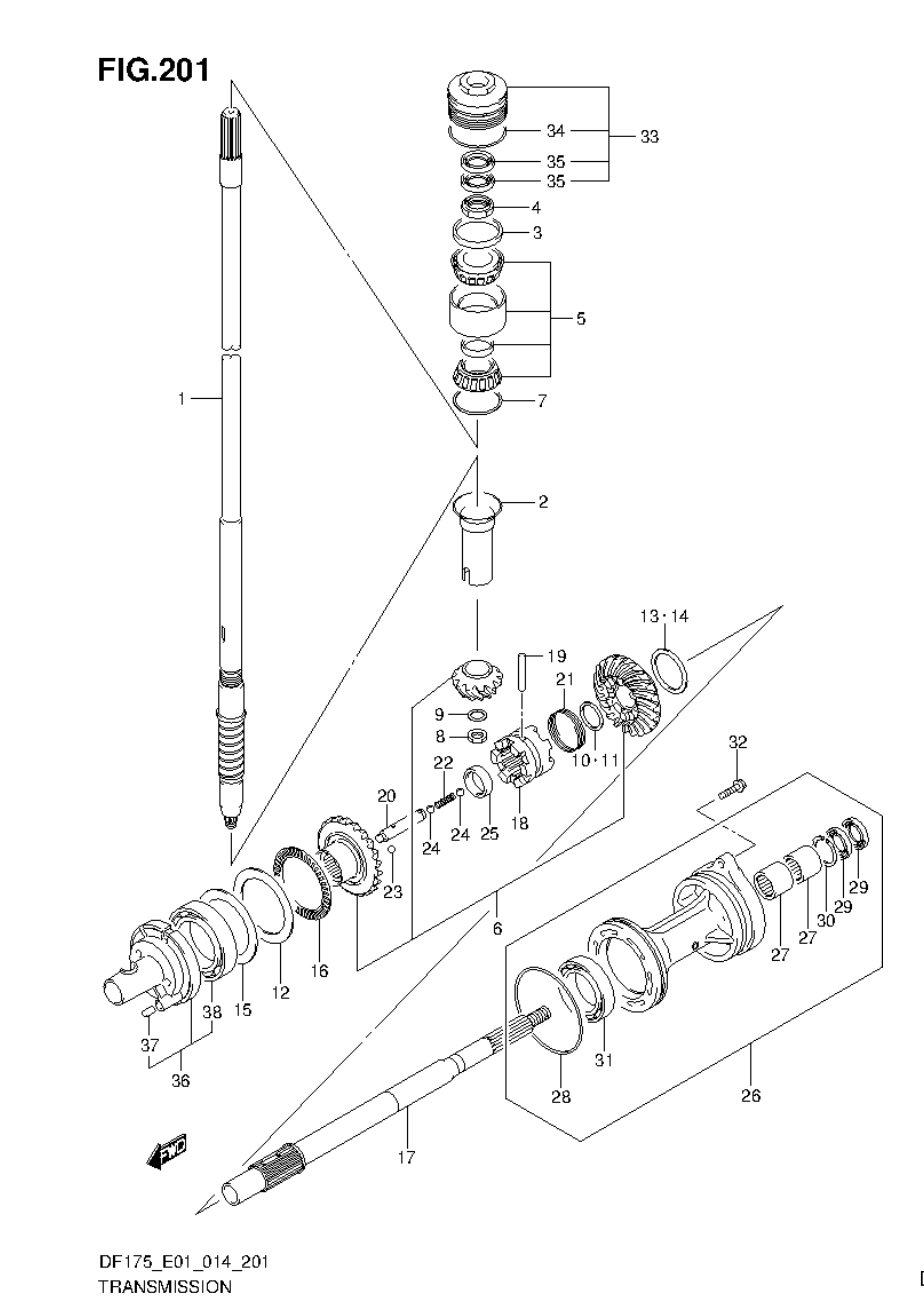

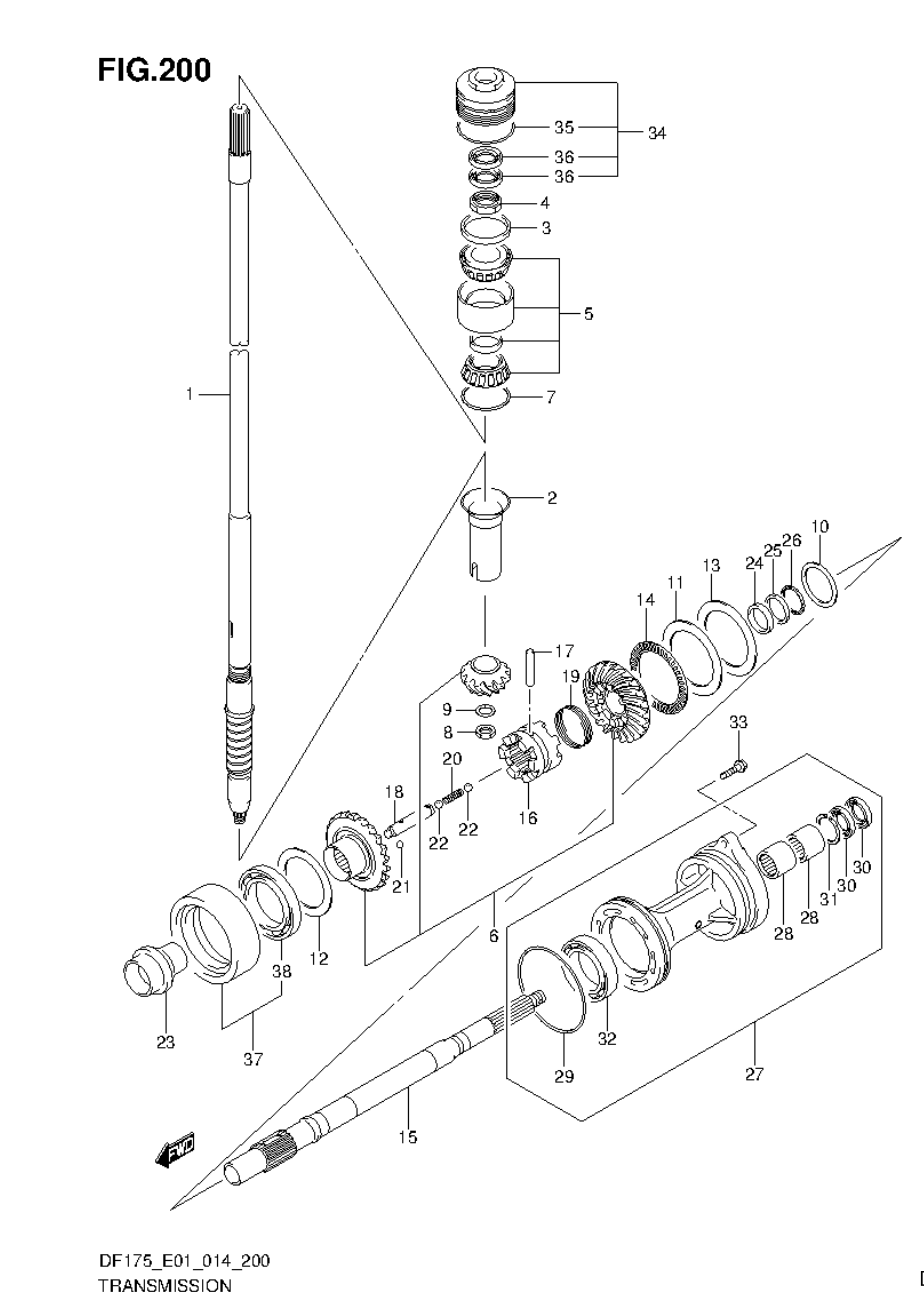

Suzuki DF175 – TRANSMISSION
TRANSMISSION (v2)
Model code: DF175
Parts list
TRANSMISSION
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1-1 |
57110-96J40
SHAFT, DRIVE (L)
W/TRANSOM(L)
|
1 | |
| 1-2 |
57110-96J30
SHAFT, DRIVE (UL)
W/TRANSOM(X)
|
1 | |
| 2 |
57133-93J00
COLLAR, DRIVE SHAFT
|
1 |
Price: 20.86 AED
Stock: 20
|
| 3 |
57134-93J00
SPACER, DRIVE SHAFT BEARING
|
1 | |
| 4 |
09159-28003
NUT
|
1 |
Price: 150.47 AED
Stock: 2
|
| 5 |
09269-32001
BEARING (32X66X49)
|
1 | |
| 6 |
57300-96810
df175t-e01
PINION/GEAR SET
|
1 |
Price: 1,550.10 AED
Stock: 11
|
| 6 |
57300-96810
df175t-e40
PINION/GEAR SET
|
1 |
Price: 1,550.10 AED
Stock: 11
|
| 6 |
57300-96820
df175z-e01
PINION/GEAR SET
|
1 |
Price: 621.76 AED
Stock: 0
|
| 6 |
57300-96820
df175z-e40
PINION/GEAR SET
|
1 |
Price: 621.76 AED
Stock: 0
|
| 6 |
57300-96830
df175tg-e01
PINION/GEAR SET
|
1 | |
| 6 |
57300-96830
df175tg-e40
PINION/GEAR SET
|
1 | |
| 6 |
57300-96840
df175zg-e01
PINION/GEAR SET
|
1 | |
| 6 |
57300-96840
df175zg-e40
PINION/GEAR SET
|
1 | |
| 7-1 |
09181-60004
SHIM (T:0.45)
|
1 |
Price: 22.35 AED
Stock: 10
|
| 7-2 |
09181-60005
SHIM (T:0.50)
|
1 | |
| 7-3 |
09181-60006
SHIM (T:0.55)
|
1 | |
| 7-4 |
09181-60007
SHIM (T:0.60)
|
1 | |
| 7-5 |
09181-60008
SHIM (T:0.65)
|
1 | |
| 7-6 |
09181-60009
SHIM (T:0.70)
|
1 | |
| 7-7 |
09181-60010
SHIM (T:0.75)
|
1 | |
| 7-8 |
09181-60011
SHIM (T:0.80)
|
1 | |
| 7-9 |
09181-60012
SHIM (T:0.85)
|
1 | |
| 7-10 |
09181-60013
SHIM (T:0.90)
|
1 | |
| 8 |
09140-16021
NUT
|
1 |
Price: 5.96 AED
Stock: 20
|
| 9 |
08221-16256
WASHER
|
1 |
Price: 2.98 AED
Stock: 21
|
| 10 |
57500-87861
df175t-e01
SHIM SET, PROP SHAFT REV
|
1 |
Price: 132.59 AED
Stock: 1
|
| 10 |
57500-87861
df175t-e40
SHIM SET, PROP SHAFT REV
|
1 |
Price: 132.59 AED
Stock: 1
|
| 10 |
57500-87861
df175tg-e01
SHIM SET, PROP SHAFT REV
|
1 |
Price: 132.59 AED
Stock: 1
|
| 10 |
57500-87861
df175tg-e40
SHIM SET, PROP SHAFT REV
|
1 |
Price: 132.59 AED
Stock: 1
|
| 10-1 |
09160-35015
df175z-e01
WASHER (35X46X0.6)
PROP SHAFT REV
|
1 | |
| 10-1 |
09160-35015
df175z-e40
WASHER (35X46X0.6)
PROP SHAFT REV
|
1 | |
| 10-1 |
09160-35015
df175zg-e01
WASHER (35X46X0.6)
PROP SHAFT REV
|
1 | |
| 10-1 |
09160-35015
df175zg-e40
WASHER (35X46X0.6)
PROP SHAFT REV
|
1 | |
| 10-2 |
09160-35013
df175z-e01
WASHER (35X46X0.8)
PROP SHAFT REV
|
1 | |
| 10-2 |
09160-35013
df175z-e40
WASHER (35X46X0.8)
PROP SHAFT REV
|
1 | |
| 10-2 |
09160-35013
df175zg-e01
WASHER (35X46X0.8)
PROP SHAFT REV
|
1 | |
| 10-2 |
09160-35013
df175zg-e40
WASHER (35X46X0.8)
PROP SHAFT REV
|
1 | |
| 10-3 |
09160-35010
df175z-e01
WASHER (35X46X1.15)
PROP SHAFT REV
|
1 | |
| 10-3 |
09160-35010
df175z-e40
WASHER (35X46X1.15)
PROP SHAFT REV
|
1 | |
| 10-3 |
09160-35010
df175zg-e01
WASHER (35X46X1.15)
PROP SHAFT REV
|
1 | |
| 10-3 |
09160-35010
df175zg-e40
WASHER (35X46X1.15)
PROP SHAFT REV
|
1 | |
| 10-4 |
09160-35004
df175z-e01
WASHER (35X46X1.2)
PROP SHAFT REV
|
1 | |
| 10-4 |
09160-35004
df175z-e40
WASHER (35X46X1.2)
PROP SHAFT REV
|
1 | |
| 10-4 |
09160-35004
df175zg-e01
WASHER (35X46X1.2)
PROP SHAFT REV
|
1 | |
| 10-4 |
09160-35004
df175zg-e40
WASHER (35X46X1.2)
PROP SHAFT REV
|
1 | |
| 10-5 |
09160-35006
df175z-e01
WASHER (35X46X0.9)
PROP SHAFT REV
|
1 | |
| 10-5 |
09160-35006
df175z-e40
WASHER (35X46X0.9)
PROP SHAFT REV
|
1 | |
| 10-5 |
09160-35006
df175zg-e01
WASHER (35X46X0.9)
PROP SHAFT REV
|
1 | |
| 10-5 |
09160-35006
df175zg-e40
WASHER (35X46X0.9)
PROP SHAFT REV
|
1 | |
| 10-6 |
09160-35002
df175z-e01
WASHER (35X46X1)
PROP SHAFT REV
|
1 | |
| 10-6 |
09160-35002
df175z-e40
WASHER (35X46X1)
PROP SHAFT REV
|
1 | |
| 10-6 |
09160-35002
df175zg-e01
WASHER (35X46X1)
PROP SHAFT REV
|
1 | |
| 10-6 |
09160-35002
df175zg-e40
WASHER (35X46X1)
PROP SHAFT REV
|
1 | |
| 10-7 |
09160-35008
df175z-e01
WASHER (35X46X0.95)
PROP SHAFT REV
|
1 | |
| 10-7 |
09160-35008
df175z-e40
WASHER (35X46X0.95)
PROP SHAFT REV
|
1 | |
| 10-7 |
09160-35008
df175zg-e01
WASHER (35X46X0.95)
PROP SHAFT REV
|
1 | |
| 10-7 |
09160-35008
df175zg-e40
WASHER (35X46X0.95)
PROP SHAFT REV
|
1 | |
| 10-8 |
09160-35003
df175z-e01
WASHER (35X46X1.1)
PROP SHAFT REV
|
1 |
Price: 6.70 AED
Stock: 0
|
| 10-8 |
09160-35003
df175z-e40
WASHER (35X46X1.1)
PROP SHAFT REV
|
1 |
Price: 6.70 AED
Stock: 0
|
| 10-8 |
09160-35003
df175zg-e01
WASHER (35X46X1.1)
PROP SHAFT REV
|
1 |
Price: 6.70 AED
Stock: 0
|
| 10-8 |
09160-35003
df175zg-e40
WASHER (35X46X1.1)
PROP SHAFT REV
|
1 |
Price: 6.70 AED
Stock: 0
|
| 10-9 |
09160-35009
df175z-e01
WASHER (35X46X1.05)
PROP SHAFT REV
|
1 | |
| 10-9 |
09160-35009
df175z-e40
WASHER (35X46X1.05)
PROP SHAFT REV
|
1 | |
| 10-9 |
09160-35009
df175zg-e01
WASHER (35X46X1.05)
PROP SHAFT REV
|
1 | |
| 10-9 |
09160-35009
df175zg-e40
WASHER (35X46X1.05)
PROP SHAFT REV
|
1 | |
| 11 |
09160-75002
WASHER (75X100X2)
FWD GEAR
|
1 |
Price: 64.06 AED
Stock: 6
|
| 11-1 |
08211-30382
df175t-e01
.WASHER (30X38X1.5)
|
1 | |
| 11-1 |
08211-30382
df175t-e40
.WASHER (30X38X1.5)
|
1 | |
| 11-1 |
08211-30382
df175tg-e01
.WASHER (30X38X1.5)
|
1 | |
| 11-1 |
08211-30382
df175tg-e40
.WASHER (30X38X1.5)
|
1 | |
| 11-2 |
09160-30036
df175t-e01
.WASHER (30X38X1.7)
|
1 | |
| 11-2 |
09160-30036
df175t-e40
.WASHER (30X38X1.7)
|
1 | |
| 11-2 |
09160-30036
df175tg-e01
.WASHER (30X38X1.7)
|
1 | |
| 11-2 |
09160-30036
df175tg-e40
.WASHER (30X38X1.7)
|
1 | |
| 11-3 |
09160-30037
df175t-e01
.WASHER (30X38X1.9)
|
1 | |
| 11-3 |
09160-30037
df175t-e40
.WASHER (30X38X1.9)
|
1 | |
| 11-3 |
09160-30037
df175tg-e01
.WASHER (30X38X1.9)
|
1 | |
| 11-3 |
09160-30037
df175tg-e40
.WASHER (30X38X1.9)
|
1 | |
| 11-4 |
09160-30038
df175t-e01
.WASHER (30X38X2.1)
|
1 | |
| 11-4 |
09160-30038
df175t-e40
.WASHER (30X38X2.1)
|
1 | |
| 11-4 |
09160-30038
df175tg-e01
.WASHER (30X38X2.1)
|
1 | |
| 11-4 |
09160-30038
df175tg-e40
.WASHER (30X38X2.1)
|
1 | |
| 11-5 |
08211-30384
df175t-e01
.WASHER (30X38X2.2)
|
1 | |
| 11-5 |
08211-30384
df175t-e40
.WASHER (30X38X2.2)
|
1 | |
| 11-5 |
08211-30384
df175tg-e01
.WASHER (30X38X2.2)
|
1 | |
| 11-5 |
08211-30384
df175tg-e40
.WASHER (30X38X2.2)
|
1 | |
| 11-6 |
09160-30039
df175t-e01
.WASHER (30X38X2.3)
|
1 | |
| 11-6 |
09160-30039
df175t-e40
.WASHER (30X38X2.3)
|
1 | |
| 11-6 |
09160-30039
df175tg-e01
.WASHER (30X38X2.3)
|
1 | |
| 11-6 |
09160-30039
df175tg-e40
.WASHER (30X38X2.3)
|
1 | |
| 11-7 |
09160-30041
df175t-e01
.WASHER (30X38X2.4)
|
1 | |
| 11-7 |
09160-30041
df175t-e40
.WASHER (30X38X2.4)
|
1 | |
| 11-7 |
09160-30041
df175tg-e01
.WASHER (30X38X2.4)
|
1 | |
| 11-7 |
09160-30041
df175tg-e40
.WASHER (30X38X2.4)
|
1 | |
| 11-8 |
08211-30385
df175t-e01
.WASHER (30X38X2.5)
|
1 | |
| 11-8 |
08211-30385
df175t-e40
.WASHER (30X38X2.5)
|
1 | |
| 11-8 |
08211-30385
df175tg-e01
.WASHER (30X38X2.5)
|
1 | |
| 11-8 |
08211-30385
df175tg-e40
.WASHER (30X38X2.5)
|
1 | |
| 11-9 |
09160-30042
df175t-e01
.WASHER (30X38X2.6)
|
1 | |
| 11-9 |
09160-30042
df175t-e40
.WASHER (30X38X2.6)
|
1 | |
| 11-9 |
09160-30042
df175tg-e01
.WASHER (30X38X2.6)
|
1 | |
| 11-9 |
09160-30042
df175tg-e40
.WASHER (30X38X2.6)
|
1 | |
| 11-10 |
09160-30043
df175t-e01
.WASHER (30X38X2.7)
|
1 |
Price: 11.17 AED
Stock: 4
|
| 11-10 |
09160-30043
df175t-e40
.WASHER (30X38X2.7)
|
1 |
Price: 11.17 AED
Stock: 4
|
| 11-10 |
09160-30043
df175tg-e01
.WASHER (30X38X2.7)
|
1 |
Price: 11.17 AED
Stock: 4
|
| 11-10 |
09160-30043
df175tg-e40
.WASHER (30X38X2.7)
|
1 |
Price: 11.17 AED
Stock: 4
|
| 11-11 |
09160-30044
df175t-e01
.WASHER (30X38X2.8)
|
1 | |
| 11-11 |
09160-30044
df175t-e40
.WASHER (30X38X2.8)
|
1 | |
| 11-11 |
09160-30044
df175tg-e01
.WASHER (30X38X2.8)
|
1 | |
| 11-11 |
09160-30044
df175tg-e40
.WASHER (30X38X2.8)
|
1 | |
| 13 |
57500-87852
df175t-e01
SHIM SET, REV GEAR
REV GEAR
|
1 | |
| 13 |
57500-87852
df175t-e40
SHIM SET, REV GEAR
REV GEAR
|
1 | |
| 13 |
57500-87852
df175tg-e01
SHIM SET, REV GEAR
REV GEAR
|
1 | |
| 13 |
57500-87852
df175tg-e40
SHIM SET, REV GEAR
REV GEAR
|
1 | |
| 13-1 |
09181-75018
SHIM (T:0.50)
FWD GEAR
|
1 |
Price: 23.84 AED
Stock: 10
|
| 13-2 |
09181-75019
SHIM (T:0.55)
FWD GEAR
|
1 |
Price: 19.37 AED
Stock: 3
|
| 13-3 |
09181-75012
SHIM (T:0.60)
FWD GEAR
|
1 | |
| 13-4 |
09181-75013
SHIM (T:0.65)
FWD GEAR
|
1 | |
| 13-5 |
09181-75008
SHIM (T:0.70)
FWD GEAR
|
1 | |
| 13-6 |
09181-75014
SHIM (T:0.75)
FWD GEAR
|
1 | |
| 13-7 |
09181-75009
SHIM (T:0.80)
FWD GEAR
|
1 | |
| 13-8 |
09181-75015
SHIM (T:0.85)
FWD GEAR
|
1 | |
| 13-9 |
09181-75010
SHIM (T:0.90)
FWD GEAR
|
1 | |
| 13-10 |
09181-75016
SHIM (T:0.95)
FWD GEAR
|
1 |
Price: 14.15 AED
Stock: 4
|
| 13-11 |
09181-75011
SHIM (T:1.00)
FWD GEAR
|
1 | |
| 14 |
09269-75002
BEARING (75X100X4)
|
1 |
Price: 185.48 AED
Stock: 41
|
| 14-1 |
09181-50013
df175t-e01
.SHIM (T:1.00)
REV GEAR
|
1 | |
| 14-1 |
09181-50013
df175t-e40
.SHIM (T:1.00)
REV GEAR
|
1 | |
| 14-1 |
09181-50013
df175tg-e01
.SHIM (T:1.00)
REV GEAR
|
1 | |
| 14-1 |
09181-50013
df175tg-e40
.SHIM (T:1.00)
REV GEAR
|
1 | |
| 14-2 |
09181-50012
df175t-e01
.SHIM (T:1.10)
REV GEAR
|
1 | |
| 14-2 |
09181-50012
df175t-e40
.SHIM (T:1.10)
REV GEAR
|
1 | |
| 14-2 |
09181-50012
df175tg-e01
.SHIM (T:1.10)
REV GEAR
|
1 | |
| 14-2 |
09181-50012
df175tg-e40
.SHIM (T:1.10)
REV GEAR
|
1 | |
| 14-3 |
09181-50005
df175t-e01
.SHIM (T:1.20)
REV GEAR
|
1 | |
| 14-3 |
09181-50005
df175t-e40
.SHIM (T:1.20)
REV GEAR
|
1 | |
| 14-3 |
09181-50005
df175tg-e01
.SHIM (T:1.20)
REV GEAR
|
1 | |
| 14-3 |
09181-50005
df175tg-e40
.SHIM (T:1.20)
REV GEAR
|
1 | |
| 14-4 |
09181-50006
df175t-e01
.SHIM (T:1.30)
REV GEAR
|
1 | |
| 14-4 |
09181-50006
df175t-e40
.SHIM (T:1.30)
REV GEAR
|
1 | |
| 14-4 |
09181-50006
df175tg-e01
.SHIM (T:1.30)
REV GEAR
|
1 | |
| 14-4 |
09181-50006
df175tg-e40
.SHIM (T:1.30)
REV GEAR
|
1 | |
| 14-5 |
09181-50007
df175t-e01
.SHIM (T:1.40)
REV GEAR
|
1 | |
| 14-5 |
09181-50007
df175t-e40
.SHIM (T:1.40)
REV GEAR
|
1 | |
| 14-5 |
09181-50007
df175tg-e01
.SHIM (T:1.40)
REV GEAR
|
1 | |
| 14-5 |
09181-50007
df175tg-e40
.SHIM (T:1.40)
REV GEAR
|
1 | |
| 14-6 |
09181-50008
df175t-e01
.SHIM (T:1.50)
REV GEAR
|
1 | |
| 14-6 |
09181-50008
df175t-e40
.SHIM (T:1.50)
REV GEAR
|
1 | |
| 14-6 |
09181-50008
df175tg-e01
.SHIM (T:1.50)
REV GEAR
|
1 | |
| 14-6 |
09181-50008
df175tg-e40
.SHIM (T:1.50)
REV GEAR
|
1 | |
| 14-7 |
09181-50009
df175t-e01
.SHIM (T:1.60)
REV GEAR
|
1 | |
| 14-7 |
09181-50009
df175t-e40
.SHIM (T:1.60)
REV GEAR
|
1 | |
| 14-7 |
09181-50009
df175tg-e01
.SHIM (T:1.60)
REV GEAR
|
1 | |
| 14-7 |
09181-50009
df175tg-e40
.SHIM (T:1.60)
REV GEAR
|
1 | |
| 14-8 |
09181-50010
df175t-e01
.SHIM (T:1.70)
REV GEAR
|
1 | |
| 14-8 |
09181-50010
df175t-e40
.SHIM (T:1.70)
REV GEAR
|
1 | |
| 14-8 |
09181-50010
df175tg-e01
.SHIM (T:1.70)
REV GEAR
|
1 | |
| 14-8 |
09181-50010
df175tg-e40
.SHIM (T:1.70)
REV GEAR
|
1 | |
| 15 |
57610-93J20
df175z-e01
SHAFT, PROPELLER
|
1 |
Price: 916.20 AED
Stock: 6
|
| 15 |
57610-93J20
df175z-e40
SHAFT, PROPELLER
|
1 |
Price: 916.20 AED
Stock: 6
|
| 15 |
57610-96J10
df175zg-e01
SHAFT, PROPELLER
|
1 | |
| 15 |
57610-96J10
df175zg-e40
SHAFT, PROPELLER
|
1 | |
| 16 |
57621-93J20
df175z-e01
SHIFTER, CLUTCH DOG
|
1 | |
| 16 |
57621-93J20
df175z-e40
SHIFTER, CLUTCH DOG
|
1 | |
| 16 |
57621-96J10
df175zg-e01
SHIFTER, CLUTCH DOG
|
1 | |
| 16 |
57621-96J10
df175zg-e40
SHIFTER, CLUTCH DOG
|
1 | |
| 17 |
09202-08007
PIN (8X49)
|
1 |
Price: 8.19 AED
Stock: 9
|
| 17 |
57610-93J00
df175t-e01
SHAFT, PROPELLER
|
1 |
Price: 1,191.81 AED
Stock: 19
|
| 17 |
57610-93J00
df175t-e40
SHAFT, PROPELLER
|
1 |
Price: 1,191.81 AED
Stock: 19
|
| 17 |
57610-96J00
df175tg-e01
SHAFT, PROPELLER
|
1 | |
| 17 |
57610-96J00
df175tg-e40
SHAFT, PROPELLER
|
1 | |
| 18 |
57621-93J10
df175t-e01
SHIFTER, CLUTCH DOG
|
1 | |
| 18 |
57621-93J10
df175t-e40
SHIFTER, CLUTCH DOG
|
1 | |
| 18 |
57621-96J00
df175tg-e01
SHIFTER, CLUTCH DOG
|
1 | |
| 18 |
57621-96J00
df175tg-e40
SHIFTER, CLUTCH DOG
|
1 | |
| 18 |
57631-93J00
df175z-e01
PIN, CONNECTOR
|
1 | |
| 18 |
57631-93J00
df175z-e40
PIN, CONNECTOR
|
1 | |
| 18 |
57631-96J00
df175zg-e01
PIN, CONNECTOR
|
1 | |
| 18 |
57631-96J00
df175zg-e40
PIN, CONNECTOR
|
1 | |
| 19 |
09440-52003
SPRING
|
1 |
Price: 5.96 AED
Stock: 17
|
| 20 |
09440-09040
SPRING
|
1 |
Price: 6.70 AED
Stock: 11
|
| 20 |
57631-93J00
df175t-e01
PIN, CONNECTOR
|
1 | |
| 20 |
57631-93J00
df175t-e40
PIN, CONNECTOR
|
1 | |
| 20 |
57631-96J00
df175tg-e01
PIN, CONNECTOR
|
1 | |
| 20 |
57631-96J00
df175tg-e40
PIN, CONNECTOR
|
1 | |
| 21 |
06111-07004
BALL
|
2 |
Price: 2.98 AED
Stock: 22
|
| 22 |
06111-11004
BALL
|
2 |
Price: 2.98 AED
Stock: 19
|
| 23 |
57622-93J00
df175z-e01
SPACER, FWD THRUST
|
1 | |
| 23 |
57622-93J00
df175z-e40
SPACER, FWD THRUST
|
1 | |
| 23 |
57622-93J00
df175zg-e01
SPACER, FWD THRUST
|
1 | |
| 23 |
57622-93J00
df175zg-e40
SPACER, FWD THRUST
|
1 | |
| 24 |
09160-30055
df175z-e01
WASHER (30X47X6)
|
1 | |
| 24 |
09160-30055
df175z-e40
WASHER (30X47X6)
|
1 | |
| 24 |
09160-30055
df175zg-e01
WASHER (30X47X6)
|
1 | |
| 24 |
09160-30055
df175zg-e40
WASHER (30X47X6)
|
1 | |
| 25 |
09160-30056
df175z-e01
WASHER (32X47X3)
|
1 | |
| 25 |
09160-30056
df175z-e40
WASHER (32X47X3)
|
1 | |
| 25 |
09160-30056
df175zg-e01
WASHER (32X47X3)
|
1 | |
| 25 |
09160-30056
df175zg-e40
WASHER (32X47X3)
|
1 | |
| 25 |
09180-25082
df175t-e01
SPACER (25X36.5X9.5)
|
1 |
Price: 22.35 AED
Stock: 18
|
| 25 |
09180-25082
df175t-e40
SPACER (25X36.5X9.5)
|
1 |
Price: 22.35 AED
Stock: 18
|
| 25 |
09180-25082
df175tg-e01
SPACER (25X36.5X9.5)
|
1 |
Price: 22.35 AED
Stock: 18
|
| 25 |
09180-25082
df175tg-e40
SPACER (25X36.5X9.5)
|
1 |
Price: 22.35 AED
Stock: 18
|
| 26 |
09269-30014
df175z-e01
BEARING (30X47X2)
|
1 |
Price: 23.84 AED
Stock: 20
|
| 26 |
09269-30014
df175z-e40
BEARING (30X47X2)
|
1 |
Price: 23.84 AED
Stock: 20
|
| 26 |
09269-30014
df175zg-e01
BEARING (30X47X2)
|
1 |
Price: 23.84 AED
Stock: 20
|
| 26 |
09269-30014
df175zg-e40
BEARING (30X47X2)
|
1 |
Price: 23.84 AED
Stock: 20
|
| 26-1 |
56120-93J03-0EP
df175t-e01
HOUSING, PROP SFT BRG (BLACK)
|
1 | |
| 26-1 |
56120-93J03-0EP
df175t-e40
HOUSING, PROP SFT BRG (BLACK)
|
1 | |
| 26-1 |
56120-93J03-0EP
df175tg-e01
HOUSING, PROP SFT BRG (BLACK)
|
1 | |
| 26-1 |
56120-93J03-0EP
df175tg-e40
HOUSING, PROP SFT BRG (BLACK)
|
1 | |
| 26-2 |
56120-93J03-Y5S
df175t-e01
HOUSING, PROP SFT BRG (WHITE)
|
1 | |
| 26-2 |
56120-93J03-Y5S
df175t-e40
HOUSING, PROP SFT BRG (WHITE)
|
1 | |
| 26-2 |
56120-93J03-Y5S
df175tg-e01
HOUSING, PROP SFT BRG (WHITE)
|
1 | |
| 26-2 |
56120-93J03-Y5S
df175tg-e40
HOUSING, PROP SFT BRG (WHITE)
|
1 | |
| 27 |
09263-30023
.BEARING (30X40X25)
|
2 | |
| 27-1 |
56120-93J13-0EP
df175z-e01
HOUSING, PROP SFT BRG (BLACK)
|
1 | |
| 27-1 |
56120-93J13-0EP
df175z-e40
HOUSING, PROP SFT BRG (BLACK)
|
1 | |
| 27-1 |
56120-93J13-0EP
df175zg-e01
HOUSING, PROP SFT BRG (BLACK)
|
1 | |
| 27-1 |
56120-93J13-0EP
df175zg-e40
HOUSING, PROP SFT BRG (BLACK)
|
1 | |
| 27-2 |
56120-93J13-Y5S
df175z-e01
HOUSING, PROP SFT BRG (WHITE)
|
1 | |
| 27-2 |
56120-93J13-Y5S
df175z-e40
HOUSING, PROP SFT BRG (WHITE)
|
1 | |
| 27-2 |
56120-93J13-Y5S
df175zg-e01
HOUSING, PROP SFT BRG (WHITE)
|
1 | |
| 27-2 |
56120-93J13-Y5S
df175zg-e40
HOUSING, PROP SFT BRG (WHITE)
|
1 | |
| 28 |
09280-00040
.O RING (D:3.1,ID:104.4)
|
1 |
Price: 14.15 AED
Stock: 165
|
| 29 |
09282-30006
.OIL SEAL (30X45X6)
|
2 |
Price: 12.66 AED
Stock: 685
|
| 30 |
09381-40003
.CIRCLIP
|
1 |
Price: 9.68 AED
Stock: 6
|
| 31 |
08113-60100
df175t-e01
.BEARING
|
1 |
Price: 109.50 AED
Stock: 19
|
| 31 |
08113-60100
df175t-e40
.BEARING
|
1 |
Price: 109.50 AED
Stock: 19
|
| 31 |
08113-60100
df175tg-e01
.BEARING
|
1 |
Price: 109.50 AED
Stock: 19
|
| 31 |
08113-60100
df175tg-e40
.BEARING
|
1 |
Price: 109.50 AED
Stock: 19
|
| 32 |
09116-08158
BOLT (8X35)
|
2 |
Price: 14.15 AED
Stock: 3
|
| 32 |
09263-50009
.BEARING (50X65X25)
|
1 |
Price: 186.22 AED
Stock: 63
|
| 33 |
56130-93J01
HOUSING, DRIVE SHAFT BRG
|
1 | |
| 34 |
09280-66004
.O RING (D:3.1,ID:65.4)
|
1 |
Price: 10.43 AED
Stock: 78
|
| 35 |
09282-24004
.OIL SEAL (24X40X7)
|
2 |
Price: 11.17 AED
Stock: 802
|
| 36 |
56140-93J01
df175t-e01
HOUSING, FWD GEAR BRG
|
1 | |
| 36 |
56140-93J01
df175t-e40
HOUSING, FWD GEAR BRG
|
1 | |
| 36 |
56140-93J01
df175tg-e01
HOUSING, FWD GEAR BRG
|
1 | |
| 36 |
56140-93J01
df175tg-e40
HOUSING, FWD GEAR BRG
|
1 | |
| 37 |
04221-08129
df175t-e01
.PIN
|
1 |
Price: 3.72 AED
Stock: 5
|
| 37 |
04221-08129
df175t-e40
.PIN
|
1 |
Price: 3.72 AED
Stock: 5
|
| 37 |
04221-08129
df175tg-e01
.PIN
|
1 |
Price: 3.72 AED
Stock: 5
|
| 37 |
04221-08129
df175tg-e40
.PIN
|
1 |
Price: 3.72 AED
Stock: 5
|
| 37 |
56140-93J10
df175z-e01
HOUSING, REV GEAR BRG
|
1 |
Price: 394.79 AED
Stock: 7
|
| 37 |
56140-93J10
df175z-e40
HOUSING, REV GEAR BRG
|
1 |
Price: 394.79 AED
Stock: 7
|
| 37 |
56140-93J10
df175zg-e01
HOUSING, REV GEAR BRG
|
1 |
Price: 394.79 AED
Stock: 7
|
| 37 |
56140-93J10
df175zg-e40
HOUSING, REV GEAR BRG
|
1 |
Price: 394.79 AED
Stock: 7
|
| 38 |
09262-60002
df175z-e01
.BEARING (60X85X13)
|
1 |
Price: 467.04 AED
Stock: 8
|
| 38 |
09262-60002
df175z-e40
.BEARING (60X85X13)
|
1 |
Price: 467.04 AED
Stock: 8
|
| 38 |
09262-60002
df175zg-e01
.BEARING (60X85X13)
|
1 |
Price: 467.04 AED
Stock: 8
|
| 38 |
09262-60002
df175zg-e40
.BEARING (60X85X13)
|
1 |
Price: 467.04 AED
Stock: 8
|
