Suzuki DF175 – INTAKE MANIFOLD/THROTTLE BODY
INTAKE MANIFOLD/THROTTLE BODY (v2)
Model code: DF175
INTAKE MANIFOLD/THROTTLE BODY
Suzuki DF175 – INTAKE MANIFOLD/THROTTLE BODY
100%
Diagram image
Open full size
Parts list

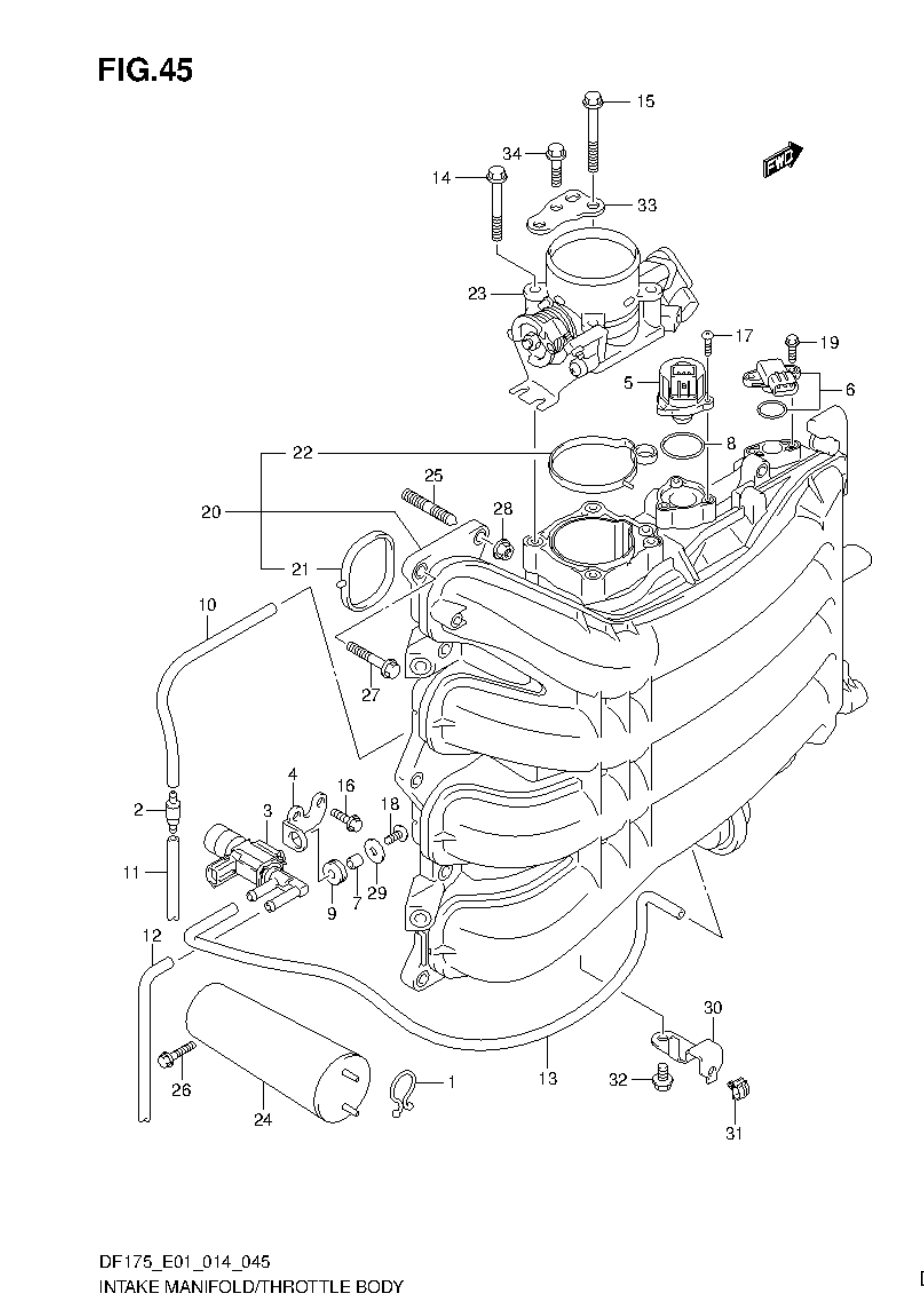

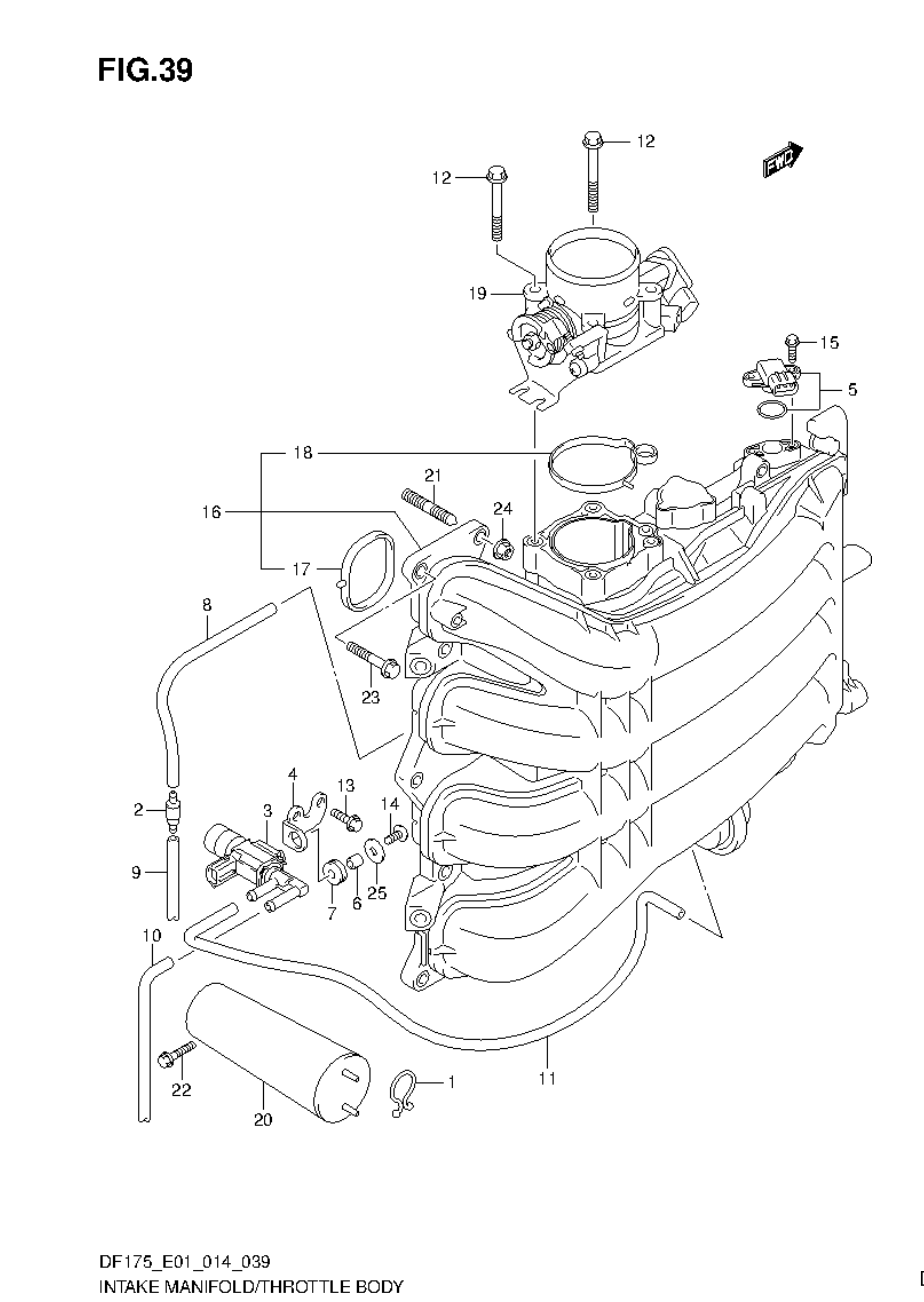

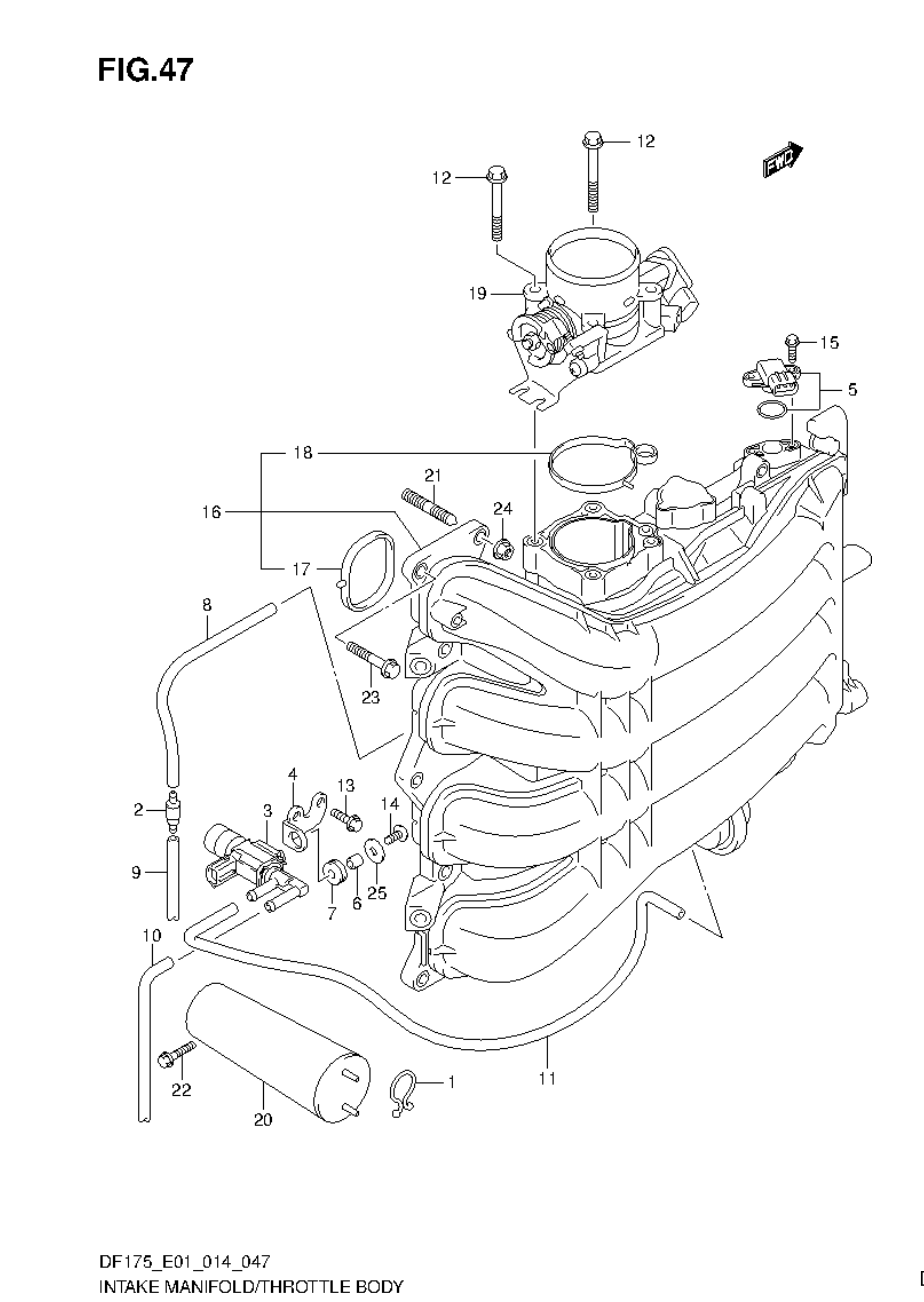

INTAKE MANIFOLD/THROTTLE BODY
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
09408-00008
CLIP (ID:20)
|
1 | |
| 2 |
13162-93J00
VALVE, CHECK
|
1 | |
| 3 |
18117-93J00
VALVE, VACUUM SWITCHING
|
1 | |
| 4 |
18119-96J00
BRACKET, VACUUM SW VALVE
|
1 | |
| 5 |
18137-93J00
df175t-e01
VALVE, IAC
|
1 | |
| 5 |
18137-93J00
df175t-e40
VALVE, IAC
|
1 | |
| 5 |
18137-93J00
df175z-e01
VALVE, IAC
|
1 | |
| 5 |
18137-93J00
df175z-e40
VALVE, IAC
|
1 | |
| 5 |
18590-68H00
SENSOR, MAP
|
1 |
Price: 497.58 AED
Stock: 5
|
| 6 |
09180-05047
SPACER (5.5X8X7.5)
|
1 | |
| 7 |
09320-07015
CUSHION
|
1 | |
| 8 |
09280-29006
df175t-e01
O RING (D:2,ID:29.5)
|
1 | |
| 8 |
09280-29006
df175t-e40
O RING (D:2,ID:29.5)
|
1 | |
| 8 |
09280-29006
df175z-e01
O RING (D:2,ID:29.5)
|
1 | |
| 8 |
09280-29006
df175z-e40
O RING (D:2,ID:29.5)
|
1 | |
| 8 |
09355-35754-601
HOSE (3.5X7.5X601)
L:601->250
|
1 | |
| 12 |
01550-08607
df175tg-e01
BOLT
|
4 |
Price: 14.15 AED
Stock: 8
|
| 12 |
01550-08607
df175tg-e40
BOLT
|
4 |
Price: 14.15 AED
Stock: 8
|
| 12 |
01550-08607
df175zg-e01
BOLT
|
4 |
Price: 14.15 AED
Stock: 8
|
| 12 |
01550-08607
df175zg-e40
BOLT
|
4 |
Price: 14.15 AED
Stock: 8
|
| 13 |
01550-06167
BOLT
|
2 |
Price: 5.21 AED
Stock: 11
|
| 14 |
01550-08557
df175t-e01
BOLT
|
3 | |
| 14 |
01550-08557
df175t-e40
BOLT
|
3 | |
| 14 |
01550-08557
df175z-e01
BOLT
|
3 | |
| 14 |
01550-08557
df175z-e40
BOLT
|
3 | |
| 14 |
02112-05127
SCREW
|
1 | |
| 15 |
01550-08607
df175t-e01
BOLT
|
1 |
Price: 14.15 AED
Stock: 8
|
| 15 |
01550-08607
df175t-e40
BOLT
|
1 |
Price: 14.15 AED
Stock: 8
|
| 15 |
01550-08607
df175z-e01
BOLT
|
1 |
Price: 14.15 AED
Stock: 8
|
| 15 |
01550-08607
df175z-e40
BOLT
|
1 |
Price: 14.15 AED
Stock: 8
|
| 15 |
02162-05207
SCREW
|
2 | |
| 16 |
13110-96J10
df175tg-e01
MANIFOLD, INTAKE
|
1 | |
| 16 |
13110-96J10
df175tg-e40
MANIFOLD, INTAKE
|
1 | |
| 16 |
13110-96J10
df175zg-e01
MANIFOLD, INTAKE
|
1 | |
| 16 |
13110-96J10
df175zg-e40
MANIFOLD, INTAKE
|
1 | |
| 17 |
02112-34167
df175t-e01
SCREW
|
3 | |
| 17 |
02112-34167
df175t-e40
SCREW
|
3 | |
| 17 |
02112-34167
df175z-e01
SCREW
|
3 | |
| 17 |
02112-34167
df175z-e40
SCREW
|
3 | |
| 17 |
13119-96J00
.GASKET, INTAKE MANIFOLD
|
4 | |
| 18 |
13125-96J00
.GASKET, THROTTLE BODY
|
1 | |
| 19 |
13300-96J10
df175tg-e01
BODY ASSY, THROTTLE
|
1 | |
| 19 |
13300-96J10
df175tg-e40
BODY ASSY, THROTTLE
|
1 | |
| 19 |
13300-96J10
df175zg-e01
BODY ASSY, THROTTLE
|
1 | |
| 19 |
13300-96J10
df175zg-e40
BODY ASSY, THROTTLE
|
1 | |
| 20 |
13110-96J00
df175t-e01
MANIFOLD, INTAKE
|
1 | |
| 20 |
13110-96J00
df175t-e40
MANIFOLD, INTAKE
|
1 | |
| 20 |
13110-96J00
df175z-e01
MANIFOLD, INTAKE
|
1 | |
| 20 |
13110-96J00
df175z-e40
MANIFOLD, INTAKE
|
1 | |
| 20 |
13730-96J01
CHAMBER, VACUUM
|
1 | |
| 21 |
01421-08257
STUD BOLT
|
2 | |
| 22 |
01550-06257
BOLT
|
2 | |
| 23 |
01550-08307
BOLT
|
8 |
Price: 12.66 AED
Stock: 4
|
| 23 |
13300-96J00
df175t-e01
BODY ASSY, THROTTLE
|
1 | |
| 23 |
13300-96J00
df175t-e40
BODY ASSY, THROTTLE
|
1 | |
| 23 |
13300-96J00
df175z-e01
BODY ASSY, THROTTLE
|
1 | |
| 23 |
13300-96J00
df175z-e40
BODY ASSY, THROTTLE
|
1 | |
| 24 |
08316-10087
NUT
|
2 |
Price: 3.72 AED
Stock: 11
|
| 25 |
09160-05045
WASHER (5.5X18X1)
|
1 | |
| 30 |
63615-96J00
df175t-e01
BRACKET, THROTTLE CABLE CLAMP
|
1 | |
| 30 |
63615-96J00
df175t-e40
BRACKET, THROTTLE CABLE CLAMP
|
1 | |
| 30 |
63615-96J00
df175z-e01
BRACKET, THROTTLE CABLE CLAMP
|
1 | |
| 30 |
63615-96J00
df175z-e40
BRACKET, THROTTLE CABLE CLAMP
|
1 | |
| 31 |
09403-05312
df175t-e01
CLAMP
|
1 | |
| 31 |
09403-05312
df175t-e40
CLAMP
|
1 | |
| 31 |
09403-05312
df175z-e01
CLAMP
|
1 | |
| 31 |
09403-05312
df175z-e40
CLAMP
|
1 | |
| 32 |
01550-06127
df175t-e01
BOLT
|
1 |
Price: 3.72 AED
Stock: 0
|
| 32 |
01550-06127
df175t-e40
BOLT
|
1 |
Price: 3.72 AED
Stock: 0
|
| 32 |
01550-06127
df175z-e01
BOLT
|
1 |
Price: 3.72 AED
Stock: 0
|
| 32 |
01550-06127
df175z-e40
BOLT
|
1 |
Price: 3.72 AED
Stock: 0
|
| 33 |
13315-96J00
df175t-e01
BRACKET, THROTTLE BODY
|
1 | |
| 33 |
13315-96J00
df175t-e40
BRACKET, THROTTLE BODY
|
1 | |
| 33 |
13315-96J00
df175z-e01
BRACKET, THROTTLE BODY
|
1 | |
| 33 |
13315-96J00
df175z-e40
BRACKET, THROTTLE BODY
|
1 | |
| 34 |
01550-08207
df175t-e01
BOLT
|
3 | |
| 34 |
01550-08207
df175t-e40
BOLT
|
3 | |
| 34 |
01550-08207
df175z-e01
BOLT
|
3 | |
| 34 |
01550-08207
df175z-e40
BOLT
|
3 |
