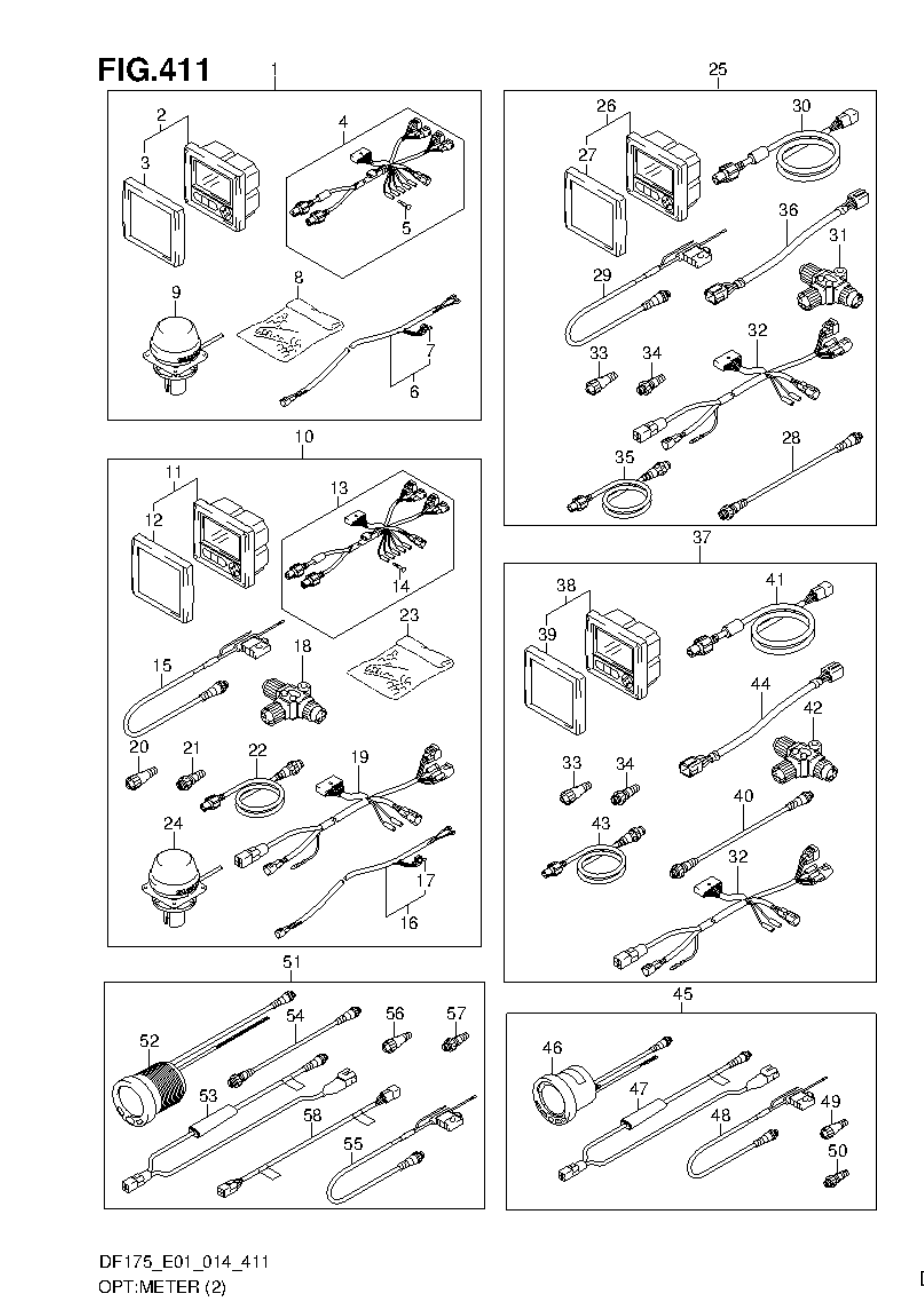

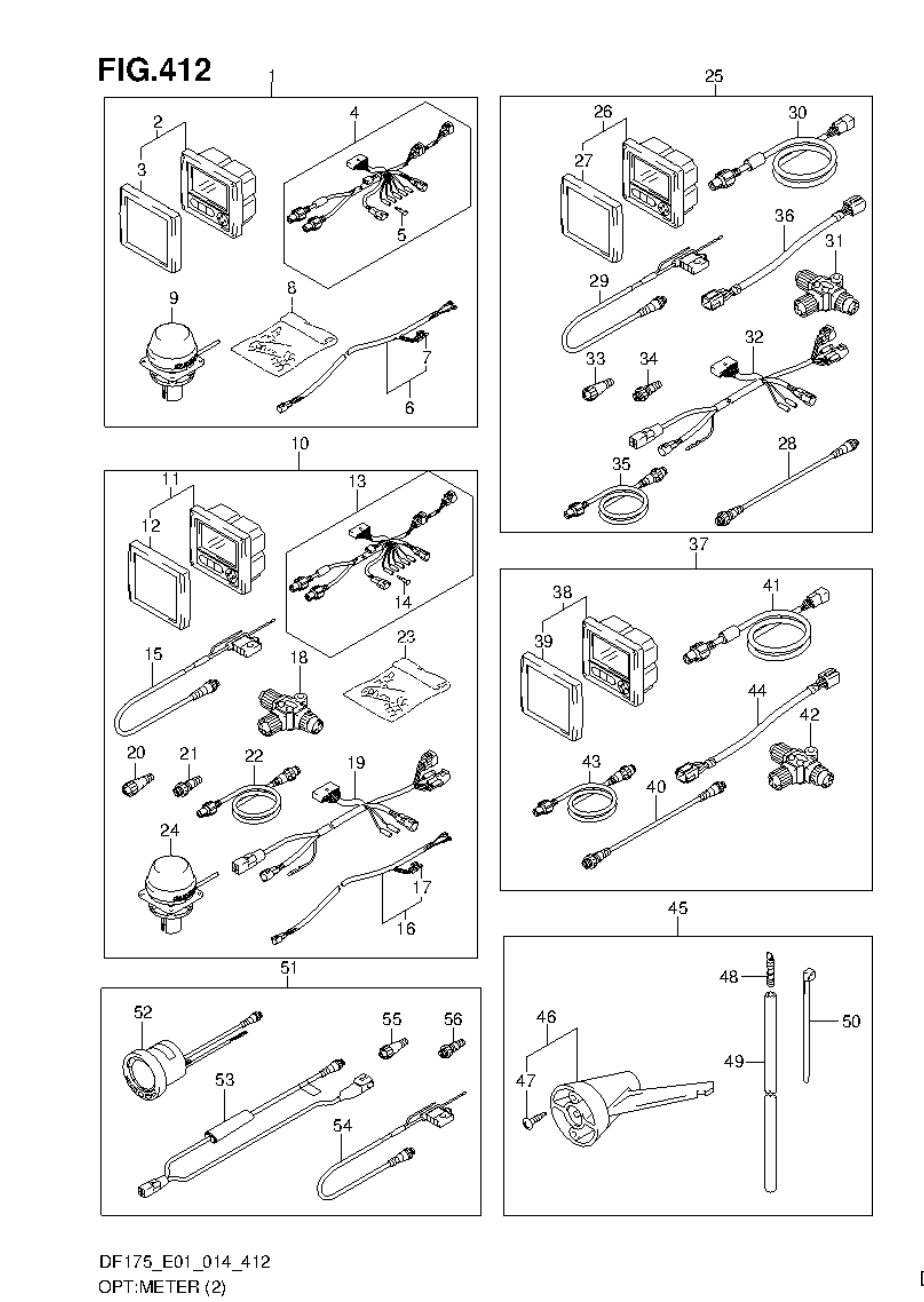

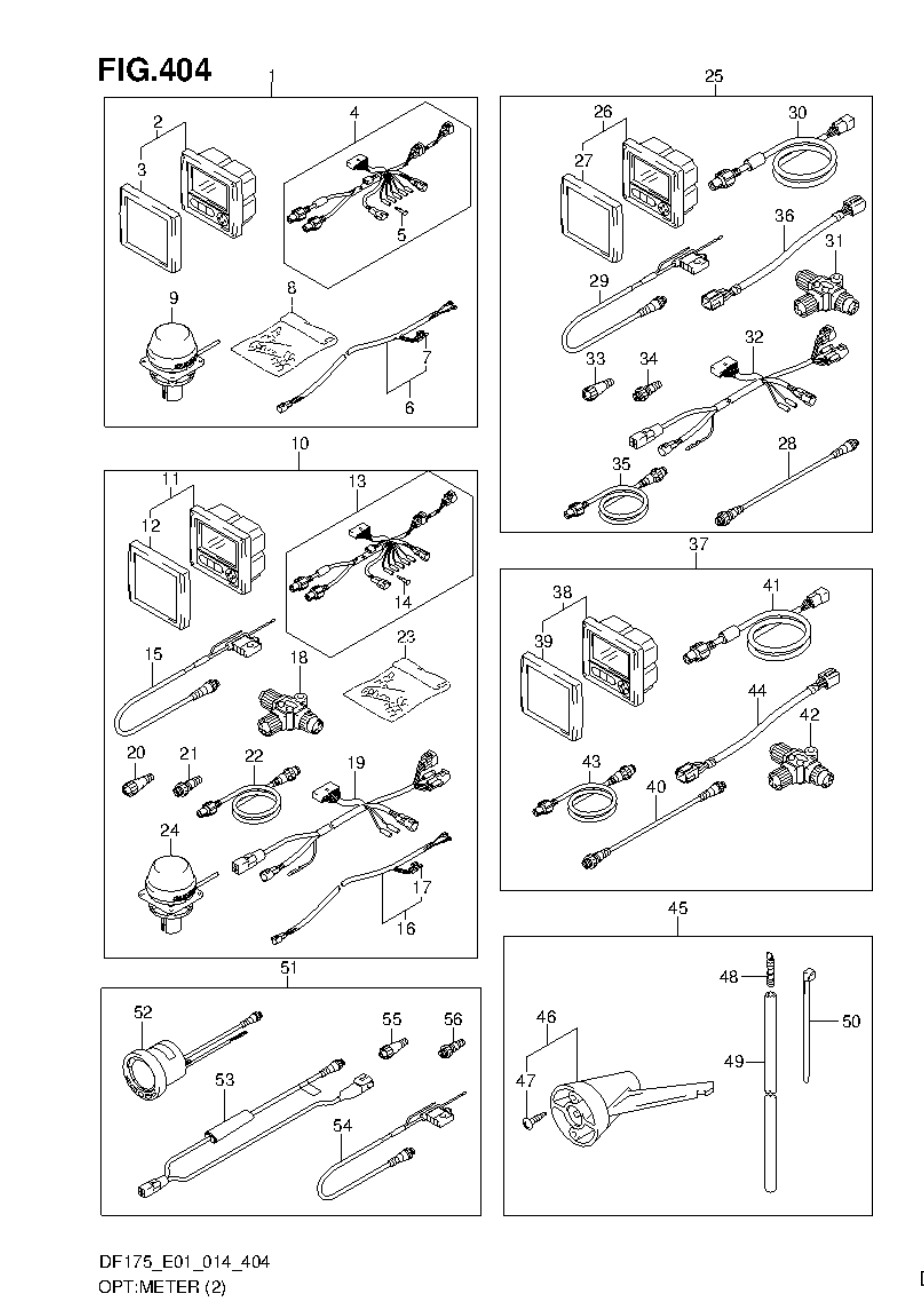

Suzuki DF175 – OPT:METER (2)
OPT:METER (2) (v2)
Model code: DF175
Parts list
OPT:METER (2)
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
34011-87L00
df175t-e01
KIT, SINGLE GAUGE
|
1 | |
| 1 |
34011-87L00
df175t-e40
KIT, SINGLE GAUGE
|
1 | |
| 1 |
34011-87L00
df175z-e01
KIT, SINGLE GAUGE
|
1 | |
| 1 |
34011-87L00
df175z-e40
KIT, SINGLE GAUGE
|
1 | |
| 1 |
34011-87L20
df175tg-e01
KIT, SINGLE GAUGE FOR AP MODEL
|
1 | |
| 1 |
34011-87L20
df175tg-e40
KIT, SINGLE GAUGE FOR AP MODEL
|
1 | |
| 1 |
34011-87L20
df175zg-e01
KIT, SINGLE GAUGE FOR AP MODEL
|
1 | |
| 1 |
34011-87L20
df175zg-e40
KIT, SINGLE GAUGE FOR AP MODEL
|
1 | |
| 2 |
34200-87L12
.GAUGE ASSY, MULTI
|
1 | |
| 3 |
34211-87L00
..COVER, FRONT
|
1 | |
| 4 |
36661-87L00
df175t-e01
.ADAPTER, GAUGE
|
1 | |
| 4 |
36661-87L00
df175t-e40
.ADAPTER, GAUGE
|
1 | |
| 4 |
36661-87L00
df175z-e01
.ADAPTER, GAUGE
|
1 | |
| 4 |
36661-87L00
df175z-e40
.ADAPTER, GAUGE
|
1 | |
| 4 |
36661-87L11
df175tg-e01
.ADAPTER, GAUGE
|
1 | |
| 4 |
36661-87L11
df175tg-e40
.ADAPTER, GAUGE
|
1 | |
| 4 |
36661-87L11
df175zg-e01
.ADAPTER, GAUGE
|
1 | |
| 4 |
36661-87L11
df175zg-e40
.ADAPTER, GAUGE
|
1 | |
| 5 |
36615-96300
..TERMINAL, RESIN
|
5 | |
| 6 |
36663-98J10
.HARNESS,ACTIVE HUB PWR (6M)
|
1 |
Price: 236.13 AED
Stock: 4
|
| 7 |
09481-05501
..FUSE (5A)
|
1 | |
| 8 |
36990-87D00
.TERMINAL & SLEEVE SET
|
1 | |
| 9 |
39950-87L00
.MODULE ASSY, GPS RECEIVER
|
1 | |
| 10 |
34011-87L10
df175t-e01
KIT, DUAL GAUGE
|
1 | |
| 10 |
34011-87L10
df175t-e40
KIT, DUAL GAUGE
|
1 | |
| 10 |
34011-87L10
df175z-e01
KIT, DUAL GAUGE
|
1 | |
| 10 |
34011-87L10
df175z-e40
KIT, DUAL GAUGE
|
1 | |
| 10 |
34011-87L30
df175tg-e01
KIT, DUAL GAUGE FOR AP MODEL
|
1 | |
| 10 |
34011-87L30
df175tg-e40
KIT, DUAL GAUGE FOR AP MODEL
|
1 | |
| 10 |
34011-87L30
df175zg-e01
KIT, DUAL GAUGE FOR AP MODEL
|
1 | |
| 10 |
34011-87L30
df175zg-e40
KIT, DUAL GAUGE FOR AP MODEL
|
1 | |
| 11 |
34200-87L12
.GAUGE ASSY, MULTI
|
2 | |
| 12 |
34211-87L00
..COVER, FRONT
|
2 | |
| 13 |
36661-87L00
df175t-e01
.ADAPTER, GAUGE
|
2 | |
| 13 |
36661-87L00
df175t-e40
.ADAPTER, GAUGE
|
2 | |
| 13 |
36661-87L00
df175z-e01
.ADAPTER, GAUGE
|
2 | |
| 13 |
36661-87L00
df175z-e40
.ADAPTER, GAUGE
|
2 | |
| 13 |
36661-87L11
df175tg-e01
.ADAPTER, GAUGE
|
2 | |
| 13 |
36661-87L11
df175tg-e40
.ADAPTER, GAUGE
|
2 | |
| 13 |
36661-87L11
df175zg-e01
.ADAPTER, GAUGE
|
2 | |
| 13 |
36661-87L11
df175zg-e40
.ADAPTER, GAUGE
|
2 | |
| 14 |
36615-96300
..TERMINAL, RESIN
|
10 | |
| 15 |
36663-88L00
.HARNESS ASSY, NETWORK POWER
|
1 |
Price: 187.71 AED
Stock: 58
|
| 18 |
36664-88L00
.CONNECTOR, BRANCH
|
3 |
Price: 83.43 AED
Stock: 149
|
| 19 |
36665-87L00
.ADAPTER, GAUGE FOR MULTI
|
1 | |
| 20 |
36665-88L00
.UNIT, RESISTOR FEMALE
|
1 |
Price: 35.01 AED
Stock: 54
|
| 21 |
36665-88L10
.UNIT, RESISTOR MALE
|
1 |
Price: 37.99 AED
Stock: 52
|
| 22 |
36666-87L00
.WIRE, NETWORK
|
2 | |
| 25 |
34011-87L40
KIT, SNGL GAUGE & DUAL STATION
|
1 | |
| 28 |
36662-88L00
.WIRE, 25 EXTENSION
|
1 |
Price: 313.59 AED
Stock: 11
|
| 30 |
36664-87L00
.ADAPTER, GAUGE FOR DUAL
|
1 | |
| 36 |
36682-92E00
.WIRE, TRIM METER EXT (L:6500)
|
1 | |
| 37 |
34011-87L50
KIT, DUAL GAUGE & DUAL STATION
|
1 | |
| 41 |
36664-87L00
.ADAPTER, GAUGE FOR DUAL
|
2 | |
| 42 |
36664-88L00
.CONNECTOR, BRANCH
|
2 |
Price: 83.43 AED
Stock: 149
|
| 44 |
36682-92E00
.WIRE, TRIM METER EXT (L:6500)
|
2 | |
| 45 |
34011-88L03
KIT, 4 IN MULTI GAUGE
|
1 | |
| 45 |
34120-98J01
df175tg-e01
KIT, SPEEDOMETER SUB
|
1 | |
| 45 |
34120-98J01
df175tg-e40
KIT, SPEEDOMETER SUB
|
1 | |
| 45 |
34120-98J01
df175zg-e01
KIT, SPEEDOMETER SUB
|
1 | |
| 45 |
34120-98J01
df175zg-e40
KIT, SPEEDOMETER SUB
|
1 | |
| 46 |
34190-95500
df175tg-e01
.SENDER, SPEEDOMETER
|
1 | |
| 46 |
34190-95500
df175tg-e40
.SENDER, SPEEDOMETER
|
1 | |
| 46 |
34190-95500
df175zg-e01
.SENDER, SPEEDOMETER
|
1 | |
| 46 |
34190-95500
df175zg-e40
.SENDER, SPEEDOMETER
|
1 | |
| 46 |
34200-88L02
.GAUGE ASSY, 4 IN MULTI
|
1 | |
| 47 |
03112-06303
df175tg-e01
..SCREW
|
2 | |
| 47 |
03112-06303
df175tg-e40
..SCREW
|
2 | |
| 47 |
03112-06303
df175zg-e01
..SCREW
|
2 | |
| 47 |
03112-06303
df175zg-e40
..SCREW
|
2 | |
| 47 |
34922-88L02
.UNIT, INTERFACE
|
1 | |
| 48 |
55127-87D00
df175tg-e01
.UNION, SPEEDOMETER HOSE
|
1 | |
| 48 |
55127-87D00
df175tg-e40
.UNION, SPEEDOMETER HOSE
|
1 | |
| 48 |
55127-87D00
df175zg-e01
.UNION, SPEEDOMETER HOSE
|
1 | |
| 48 |
55127-87D00
df175zg-e40
.UNION, SPEEDOMETER HOSE
|
1 | |
| 49 |
09355-40805-00B
df175tg-e01
.HOSE (4X8X2000)
L:2000->70
|
1 | |
| 49 |
09355-40805-00B
df175tg-e40
.HOSE (4X8X2000)
L:2000->70
|
1 | |
| 49 |
09355-40805-00B
df175zg-e01
.HOSE (4X8X2000)
L:2000->70
|
1 | |
| 49 |
09355-40805-00B
df175zg-e40
.HOSE (4X8X2000)
L:2000->70
|
1 | |
| 50 |
09407-10404
df175tg-e01
.CLAMP (L:100)
|
2 | |
| 50 |
09407-10404
df175tg-e40
.CLAMP (L:100)
|
2 | |
| 50 |
09407-10404
df175zg-e01
.CLAMP (L:100)
|
2 | |
| 50 |
09407-10404
df175zg-e40
.CLAMP (L:100)
|
2 | |
| 51 |
34011-88L13
df175t-e01
KIT, 2 IN MULTI GAUGE
|
1 | |
| 51 |
34011-88L13
df175t-e40
KIT, 2 IN MULTI GAUGE
|
1 | |
| 51 |
34011-88L13
df175z-e01
KIT, 2 IN MULTI GAUGE
|
1 | |
| 51 |
34011-88L13
df175z-e40
KIT, 2 IN MULTI GAUGE
|
1 | |
| 52 |
34800-88L01
df175t-e01
.GAUGE ASSY, 2 IN MULTI
|
1 | |
| 52 |
34800-88L01
df175t-e40
.GAUGE ASSY, 2 IN MULTI
|
1 | |
| 52 |
34800-88L01
df175z-e01
.GAUGE ASSY, 2 IN MULTI
|
1 | |
| 52 |
34800-88L01
df175z-e40
.GAUGE ASSY, 2 IN MULTI
|
1 | |
| 58 |
36668-88L00
df175t-e01
.WIRE COMP,ADAPTER TO DIAGNS
|
1 | |
| 58 |
36668-88L00
df175t-e40
.WIRE COMP,ADAPTER TO DIAGNS
|
1 | |
| 58 |
36668-88L00
df175z-e01
.WIRE COMP,ADAPTER TO DIAGNS
|
1 | |
| 58 |
36668-88L00
df175z-e40
.WIRE COMP,ADAPTER TO DIAGNS
|
1 |
