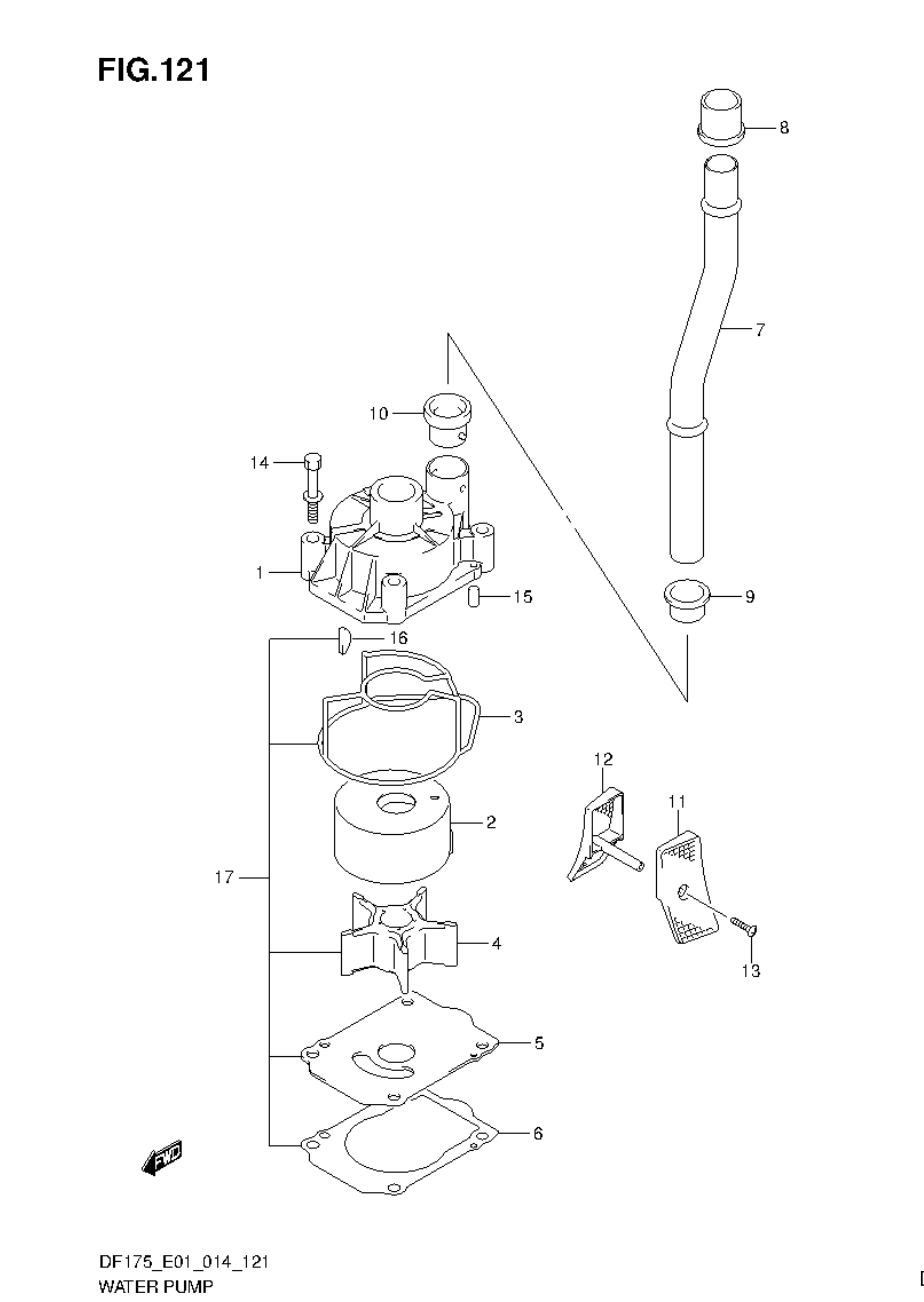

Suzuki DF175 – WATER PUMP
WATER PUMP (v2)
Model code: DF175
Parts list
WATER PUMP
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
17411-96J01
CASE, WATER PUMP
|
1 | |
| 2 |
17413-96J01
df175t-e01
SLEEVE, PUMP CASE
|
1 |
Price: 55.87 AED
Stock: 5
|
| 2 |
17413-96J01
df175tg-e01
SLEEVE, PUMP CASE
|
1 |
Price: 55.87 AED
Stock: 5
|
| 2 |
17413-96J01
df175z-e01
SLEEVE, PUMP CASE
|
1 |
Price: 55.87 AED
Stock: 5
|
| 2 |
17413-96J01
df175zg-e01
SLEEVE, PUMP CASE
|
1 |
Price: 55.87 AED
Stock: 5
|
| 2 |
17413-96J11
df175t-e40
SLEEVE, PUMP CASE
|
1 | |
| 2 |
17413-96J11
df175tg-e40
SLEEVE, PUMP CASE
|
1 | |
| 2 |
17413-96J11
df175z-e40
SLEEVE, PUMP CASE
|
1 | |
| 2 |
17413-96J11
df175zg-e40
SLEEVE, PUMP CASE
|
1 | |
| 3 |
17416-96J00
SEALING, PUMP CASE
|
1 | |
| 4 |
17461-90J01
IMPELLER, WATER PUMP
|
1 |
Price: 106.52 AED
Stock: 87
|
| 5 |
17471-93J02
df175t-e01
PANEL, PUMP CASE UNDER
|
1 | |
| 5 |
17471-93J02
df175tg-e01
PANEL, PUMP CASE UNDER
|
1 | |
| 5 |
17471-93J02
df175z-e01
PANEL, PUMP CASE UNDER
|
1 | |
| 5 |
17471-93J02
df175zg-e01
PANEL, PUMP CASE UNDER
|
1 | |
| 5 |
17471-93J12
df175t-e40
PANEL, PUMP CASE UNDER
|
1 | |
| 5 |
17471-93J12
df175tg-e40
PANEL, PUMP CASE UNDER
|
1 | |
| 5 |
17471-93J12
df175z-e40
PANEL, PUMP CASE UNDER
|
1 | |
| 5 |
17471-93J12
df175zg-e40
PANEL, PUMP CASE UNDER
|
1 | |
| 6 |
17472-93J00
GASKET, PUMP CASE PANEL
|
1 | |
| 7-1 |
17560-96J01
TUBE, WATER (L)
W/TRANSOM(L)
|
1 | |
| 7-2 |
17561-96J11
TUBE, WATER (X)
W/TRANSOM(X)
|
1 | |
| 8 |
17562-93J00
BUSH, WATER TUBE UPPER
|
1 | |
| 9 |
17563-93J00
BUSH, WATER TUBE LOWER
|
1 | |
| 10 |
17564-93J00
BUSH, WATER PUMP CASE
|
1 | |
| 11-1 |
17631-93J20
FILTER, WATER PORT SIDE
|
1 |
Price: 14.90 AED
Stock: 50
|
| 11-2 |
17631-93J30
FILTER, WATER PORT SIDE
OPT
|
1 |
Price: 20.11 AED
Stock: 16
|
| 12-1 |
17632-93J20
FILTER, WATER STBD SIDE
|
1 |
Price: 14.90 AED
Stock: 74
|
| 12-2 |
17632-93J30
FILTER, WATER STBD SIDE
OPT
|
1 |
Price: 24.58 AED
Stock: 14
|
| 13-1 |
09132-04034
SCREW (4X18)
W/TRANSOM(L)
|
1 |
Price: 3.72 AED
Stock: 112
|
| 13-2 |
09132-04034
SCREW (4X18)
W/TRANSOM(X)
|
2 |
Price: 3.72 AED
Stock: 112
|
| 14 |
09116-08131
BOLT (8X45)
|
4 |
Price: 8.19 AED
Stock: 30
|
| 15 |
09202-06031
PIN (6X12)
|
2 |
Price: 5.21 AED
Stock: 19
|
| 16 |
09420-05009
KEY
|
1 |
Price: 16.39 AED
Stock: 10
|
| 17 |
17400-96J02
WATER PUMP REPAIR KIT
OPT
|
1 |
