Suzuki DF175 – SILENCER/RING GEAR COVER
SILENCER/RING GEAR COVER (v2)
Model code: DF175
Parts list

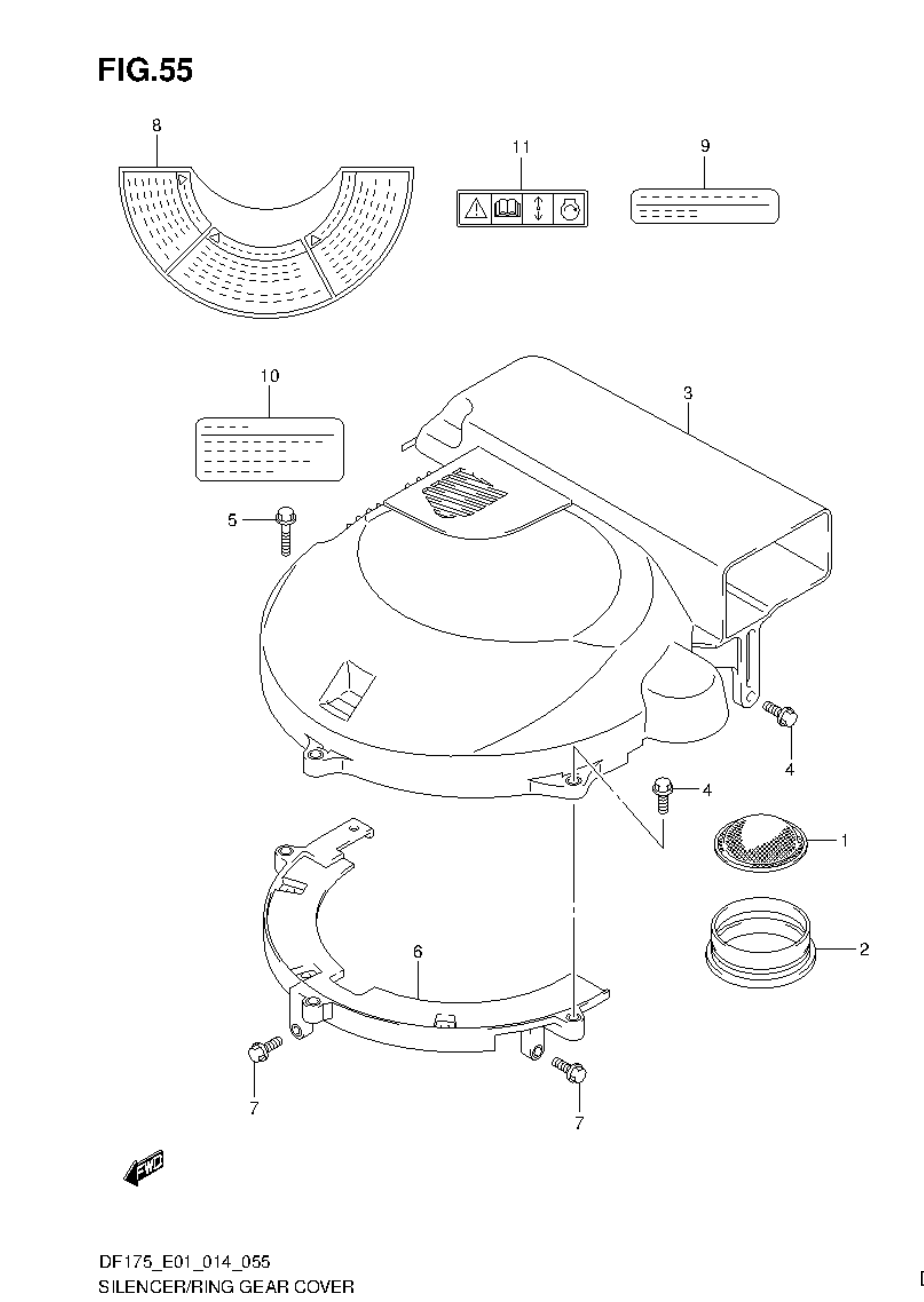

SILENCER/RING GEAR COVER
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
13710-96J00
ARRESTER, FLAME
|
1 | |
| 2 |
13813-96J00
HOLDER, ARRESTER
|
1 | |
| 3 |
13810-96J00
df175t-e01
SILENCER
|
1 | |
| 3 |
13810-96J00
df175t-e40
SILENCER
|
1 | |
| 3 |
13810-96J00
df175z-e01
SILENCER
|
1 | |
| 3 |
13810-96J00
df175z-e40
SILENCER
|
1 | |
| 3 |
13810-96J20
df175tg-e01
SILENCER
|
1 | |
| 3 |
13810-96J20
df175tg-e40
SILENCER
|
1 | |
| 3 |
13810-96J20
df175zg-e01
SILENCER
|
1 | |
| 3 |
13810-96J20
df175zg-e40
SILENCER
|
1 | |
| 4 |
01550-06207
BOLT
|
3 |
Price: 6.70 AED
Stock: 14
|
| 5 |
01550-06307
BOLT
|
1 | |
| 6 |
11510-96J03
COVER, RING GEAR UNDER
|
1 | |
| 7 |
01550-06207
BOLT
|
2 |
Price: 6.70 AED
Stock: 14
|
| 8 |
61472-93E32
df175t-e40
LABEL, MAG COVER
|
1 | |
| 8 |
61472-93E32
df175tg-e40
LABEL, MAG COVER
|
1 | |
| 8 |
61472-93E32
df175z-e40
LABEL, MAG COVER
|
1 | |
| 8 |
61472-93E32
df175zg-e40
LABEL, MAG COVER
|
1 | |
| 8 |
61472-93E40
df175t-e01
LABEL, MAG COVER
|
1 | |
| 8 |
61472-93E40
df175tg-e01
LABEL, MAG COVER
|
1 | |
| 8 |
61472-93E40
df175z-e01
LABEL, MAG COVER
|
1 | |
| 8 |
61472-93E40
df175zg-e01
LABEL, MAG COVER
|
1 | |
| 9 |
61493-96J00
LABEL, CLEARANCE
|
1 | |
| 10 |
61494-96J00
LABEL, OIL
|
1 | |
| 11 |
69711-93E10
LABEL, (S. I. G. P.)
|
1 |
