MX400AA6A0

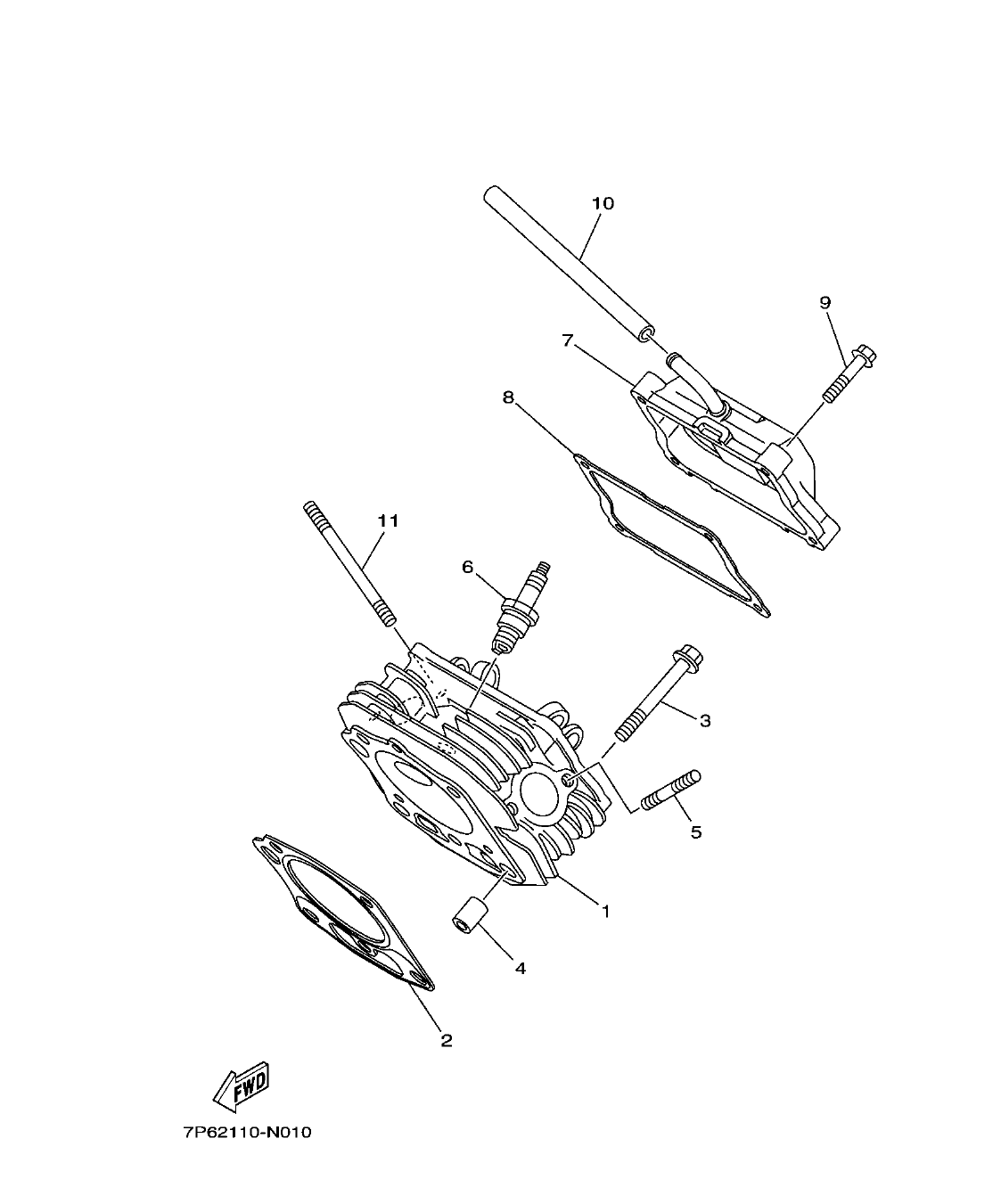

Section 1: CYLINDER (v2)
Model code: 7HP1
Parts list
Section 1
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
7HD-E1111-10
HEAD, CYLINDER 1
|
1 | |
| 2 |
7HD-E1181-00
GASKET, CYLINDER HEAD 1
|
1 | |
| 3 |
95812-10070
BOLT, FLANGE
|
5 | |
| 4 |
99530-14016
PIN, DOWEL
|
2 | |
| 5 |
95622-08618
BOLT, STUD
|
2 | |
| 6 |
94702-00819
PLUG, SPARK (NGK BPR4ES)
|
1 | |
| 7 |
7HD-E1190-10
COVER, CYLINDER HEAD 1
|
1 | |
| 8 |
7HD-E1193-00
GASKET, HEAD COVER 1
|
1 | |
| 9 |
95822-06030
BOLT, FLANGE
|
4 | |
| 10 |
7CT-E1166-00
PIPE, BREATHER 1
|
1 | |
| 11 |
95602-08710
BOLT, STUD
|
2 |
