MX400AA6A0

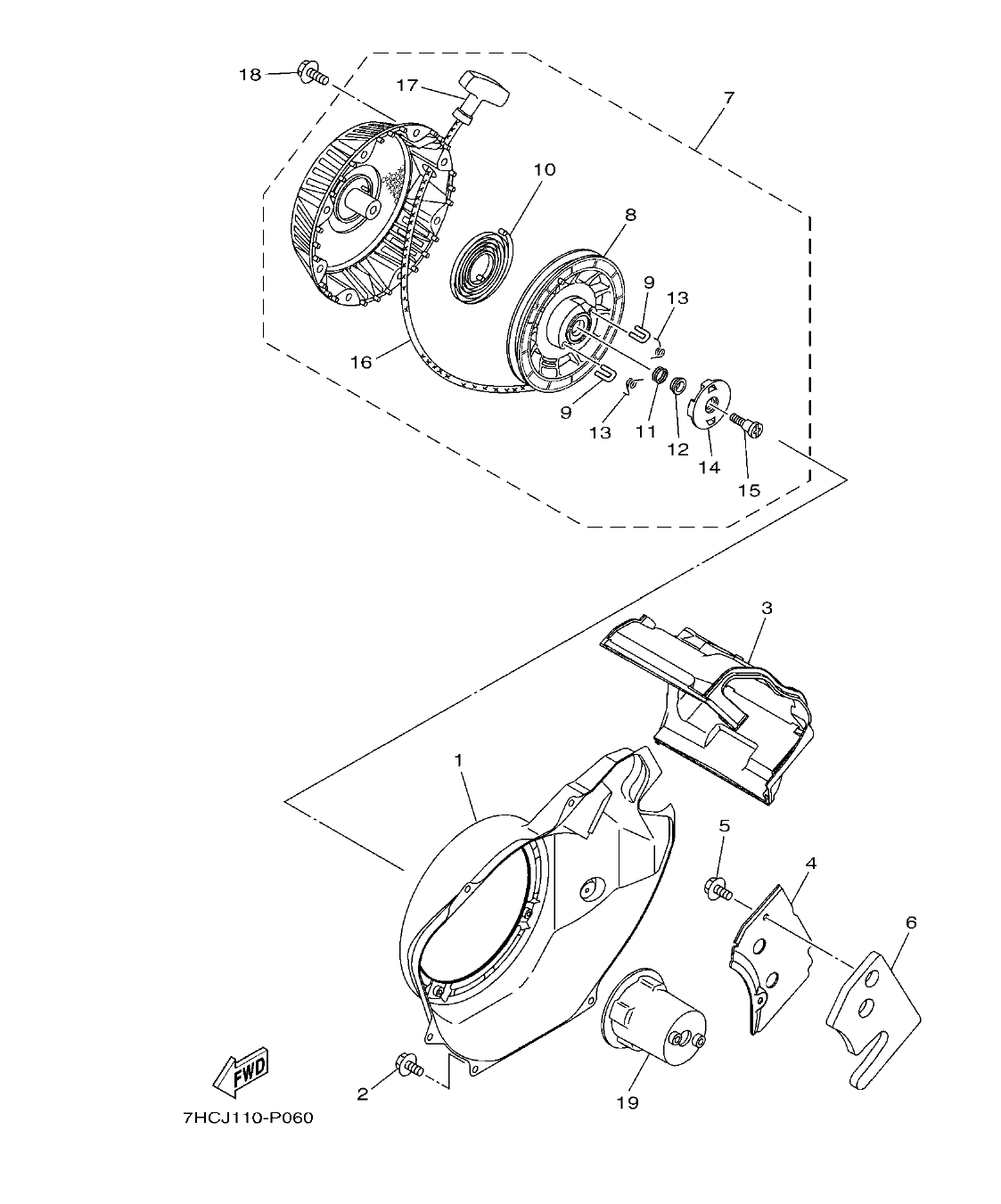

Section 6: AIR SHROUD & STARTER (v2)
Model code: 7HP1
Parts list
Section 6
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
7HD-E2621-00
CASE, FAN
|
1 | |
| 2 |
95802-06012
BOLT, FLANGE
|
6 | |
| 3 |
7HC-E2651-00
AIR SHROUD, CYLINDER 1
|
1 | |
| 4 |
7HC-E2652-00
AIR SHROUD, CYLINDER 2
|
1 | |
| 5 |
95802-06012
BOLT, FLANGE
|
2 | |
| 6 |
7HC-E261H-00
SEAL 1
|
1 | |
| 7 |
7HC-E5710-00
STARTER ASSY
|
1 | |
| 8 |
7HC-E5714-00
.DRUM, SHEAVE
|
1 | |
| 9 |
7HC-E5741-00
.PAWL, DRIVE
|
2 | |
| 10 |
7HC-E5713-00
.SPRING, STARTER
|
1 | |
| 11 |
7HC-E5715-00
.SPRING, FRICTION
|
1 | |
| 12 |
7HC-E5719-00
.WASHER, THRUST
|
1 | |
| 13 |
7HC-E5743-00
.SPRING, RETURN
|
2 | |
| 14 |
7HC-E5716-00
.PLATE, DRIVE
|
1 | |
| 15 |
7HC-E5793-00
.SCREW
|
1 | |
| 16 |
7CT-E5751-00
.WIRE, STARTER
|
1 | |
| 17 |
7CN-E5755-00
.HANDLE, STARTER
|
1 | |
| 18 |
95802-06016
BOLT, FLANGE
|
4 | |
| 19 |
7HC-E5723-00
PULLEY, STARTER
|
1 |
