MX400AA6A0

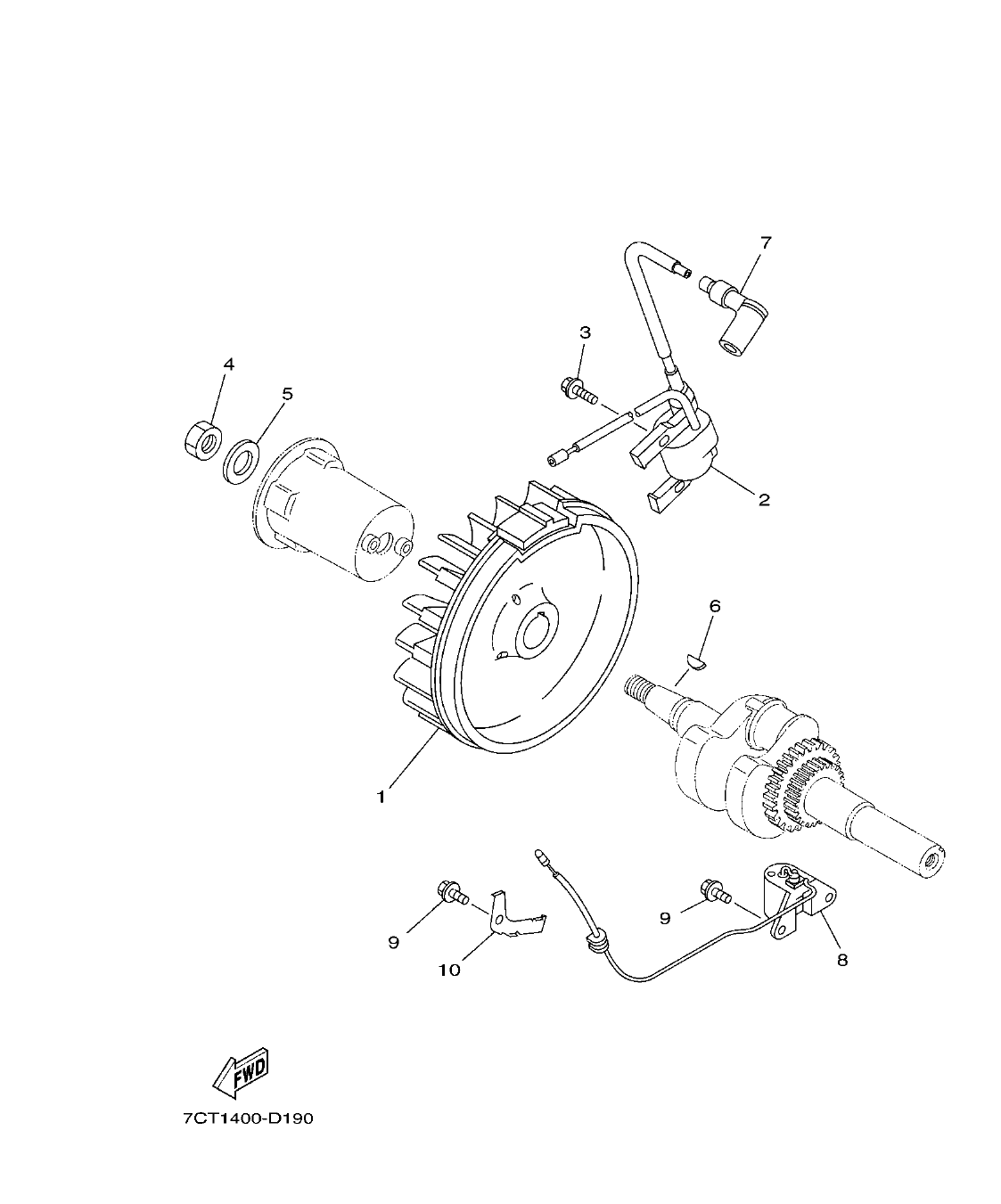

Section 12: TCI MAGNETO (v2)
Model code: 7HP1
Parts list
Section 12
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
7CT-H5650-00
ROTOR ASSY
|
1 | |
| 2 |
7CT-H5640-01
T.C.I. UNIT ASSY
|
1 | |
| 3 |
95880-06020
BOLT, FLANGE
|
2 | |
| 4 |
90170-18391
NUT
|
1 | |
| 5 |
90201-18802
WASHER, PLATE
|
1 | |
| 6 |
90280-04801
KEY, WOODRUFF
|
1 | |
| 7 |
7CN-H2370-00
PLUG CAP ASSY
|
1 | |
| 8 |
7HD-H5720-00
OIL LEVEL GAUGE ASSY
|
1 | |
| 9 |
95822-06012
BOLT, FLANGE
|
3 | |
| 10 |
7CN-H5724-10
CLAMP
|
1 |
