MX400AA6A0

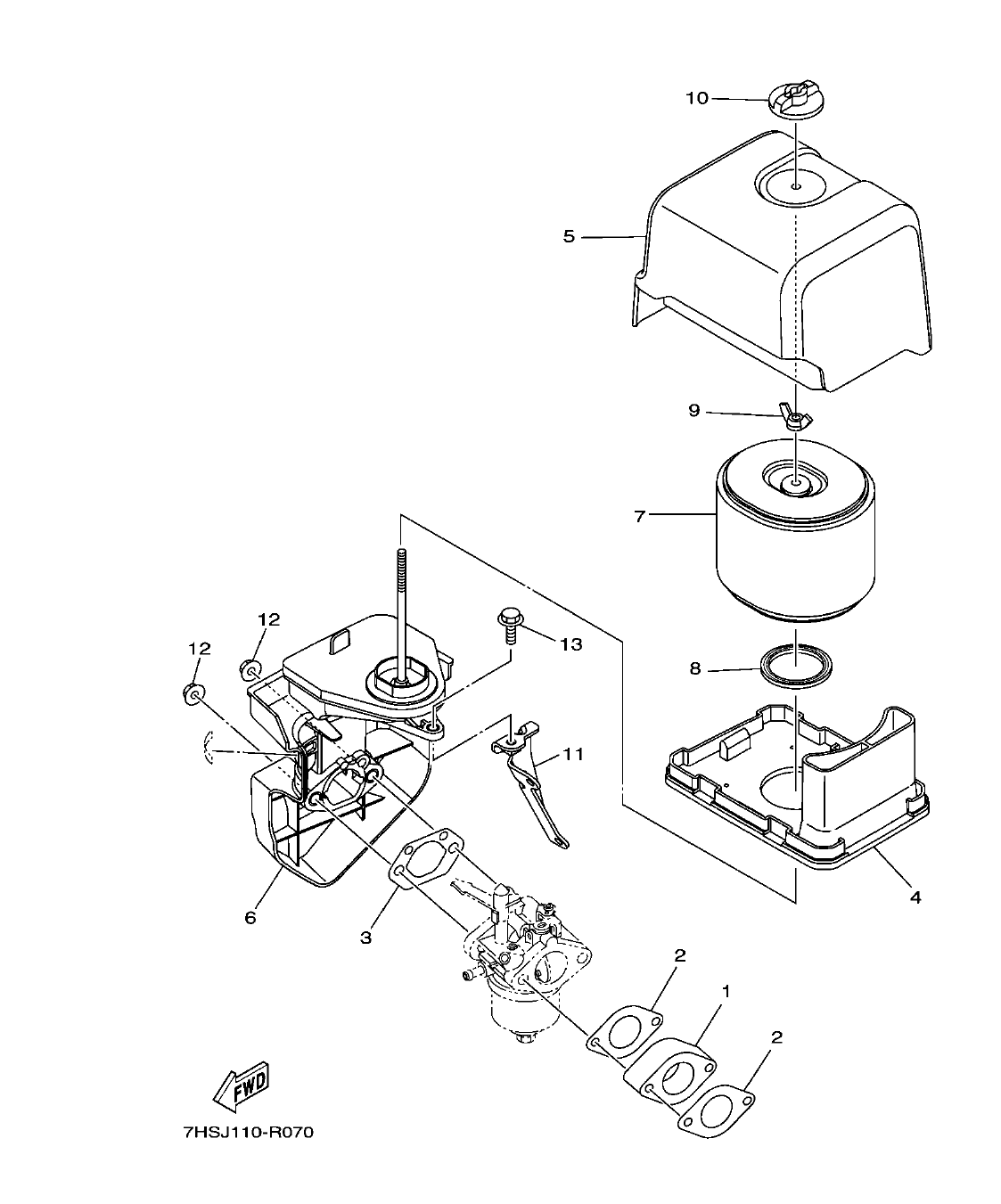

Section 7: INTAKE (v2)
Model code: 7HP1
Parts list
Section 7
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
7CT-E3596-00
JOINT, CARBURETOR 2
|
1 | |
| 2 |
7CT-E3557-00
GASKET
|
2 | |
| 3 |
7HC-E3567-00
GASKET
|
1 | |
| 4 |
7HC-E4411-00
CASE, AIR CLEANER 1
|
1 | |
| 5 |
7HC-E4412-00
CAP, CLEANER CASE 1
|
1 | |
| 6 |
7HC-E4430-01
DUCT ASSY
|
1 | |
| 7 |
7HC-E4450-00
ELEMENT ASSY, AIR CLEANER
|
1 | |
| 8 |
7HC-E4457-00
SEAL
|
1 | |
| 9 |
90175-06809
NUT, WING
|
1 | |
| 10 |
7HC-E4439-00
NUT
|
1 | |
| 11 |
7HP-E4499-00
STAY 2
|
1 | |
| 12 |
95702-08500
NUT, FLANGE
|
2 |
6.70 AED
Check price & stock on WhatsApp
|
| 13 |
95802-06016
BOLT, FLANGE
|
1 |
