YZFR1BC

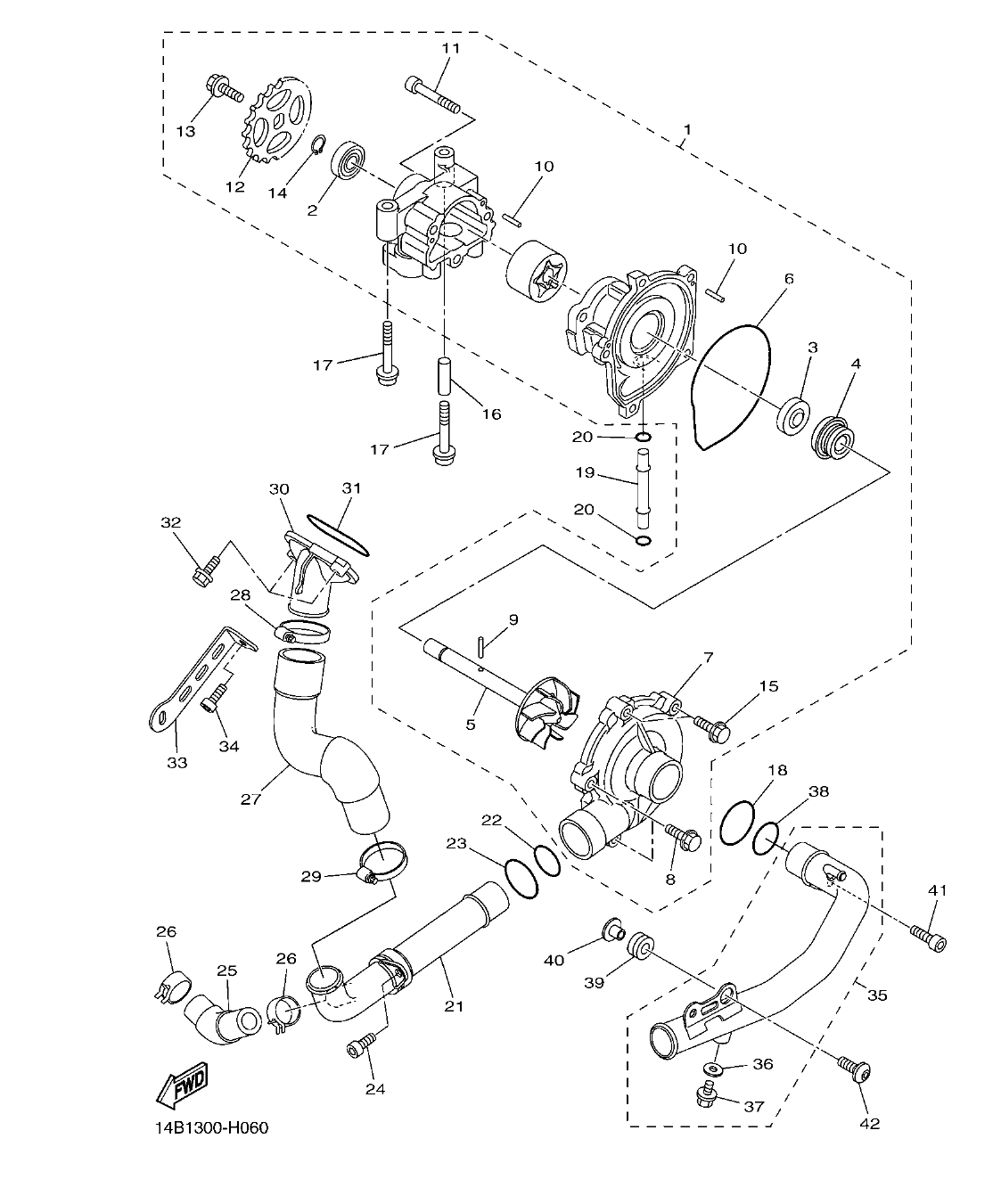

Section 6: WATER PUMP (v2)
Model code: 1KBC
Parts list
Section 6
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
14B-12420-00
WATER PUMP ASSY
|
1 | |
| 2 |
93306-00106
.BEARING
|
1 | |
| 3 |
14B-13338-00
.SEAL
|
1 |
34.26 AED
Check price & stock on WhatsApp
|
| 4 |
4C8-12438-00
.SEAL, MECHANICAL
|
1 | |
| 5 |
14B-12450-00
.IMPELLER SHAFT ASSY
|
1 |
131.10 AED
Check price & stock on WhatsApp
|
| 6 |
4XV-12439-00
.O-RING
|
1 |
22.35 AED
Check price & stock on WhatsApp
|
| 7 |
14B-12422-00
.COVER, HOUSING
|
1 | |
| 8 |
95022-06025
.BOLT, FLANGE
|
3 | |
| 9 |
93603-17070
.PIN, DOWEL
|
1 | |
| 10 |
93603-12007
.PIN, DOWEL
|
4 | |
| 11 |
91312-06045
.BOLT
|
3 | |
| 12 |
14B-13355-00
.SPROCKET, DRIVEN
|
1 | |
| 13 |
90105-06066
.BOLT, FLANGE
|
1 | |
| 14 |
99009-12400
.CIRCLIP
|
1 | |
| 15 |
95022-06020
.BOLT, FLANGE
|
2 |
2.98 AED
Check price & stock on WhatsApp
|
| 16 |
91808-30031
PIN, DOWEL
|
1 | |
| 17 |
90110-06167
BOLT, HEXAGON SOCKET HEAD
|
2 | |
| 18 |
93210-357A2
O-RING
|
1 |
4.00 AED
Check price & stock on WhatsApp
|
| 19 |
4XV-12485-00
PIPE 5
|
1 | |
| 20 |
93210-06667
O-RING
|
2 | |
| 21 |
14B-12481-00
PIPE 1
|
1 |
255.49 AED
Check price & stock on WhatsApp
|
| 22 |
93210-235A1
O-RING
|
1 | |
| 23 |
93210-27370
O-RING
|
1 | |
| 24 |
90110-06182
BOLT, HEXAGON SOCKET HEAD
|
1 | |
| 25 |
14B-12588-00
HOSE 5
|
1 |
37.99 AED
Check price & stock on WhatsApp
|
| 26 |
90467-200A0
CLIP
|
2 | |
| 27 |
14B-12576-00
HOSE 1
|
1 |
56.61 AED
Check price & stock on WhatsApp
|
| 28 |
90450-38040
HOSE CLAMP ASSY
|
1 |
18.62 AED
Check price & stock on WhatsApp
|
| 29 |
90450-35001
HOSE CLAMP ASSY
|
1 |
13.41 AED
Check price & stock on WhatsApp
|
| 30 |
14B-12469-10
JOINT 1
|
1 |
122.91 AED
Check price & stock on WhatsApp
|
| 31 |
93210-46044
O-RING
|
1 | |
| 32 |
95024-06025
BOLT, FLG.(SMALL HEAD)
|
2 | |
| 33 |
14B-12637-00
STAY 1
|
1 |
28.31 AED
Check price & stock on WhatsApp
|
| 34 |
91314-06012
BOLT, HEXAGON SOCKET HEAD
|
1 | |
| 35 |
14B-12484-00
PIPE 4
|
1 |
316.57 AED
Check price & stock on WhatsApp
|
| 36 |
90430-06014
.GASKET
|
1 | |
| 37 |
90153-06002
.SCREW, HEXAGON
|
1 | |
| 38 |
93210-235A1
O-RING
|
1 | |
| 39 |
90480-12010
GROMMET
|
1 | |
| 40 |
90387-06112
COLLAR
|
1 | |
| 41 |
90110-06182
BOLT, HEXAGON SOCKET HEAD
|
1 | |
| 42 |
90149-06022
SCREW
|
1 |
