YZFR1BC

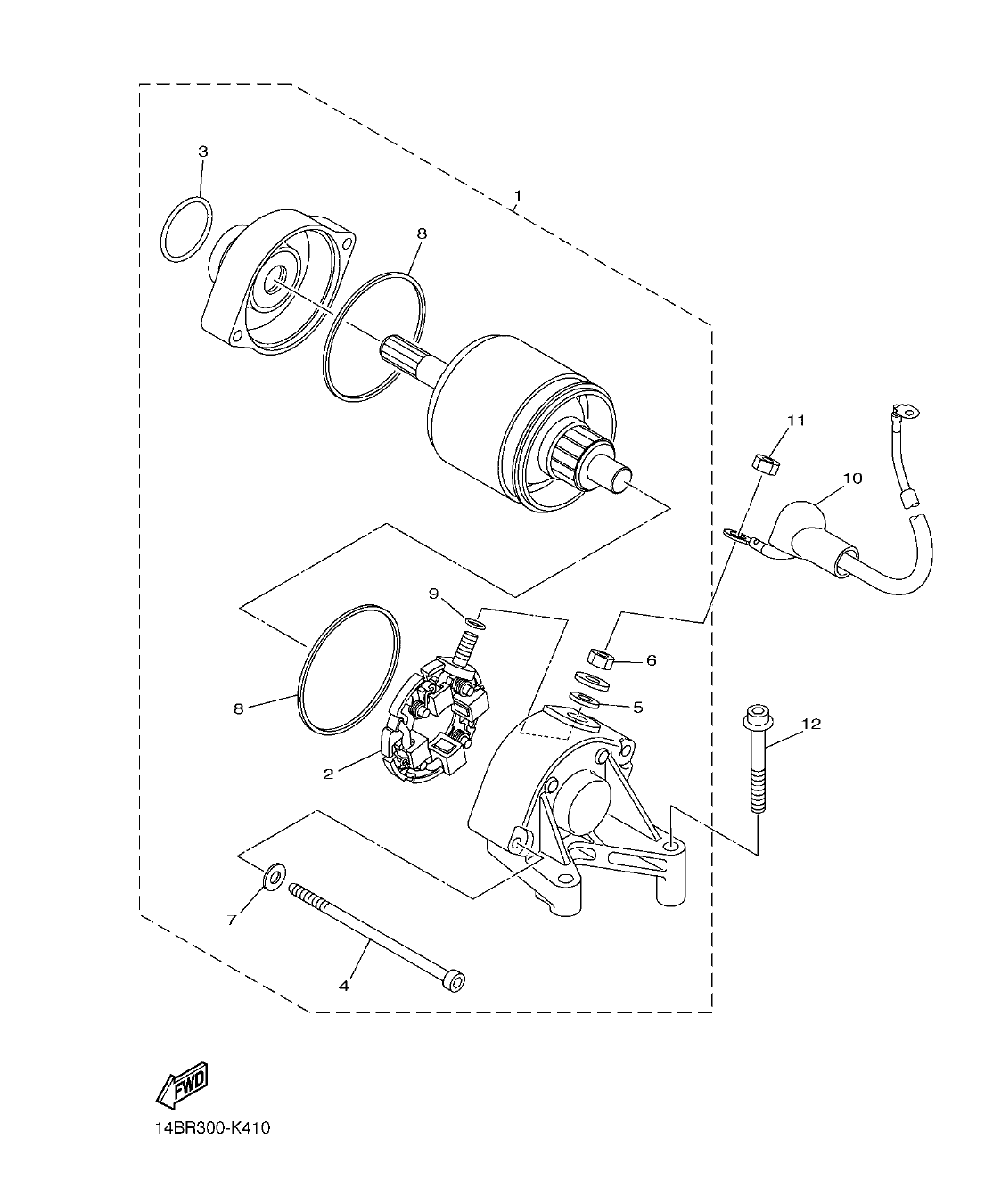

Section 41: STARTING MOTOR (v2)
Model code: 1KBC
Parts list
Section 41
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
14B-81890-00
MOTOR ASSY
|
1 | |
| 2 |
4C8-81801-01
.BRUSH SET
|
1 | |
| 3 |
93210-25711
.O-RING
|
1 |
6.70 AED
Check price & stock on WhatsApp
|
| 4 |
4C8-81846-00
.SCREW
|
2 | |
| 5 |
8FA-8181L-00
.WASHER, PLAIN
|
1 | |
| 6 |
95302-06700
.NUT
|
1 | |
| 7 |
90201-05021
.WASHER, PLATE
|
2 | |
| 8 |
4C8-81861-00
.GASKET
|
2 | |
| 9 |
93210-06001
.O-RING
|
1 | |
| 10 |
14B-8183G-10
CORD COMP.
|
1 | |
| 11 |
95302-06700
NUT
|
1 | |
| 12 |
90109-06016
BOLT
|
2 |
