YZFR1BC

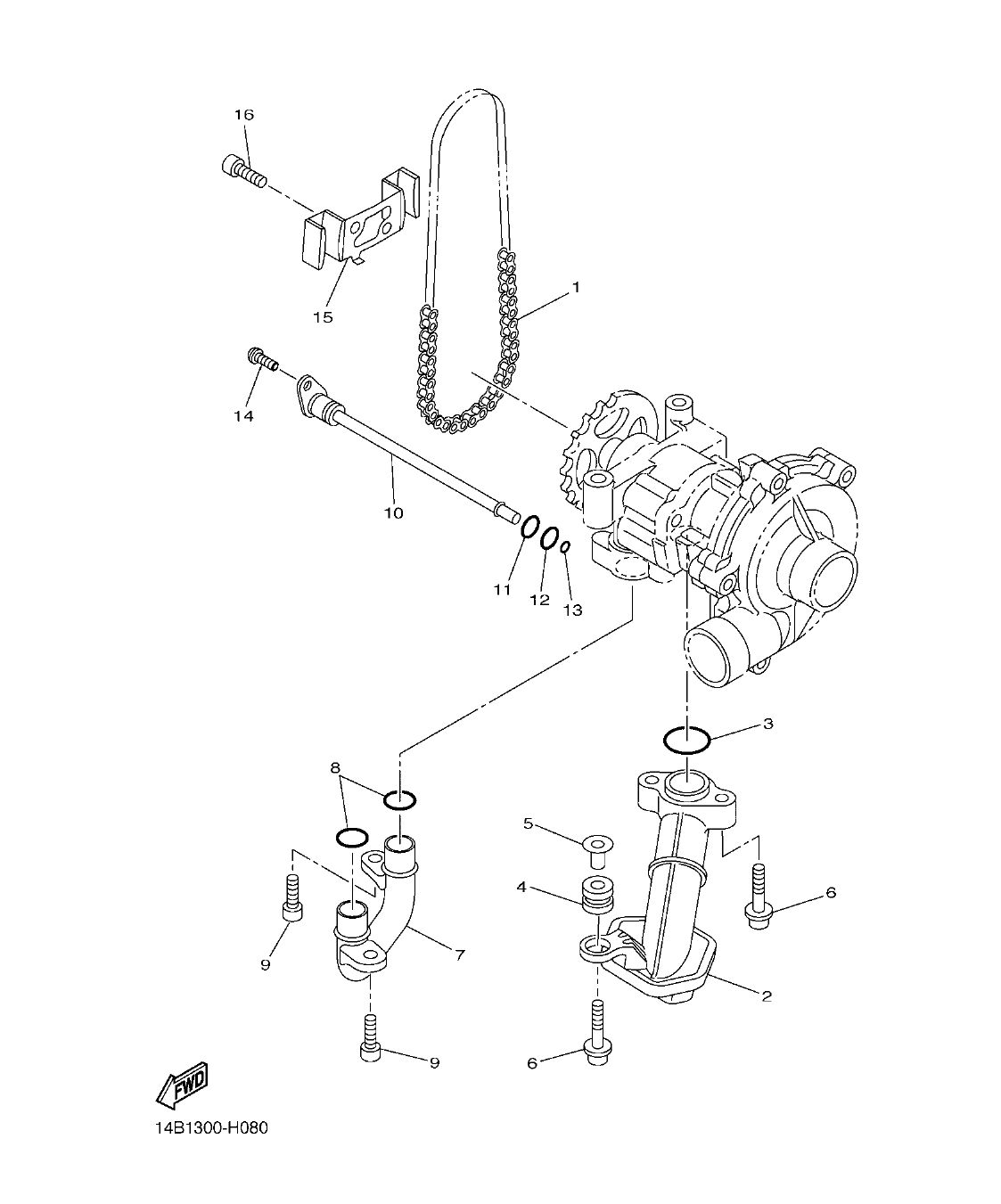

Section 8: OIL PUMP (v2)
Model code: 1KBC
Parts list
Section 8
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
94580-31082
CHAIN (DID25HT 82LE)
|
1 | |
| 2 |
14B-13410-00
STRAINER HOUSING ASSY
|
1 | |
| 3 |
93210-22M93
O-RING
|
1 |
12.00 AED
Check price & stock on WhatsApp
|
| 4 |
90480-13010
GROMMET
|
1 | |
| 5 |
5VY-13117-10
COLLAR, DISTANCE
|
1 | |
| 6 |
90110-06173
BOLT, HEXAGON SOCKET HEAD
|
3 | |
| 7 |
14B-13416-00
PIPE, OIL 1
|
1 | |
| 8 |
93210-14003
O-RING
|
2 | |
| 9 |
90110-06182
BOLT, HEXAGON SOCKET HEAD
|
2 | |
| 10 |
14B-1316E-00
PIPE, DELIVERY 5
|
1 | |
| 11 |
93210-12010
O-RING
|
1 | |
| 12 |
93210-09525
O-RING
|
1 | |
| 13 |
93210-06667
O-RING
|
1 | |
| 14 |
90149-06158
SCREW
|
1 | |
| 15 |
14B-13898-00
HOLDER
|
1 | |
| 16 |
90110-06182
BOLT, HEXAGON SOCKET HEAD
|
2 |
