YZFR1BC
Section 45: TAILLIGHT (v2)
Model code: 1KBC

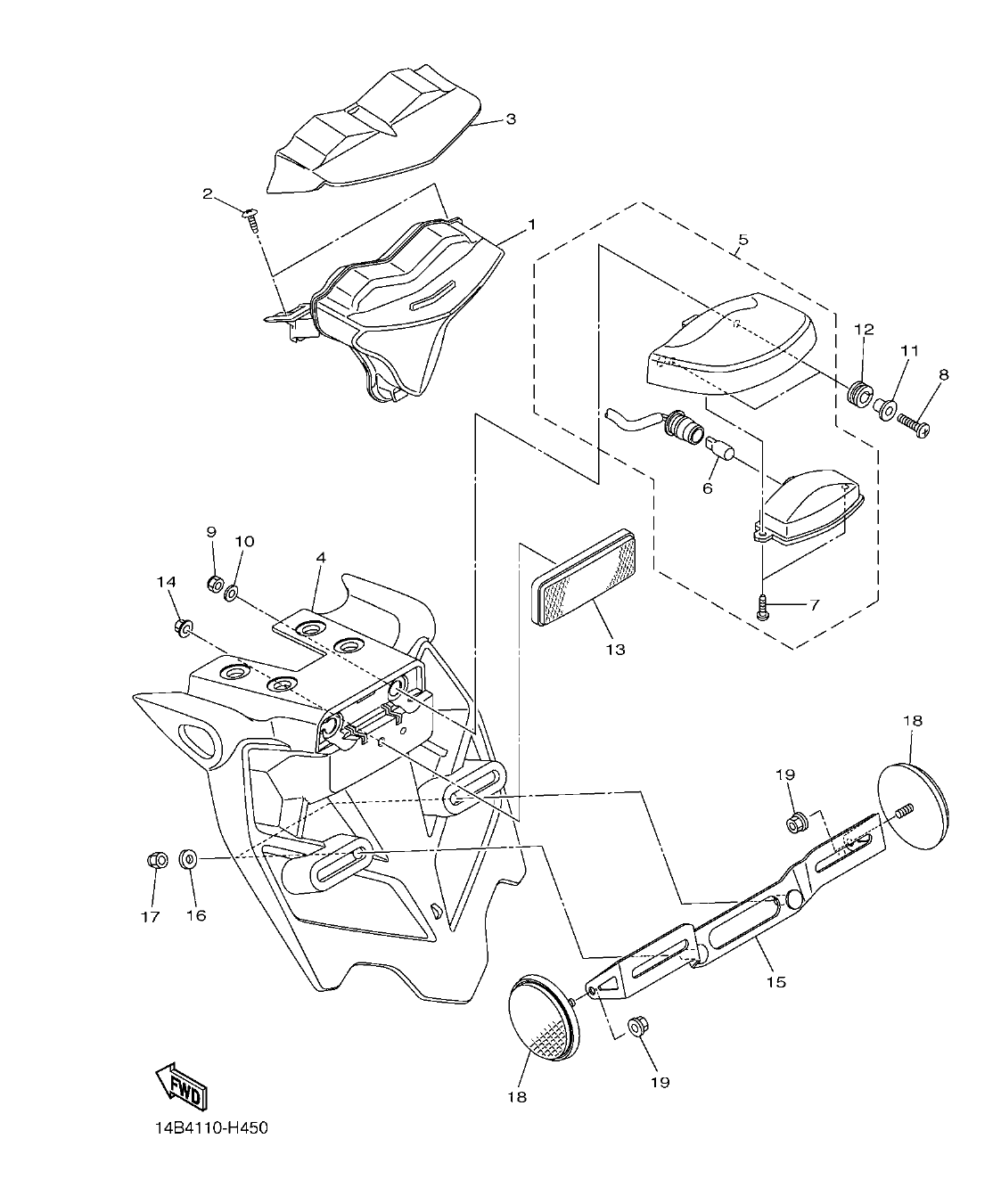

Parts list
Section 45
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
14B-84710-10
TAILLIGHT UNIT ASSY
|
1 | |
| 2 |
97702-50014
SCREW, TAPPING
|
2 | |
| 3 |
14B-84516-00
COVER, TAILLIGHT
|
1 | |
| 4 |
14B-21629-01
GUARD, MUD
|
1 | |
| 5 |
5VX-84745-01
LICENCE LIGHT UNIT ASSY
|
1 | |
| 6 |
4HC-84744-00
.BULB (12V-5W)
|
1 | |
| 7 |
97706-04012
.SCREW, TAPPING
|
2 | |
| 8 |
98902-05020
SCREW, BIND
|
2 | |
| 9 |
95602-05100
NUT, U
|
2 | |
| 10 |
92907-05200
WASHER
|
2 |
2.98 AED
Check price & stock on WhatsApp
|
| 11 |
90387-05003
COLLAR
|
2 | |
| 12 |
90480-11009
GROMMET
|
2 | |
| 13 |
3Y6-85130-02
REAR REFLECTOR ASSY
|
1 | |
| 14 |
95602-05200
NUT, SELF-LOCKING
|
1 | |
| 15 |
14B-84751-00
BRACKET, LICENSE
|
1 | |
| 16 |
92902-06600
WASHER, PLATE
|
2 | |
| 17 |
95602-06100
NUT, U
|
2 | |
| 18 |
449-85131-02
REFLECTOR, REAR 1
|
2 | |
| 19 |
95702-05500
NUT, FLANGE
|
2 |
